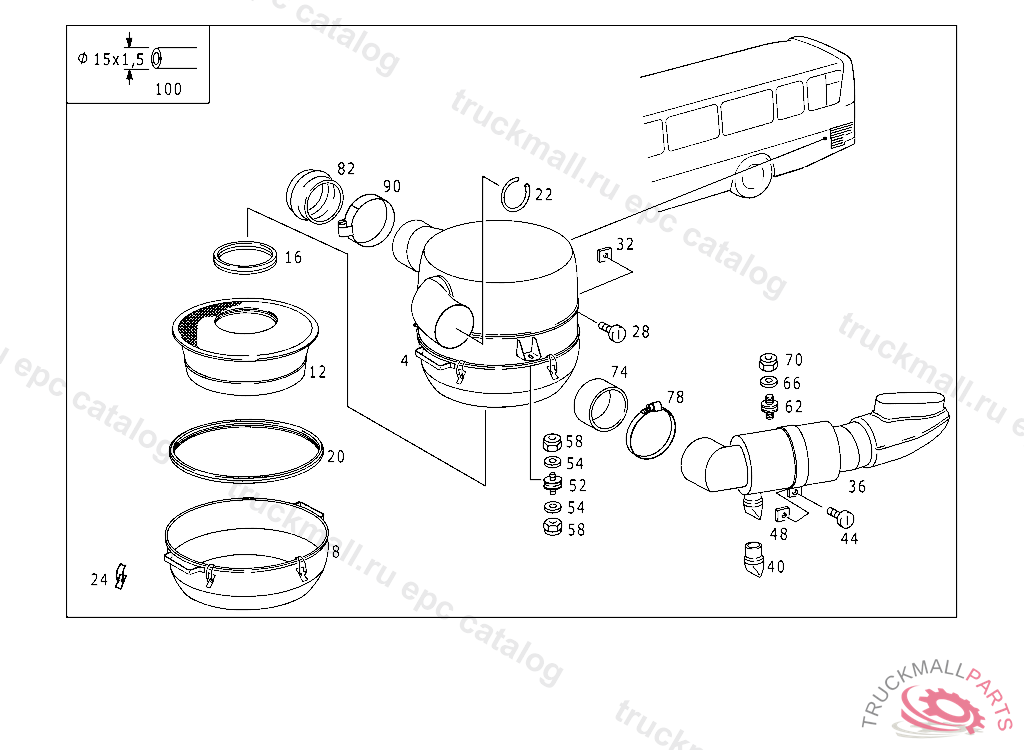

Поз.
Артикул
Описание
4
AIR CLEANER OIL BATH
8
FILTER BOWL T0 010 094 40 02
12
FILTER ELEMENT
16
GASKET INSIDE
20
GASKET OUTSIDE
22
SNAP RING DIA., 150 MM
24
FASTENER
28
SCREW CABLE CONNECTOR TO BRACKET
32
NUTTO 345 094 81 02
36
AIR CLEANER CYCLONE
40
VALVE
44
SCREW SHIFT CASE TO SLOTTED GATE
48
NUT AIR CLEANER ELEMENT, Replaced By: N000000004429
48
NUT AIR CLEANER ELEMENT
52
RUBBER BUFFER
54
WASHER , Replaced By: N000125008443
54
WASHER EXHAUST MUFFLER TO STRAP
58
NUT , Replaced By: N913004008001
62
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
66
WASHER , Replaced By: N000125008443
66
WASHER EXHAUST MUFFLER TO STRAP
70
NUT , Replaced By: N913004008001
74
HOSE FROM OIL BATH AIR CLEANER TO CYCLONE AIR TRAP
78
CLAMP , Replaced By: A0059971490
78
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
78
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
82
BOOT PIPE ELBOW TO TURBOCHARGER
90
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
90
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
100
LINE , Replaced By: A0005516256
100
LINE , Replaced By: A0005516256
999
BUFFER , Replaced By: A0009885511
999
AIR CLEANER , Replaced By: A0110947002
999
AIR CLEANERMANN+HUMMEL
999
999
AIR INTAKE PIPE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, FROM IDENT NO. 001445 ALSO INSTALLED ON 001348,001386,001401,001407,001408,001421-001423,001428,001433,001440
999
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: N000000000678
