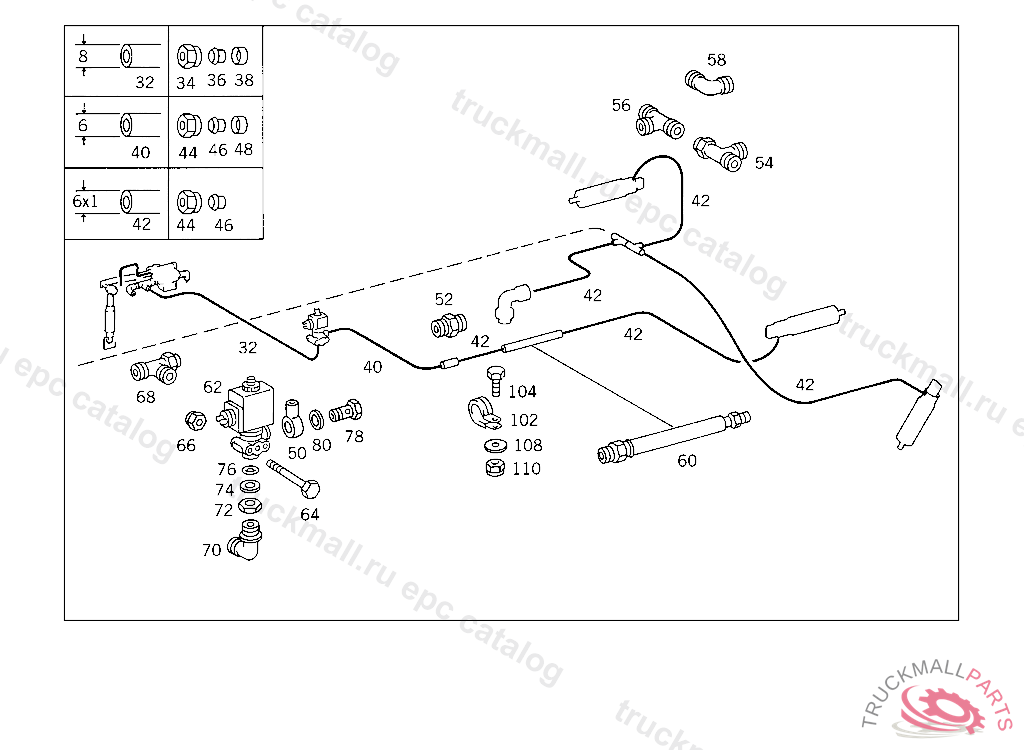

Поз.
Артикул
Описание
32
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
32
PLASTIC PIPE AERATION, ORDER BY THE METER
34
UNION NUT LINE CONNECTION
36
GLAND LINE CONNECTION
38
SLEEVE LINE CONNECTION
40
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
40
PLASTIC PIPE RISING PIPE 4X6 MM
42
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
42
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
42
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
42
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
42
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
44
UNION NUT
46
GLAND , Replaced By: A0019901667
48
SLEEVE LEAK LINE
50
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
52
FITTING , Replaced By: A0039979072
52
FITTING , Replaced By: A0029906071
52
TS DOUBLE FITTING SOLENOID VALVE
52
TS DOUBLE FITTING SOLENOID VALVE
54
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
54
FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227
54
FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227
56
T-FITTING EXHAUST-BRAKE POWER CYLINDER
58
ELBOW FITTING LINE CONNECTION, UP TO CHASSIS 4 329112,FROM CHASSIS SEE SA 25 009
58
FITTING EXHAUST BRAKE SWITCH TO SIGNAL PRESSURE CONNECTION AT TRANSMISSION
60
BRAKE HOSE AT CYLINDER, TO BE ADAPTED DURING ASSEMBLY
62
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
64
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
66
NUT , Replaced By: N913004008001
68
T-FITTING
70
ELBOW FITTING LINE CONNECTIONS
72
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
74
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
76
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
78
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
102
CLAMP , Replaced By: N916016010211
102
CLAMP , Replaced By: N000000001045
102
CLAMP CABLE HARNESS MOUNTING
102
CLAMP DELIVERY AND SUCTION LINES TO FRAME
102
CLAMP SENSOR CABLE TO BRACKET
104
SCREW CAB FLOOR COVERING M 6X25
108
WASHER , Replaced By: N009021006208
108
WASHER COMPRESSED AIR LINE TO BRACKET
110
NUT , Replaced By: N913004006001
110
NUT PUMP TO BRACKET
999
999
CLAMP HOSE TO COOLING WATER PIPE
999
CLAMP BATTERY CABLE MOUNTING
999
FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
HOLLOW SCREW LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
NUT BRACKET TO SIDE MEMBER
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
CLAMP , Replaced By: N000000001641
999
SEAL RING SRREW PLUG
999
SEAL RINGTO 000 429 24 30
999
GLAND , Replaced By: A0019901967
999
SCREW BRACKET TO SUPPORT
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
SCREW , Replaced By: N000961016065
999
NUT , Replaced By: N304032008006
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SCREW , Replaced By: A0079900801
999
SCREW , Replaced By: N304017008034
999
SCREW VALVE TO CAB M 8X85
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
FITTING LINE CONNECTION
999
UNION NUT LINE CONNECTION
999
CLAMP , Replaced By: A9424310043
999
CLAMP LINE MOUNTING
999
999
999
LINE
999
999
LEVER DOUBLE LEVER
999
BOOT PULL ROD
999
PULL ROD FROM LEVER I TO LEVER II WITH KICKDOWN SWITCH
999
SUPPORTING ARM
999
SUPPORTING ARM LEFT FRONT RUBBER MOUNTING, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
999
HOSE
999
MOLDED HOSE , Replaced By: A3015010782
999
HOSE , Replaced By: A3015011582
999
OUTLET ,000562
999
999
999
ENGINE SUPPORT CLUTCH END
999
COOLING WATER PIPE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6005011524
999
999
LINE FROM HIGH PRESSURE HOSE TO CONNECTOR 2375 MM
999
BRACKET LINE MOUNTING
999
RUBBER MOUNTING ADJUSTABLE,FRONMT
999
SEAL RING24X2 MM
999
SEAL RINGWABCO
999
SCREW REDUCTION VALVE TO BRACKET
999
FITTING LINE CONNECTION
999
SEAL RING VALVE TO VALVE
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
999
VALVE REDUCTION VALVE 2 BAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE REDUCTION VALVE 3 BAR
999
VALVE , Replaced By: A0034314906
999
VALVE REDUCTION VALVE 1,2 BAR
999
SCREW SUPPORTING ARM TO TRANSMISSION CASE, 357.4 FROM IDENT NO. 064258 ALSO INSTALLED ON 061497,062932,062958,062976,062992,063007,063024,063038,063055,063069,063245,063260,063278,063294, 063312,063383,063666,063721,063762,063803,063896,063932,063986,064049,064076,064188,064206,064215, 064228.
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
999
ELBOW FITTING
999
ELBOW FITTING , Replaced By: A0049905371
999
SEAL CONE LINE CONNECTION
999
T-FITTING POWER STEERING
999
PROTECTIVE CAPWABCO
999
SCREW. UNION SCREW LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
999
CONNECTOR , Replaced By: A0029905478
999
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
999
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
999
ADAPTER FITTING TEST CONNECTION
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
JOINT
