Mercedes N007981003246 - Болт

208/210 601.067

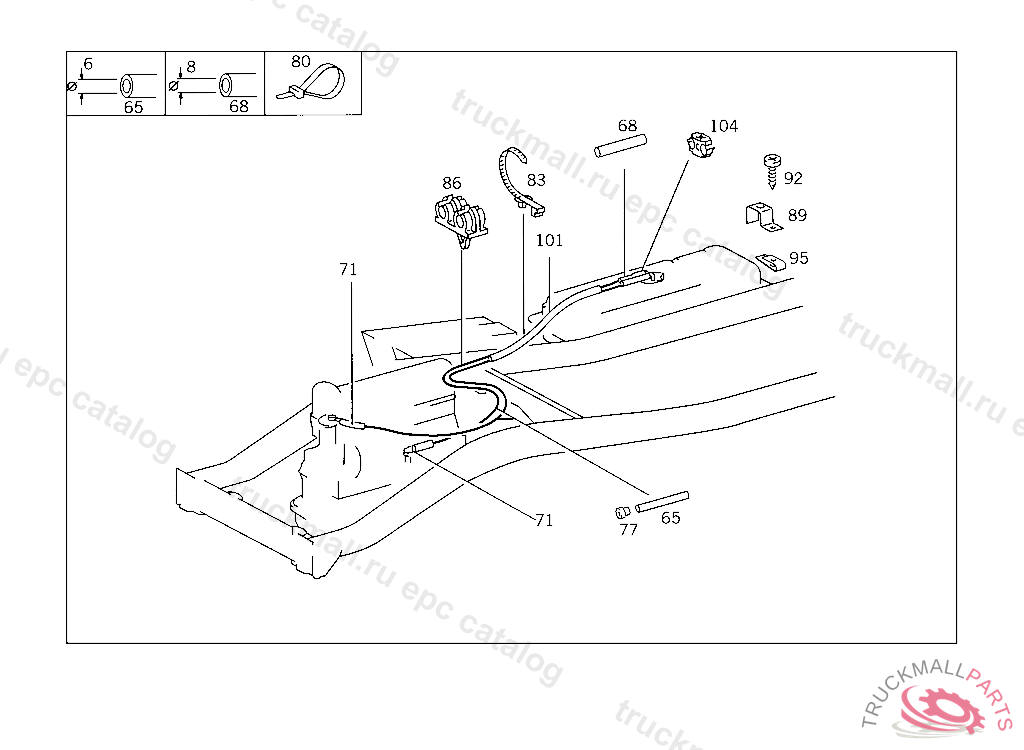

47 FUEL SYSTEM - 001 FUEL SYSTEM IL. 2

Поз.
Артикул
Описание
65
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
68
N916030000527
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
71
A0004290801
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
77
N915062006000
SLEEVE LINE CONNECTION
80
A0039975390
LOOM TIE VENT VALVE TO FUEL TANK
83
A1149970590
LOOM TIE
86
A6014760136
BRACKET FUEL LINES
89
A6014760236
BRACKET BRACKET TO CROSS MEMBER
92
N007981003246
SHEET METAL SCREW BRACKET TO CAB FLOOR
95
A0009949445
CLAMPING NUT BRACKET TO FRAME
101
N040621016200
INSULATING HOSE16X1 MM, ORDER BY THE METER
104
A4639940348
CLAMP. LOCK FUEL LINES
