Поз.
Артикул
Описание

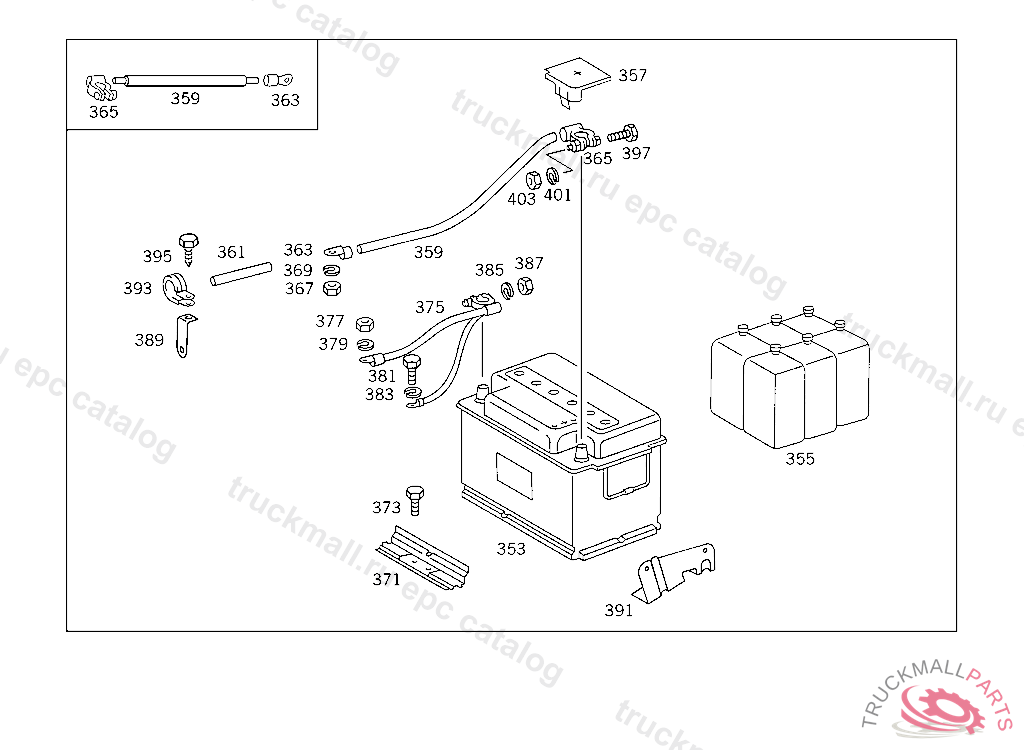

353
BATTERY12V/66AH,5 419106
353
BATTERY , Replaced By: A0015417901
353
BATTERY , Replaced By: A0025414301
353
BATTERY , Replaced By: A0045412301
355
BATTERY ACID BOTTLE SET , Replaced By: A0009891315
355
BATTERY ACID BOTTLE SETTO 001 541 79 01
357
BOOT , Replaced By: A0015460835
359
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
359
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
359
POSITIVE CABLE , Replaced By: N922004035202, +001A0005468430, +001N046234010002, +001N072332009100
359
ELECTRIC CABLE , Replaced By: A6735460011
359
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
361
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
363
CABLE SHOEA 10-35
363
CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR
365
SOLDERING TERMINAL FROM BATTERY TO STARTING MOTOR,D 001717
365
CLAMPING PIECE POS. POLE
365
SOLDERING TERMINAL POS. POLE
367
NUT BATTERY CABLE
367
NUT BRACKET TO SUPPORT AND TO END PIECE
369
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
371
MOUNTING RAIL ELECTRIC CABLE
373
SCREW PIPE CLAMP
373
SCREW , Replaced By: N304017008021
375
GROUND STRAP , Replaced By: A6015401541
375
GROUND STRAP , Replaced By: A6015400141
375
GROUND STRAP FROM BATTERY TO TRANSMISSION, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
375
GROUND STRAP FROM BATTERY TO TRANSMISSION, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
377
NUT BATTERY CABLE
377
NUT BRACKET TO SUPPORT AND TO END PIECE
379
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
381
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
381
SCREW , Replaced By: N304017008016
383
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
385
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
387
NUT BALL PIVOT TO LEVER
389
BRACKET STARTING MOTOR LINE TO CLUTCH BELL, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
391
BRACKET STARTING CABLE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
393
CLAMP CABLE HARNESS MOUNTING
393
CLAMP LINE MOUNTING
393
CLAMP , Replaced By: N916016010211
393
CLAMP , Replaced By: N000000001045
395
SHEET METAL SCREW6.3X16
397
SCREW PUMP TO BRACKET
397
SCREW , Replaced By: N304017006026
397
SCREW , Replaced By: N304017006026
397
SCREW , Replaced By: N304017006016
401
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
403
NUT BALL PIVOT TO LEVER
999
CLAMP PIN BUSHING HOUSING
999
SPACER TUBE BATTERY MASTER SWITCH,4 270413
