Поз.
Артикул
Описание

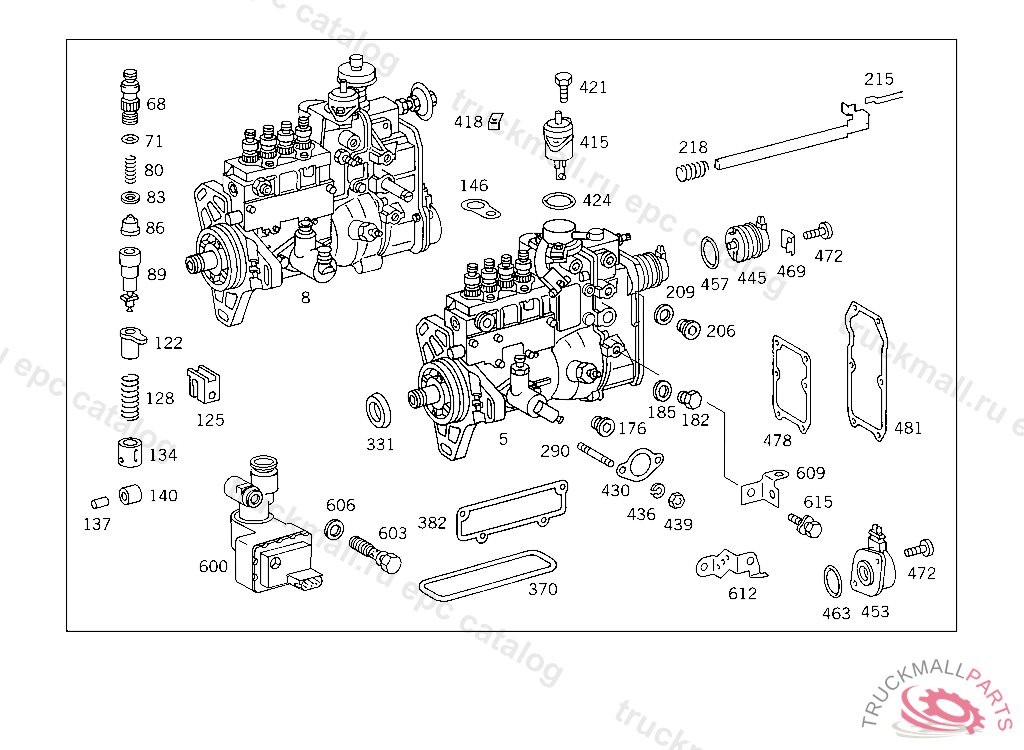

8
INJECTION PUMP , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
INJECTION PUMP , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
INJECTION PUMP , Replaced By: A6010705901
68
PRESSURE VALVE HOLDERTO 602 070 45 01
71
SEAL RING101
80
COIL SPRING. SPRING
83
SEAL RING PRESSURE VALVE HOLDER
86
VALVE
89
PUMP ELEMENT
122
SLEEVE
128
SPRING
134
TAPPET CYLINDER NO.2-5
146
SHACKLE
182
SCREW PLUG
185
SEAL RING SWITCH TO CASE COVER
290
STUD
331
SEAL RING
370
SEAL RING
382
GASKET LATERAL, ONLY IN CONJUNCTION WITH ALUMINIUM COVER
415
VACUUM BOX STOP BOX
415
VACUUM BOX , Replaced By: A0000704653
418
BRACKET STOP BOX
421
SCREW
424
SEAL RING
430
GASKET FUEL PUMP
436
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
439
NUT BATTERY MOUNTING
481
GASKET COVER TO GOVERNOR HOUSING TO 602 070 01 01, 602 070 19 01
600
SHUT-OFF VALVE DRIVE AUTHORIZATION SYSTEM, ONLY USED WITH IMMOBILISER STATE IDENT NO. WHEN ORDERING ORDER ADDITIONALLY:HOLLOW SCREW A 601 990 07 63 AND SEAL RING N 007603 012110 THEFT-RELEVANT PART
603
HOLLOW SCREW SHUT-OFF VALVE TO INJECTION PUMP, ONLY USED WITH IMMOBILISER
606
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
