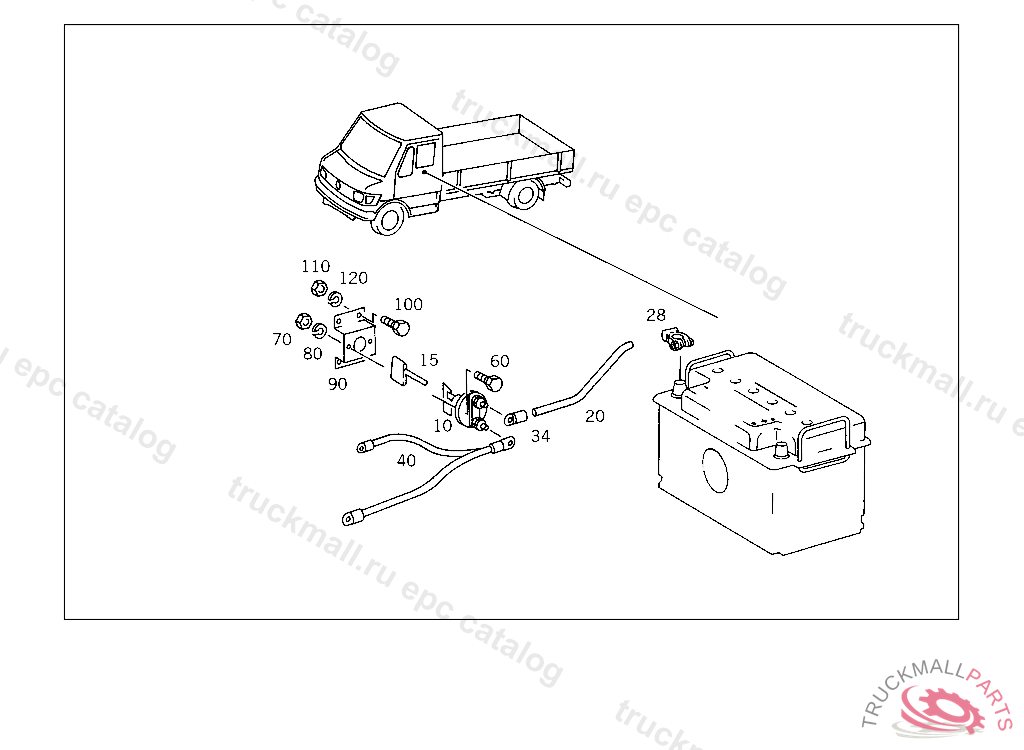

Поз.
Артикул
Описание
10
SWITCH
15
KEY
20
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
20
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
20
GROUND STRAP FROM BATTERY TO SWITCH
20
ELECTRIC CABLE FROM BATTERY TO TRANSMISSION, ORDER BY THE METER
20
ELECTRIC CABLE , Replaced By: A6735460011
20
GROUND STRAP , Replaced By: N922004035202, +001N046234010008, +001N072332009200
28
SOLDERING TERMINAL BATTERY CABLE
28
SOLDERING TERMINAL POS. POLE
34
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
40
GROUND STRAP , Replaced By: A6015402141
40
GROUND STRAP , Replaced By: A6015400541
40
GROUND STRAP FROM SWITCH TO TRANSMISSION, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
40
GROUND STRAP FROM SWITCH TO TRANSMISSION
60
SCREW , Replaced By: N304017006016
60
SCREW PUMP TO BRACKET
70
NUT SPRING-LOADED PUSH ROD
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
90
BRACKET BATTERY MASTER SWITCH
100
SCREW COVER PLATE TO COVER PLATE M 6 X 12
100
SCREW , Replaced By: N304017006018
110
NUT SPRING-LOADED PUSH ROD
120
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
