Главная
›
Mercedes
›
ENGINE
›
0M 602
›
602.946
›
15 ELECTRICAL EQUIPMENT
›

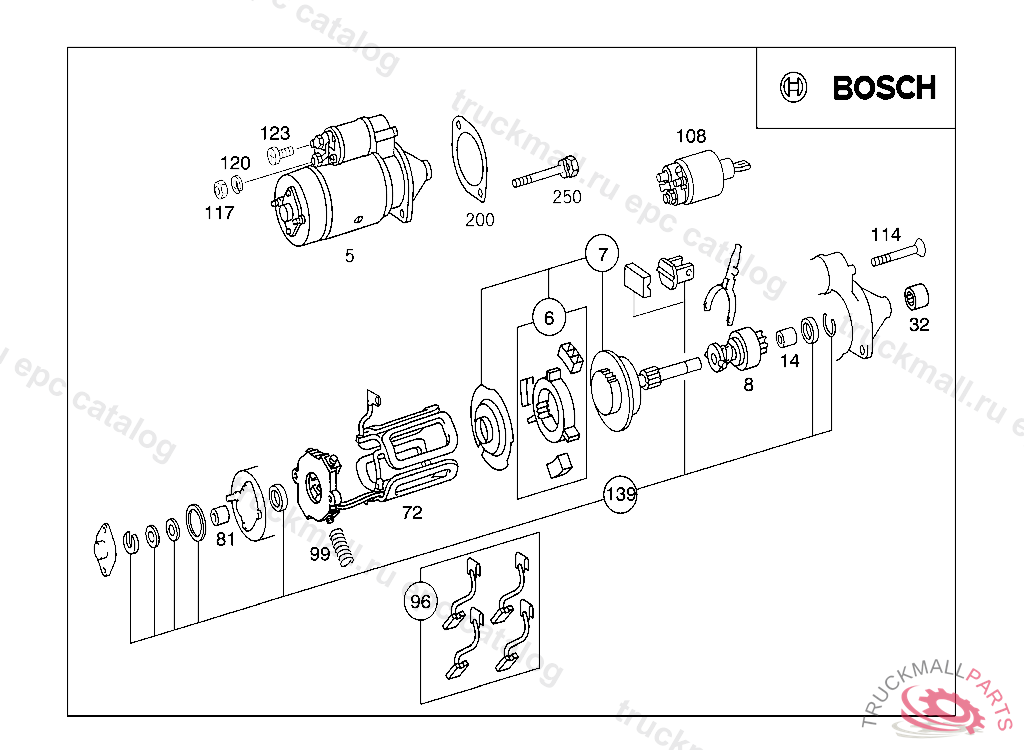

015 STARTING MOTOR IL. 1
Mercedes A0011510113 - Шестерня
0M 602 602.946
15 ELECTRICAL EQUIPMENT - 015 STARTING MOTOR IL. 1
Поз.
Артикул
Описание
5
A0061516601
STARTING MOTOR24V, BOSCH
5
A0041513101
STARTING MOTOR
6
A0001510330
GEAR SET
7
A0001500131
GEARING PLANETARY GEAR TRAIN TO A 004 151 63 01
8
A0011510113
PINIONTO A 004 151 63 01
14
A0001516550
BUSHING , Replaced By: A0001518150
14
A0001518150
BUSHING STARTER PINION
32
A0009812110
NEEDLE BEARING
32
A0129812810
NEEDLE BEARING , Replaced By: A0009812110
72
A0001517955
EXCITER COIL , Replaced By: A0001518655
72
A0001518655
EXCITER COIL
81
A0001517450
BUSHING
96
A0001519314
CARBON BRUSH SET
99
A0001514093
SPRING CARBON BRUSHES TO A 004 151 63 01, A 004 151 71 01
108
A0001529510
SOLENOID SWITCH
114
A0009908730
SCREW SOLENOID SWITCH TO HOUSING TO A 004 151 63 01
139
A0001500065
REPAIR KIT ARMATURE MOUNTING TO A 004 151 63 01
250
N914010010021
COMBINATION BOLT STARTING MOTOR TO CRANKCASE M 10X90
