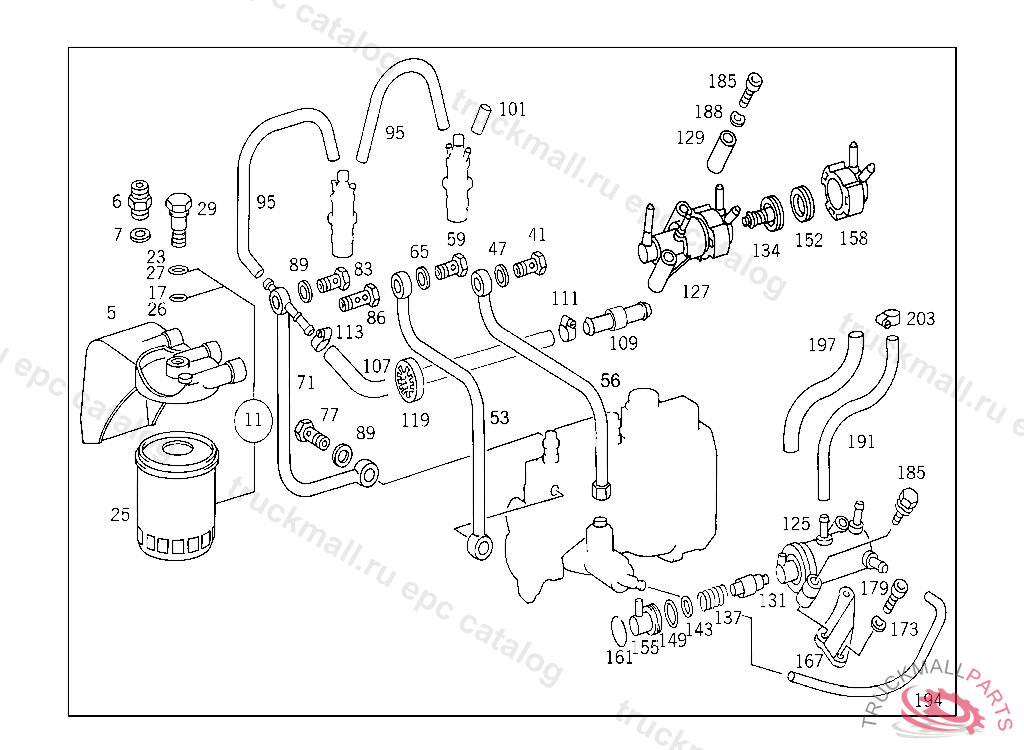

Поз.
Артикул
Описание
5
FILTER HEAD FUEL FILTER
11
FILTER (PARTS KIT),FUEL FILTER
11
FILTER
11
FILTER , Replaced By: A6010901452
17
SEAL RING
23
SEAL RING FUEL FILTER TO FILTER HEAD
29
HOLLOW SCREW FUEL FILTER TO FILTER HEAD
29
HOLLOW SCREW , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 911 10/50,20/60 123681 911 12/52,22/62 024346 912 10/50,20/60 243087 912 12/52,22/62 042009 939 10/50,20/60 009528 942 10/50,20/60 000391 942 12/52,22/62 000013 946 10/50,20/60 000638 961 10/50,20/60 010047 961 12/52,22/62 011552 962 10/50,20/60 029888 962 12/52,22/62 018834 993 10/50,20/60 000246, Replaced By: A6049900063
41
HOLLOW SCREW OIL LINE
47
SEAL RING RELAY VALVE,CONNECTION: "41"
47
SEAL RINGTO 001 431 72 14
53
LINE FROM FUEL FILTER TO INJECTION PUMP
56
LINE FROM FEED PUMP TO FILTER
59
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
59
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
65
SEAL RING
71
LINE FUEL RETURN
77
VALVE FUEL RETURN LINE TO INJECTION PUMP
83
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
83
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
89
SEAL RING
95
HOSE , Replaced By: A6050780581
95
FUEL HOSE FROM NO.1 NOZZLE HOLDER TO FUEL RETURN LINE 245 MM, ORDER BY THE METER
101
SCREENING NOZZLE HOLDER
101
RUBBER CAP , Replaced By: A6040700255
101
RUBBER CAP NOZZLE HOLDER NO.4
107
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
127
THERMOSTAT FUEL THERMOSTAT
129
SLEEVE
129
SLEEVE
134
THERMOSTAT FUEL THERMOSTAT
152
SEAL RING
158
COVER
185
SCREW FUEL THERMOSTAT TO ENGINE SUPPORT M6X55
185
SCREW OIL LINES TO ENGINE M 6X70
188
SPRING WASHER LICENSE PLATE TO BRACKET
191
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
194
HOSE FROM FUEL THERMOSTAT TO FEED PUMP
203
HOSE CLAMP HOSE FASTENING 9/13MM
