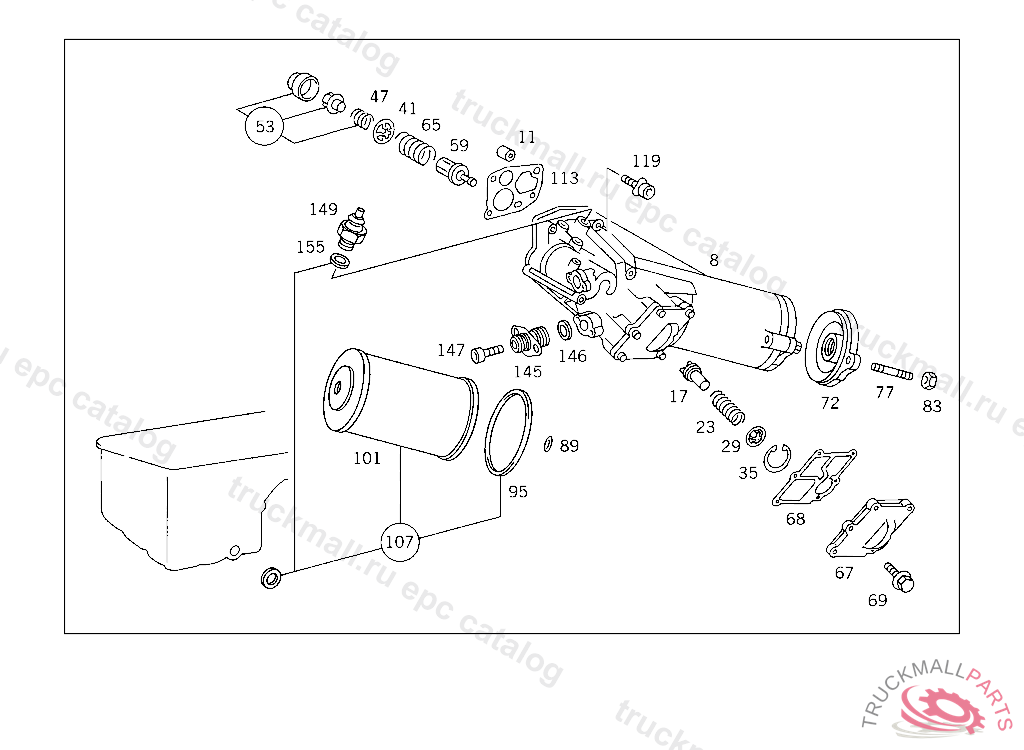

Поз.
Артикул
Описание
11
SLEEVE
17
VALVE BY-PASS VALVE
23
SPRING BY-PASS VALVE
29
SPRING RETAINER BY-PASS VALVE
35
SNAP RING BY-PASS VALVE
41
SPRING RETAINER NON-RETURN VALVE
47
VALVE SEAT NON-RETURN VALVE
47
SPRING , Replaced By: A6011840230
53
VALVE SEAT RANGE OF DELIVERY
59
REGULATOR THERMOSTAT INSERT
59
REGULATOR THERMOSTAT INSERT
65
SPRING
72
COVER FILTER HOUSING,TOP
72
COVER , Replaced By: A6031840108, +001A6031800022, +001N007603014104
77
STUD COVER TO FILTER HOUSING
83
NUT COVER TO FILTER HOUSING
89
SEAL RING
95
SEAL RING COVER TO FILTER HOUSING
101
FILTER ELEMENT UP TO A READING OF 1000 KM
107
TS OIL FILTER ELEMENT FROM 1001 KM,RANGE OF DELIVERY
113
GASKET OIL FILTER TO CYLINDER CRANKCASE
113
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6011840580
113
GASKET , Replaced By: A6011840580
119
COMBINATION BOLT OIL FILTER TO CYLINDER CRANKCASE M 8X40
119
COMBINATION BOLT OIL FILTER TO CYLINDER CRANKCASE M 8X100
145
CONNECTOR TO CONNECT LINE TO OIL FILTER
146
SEAL RING OIL LINE TO OIL FILTER
147
SCREW
149
SENDER UNIT OIL PRESSURE GAUGE WITH WARNING CONTACT
