Поз.
Артикул
Описание

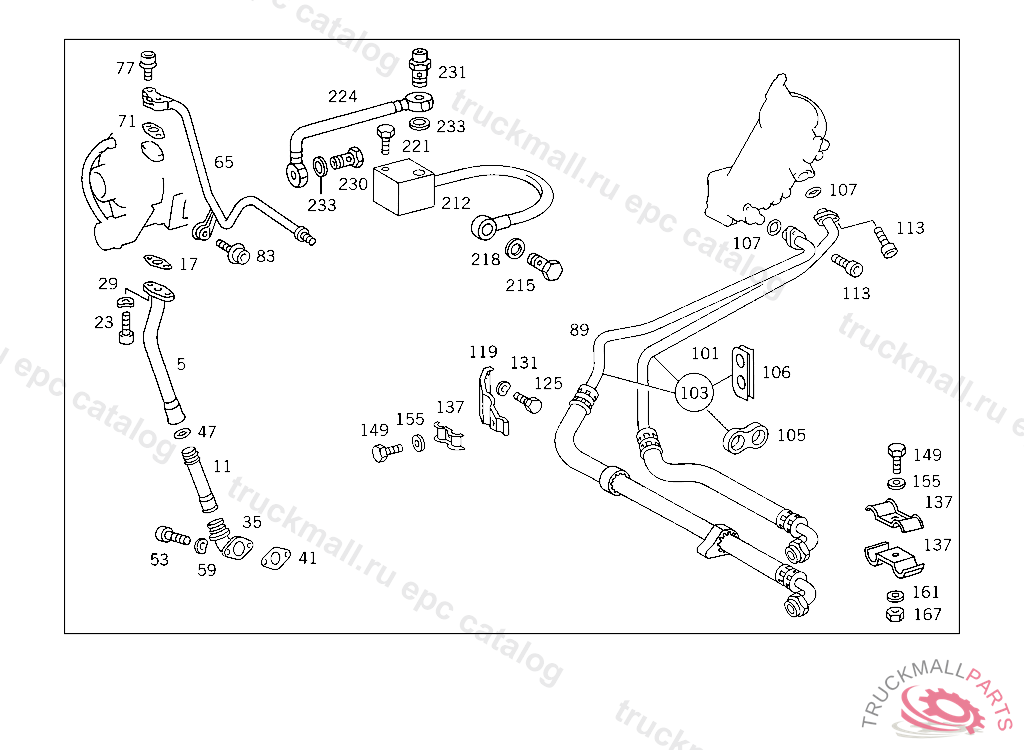

5
OIL LINE FROM TURBOCHARGER TO CYLINDER CRANKCASE
11
OIL LINE FROM TURBOCHARGER TO CYLINDER CRANKCASE
17
GASKET OIL LINE TO TURBO-CHARGER
17
GASKET , Replaced By: A6021870480
23
SCREWM 6X16
23
SCREW BEARING BRACKET TO TRANSMISSION
29
SPRING WASHER LICENSE PLATE TO BRACKET
35
FLANGE OIL RETURN LINE TO CYLINDER CRANKCASE
41
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6031870680
41
GASKET OIL RETURN LINE TO CYLINDER CRANKCASE
47
SEAL RING OIL LINE TO OIL FILTER
53
SCREW BEARING BRACKET TO TRANSMISSION
53
SCREWM 6X16
59
SPRING WASHER LICENSE PLATE TO BRACKET
65
OIL LINE
71
GASKET , Replaced By: A6021870580
71
GASKET LUBRICATING OIL LINE TO TURBOCHARGER
77
COMBINATION BOLT MIXER HOUSING TO INTAKE PIPE
83
SCREW-AND-WASHER ASSEMBLY SWITCH TO BRACKET M6X12
83
COMBINATION BOLT , Replaced By: N000000000009
212
OIL LINE ,993 000131, Replaced By: A6021800827, +001A6029900063
215
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
215
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
218
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
221
SCREW , Replaced By: N304017006026
224
OIL LINE (LUBRICATING OIL LINE) FROM OIL FILTER TO OIL COOLER,993 000132
224
OIL LINE ,993 000131, Replaced By: A6021800827, +001A6029900063
230
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
231
HOLLOW SCREW OIL LINE TO HYDR. STARTING QUANTITY LOCKING MECHANISM & TO OIL FILTER,993 000132
233
SEAL RING FITTING TO AXLE HOUSING
233
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
233
SEAL RING , Replaced By: N007603010112
999
HOSE FROM FUEL TANK TO HEATER 4X8 MM, ORDER BY THE METER
999
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
