Поз.
Артикул
Описание

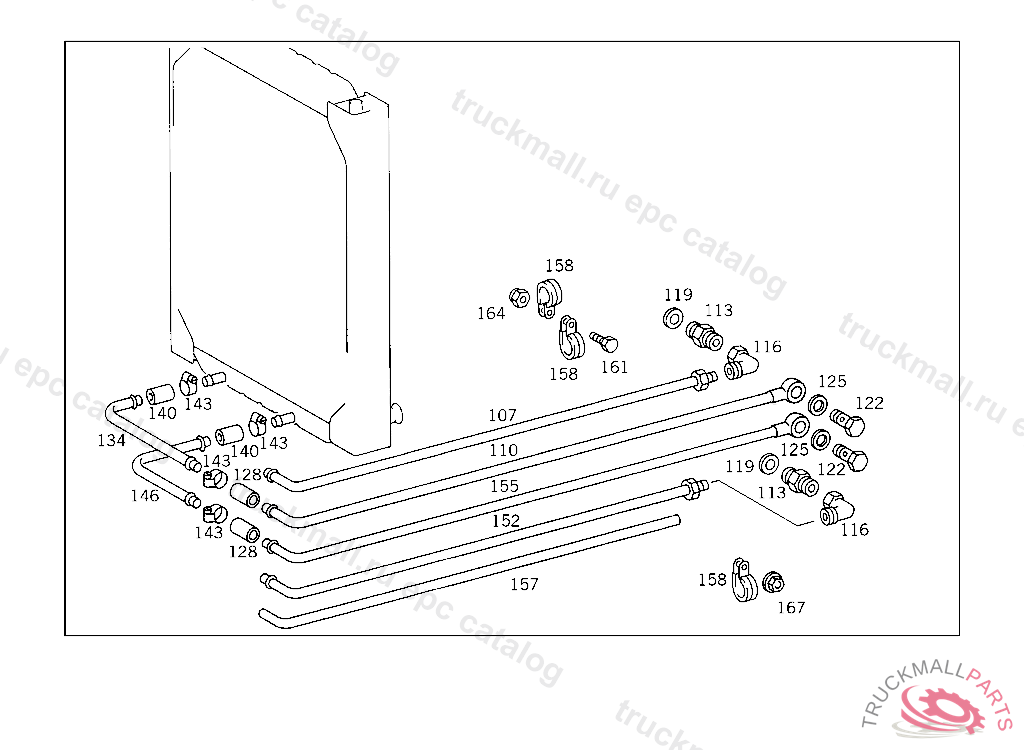

110
PIPE FEED, FROM TRANSMISSION TO HOSE
122
HOLLOW SCREW , Replaced By: N915036015201
122
HOLLOW SCREW RESERVOIR TO SUPPORT
125
SEAL RING ON OIL PUMP HOUSING
128
HOSE , Replaced By: A6559970582
128
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
128
HOSE FEED AND RETURN LINES TO OIL COOLER, ORDER BY THE METER
134
OIL PIPE FROM HOSE TO HOSE AT OIL COOLER
140
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
140
HOSE FEED AND RETURN LINES TO OIL COOLER, ORDER BY THE METER
143
CLAMP HOSE TO FITTING AND TO OIL TANK
143
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
146
OIL PIPE RETURN, FROM OIL COOLER TO HOSE
155
PIPE OIL LINE CONNECTION TO TRANSMISSION
157
LINE15X1.5, ELIMINATED - NO LONGER REQUIRED
158
CLAMP BREATHER LINE TO BRACKET
158
CLAMP LINE MOUNTING
158
CLAMP LINE MOUNTING
161
SCREW CAB FLOOR COVERING M 6X25
164
NUT , Replaced By: N913004006001
167
NUT COVERING TO CAB FIRE WALL
999
LINE ENGINE FEED,086209
999
COOLING WATER PIPE FROM HOSE TO HOSE,086209
