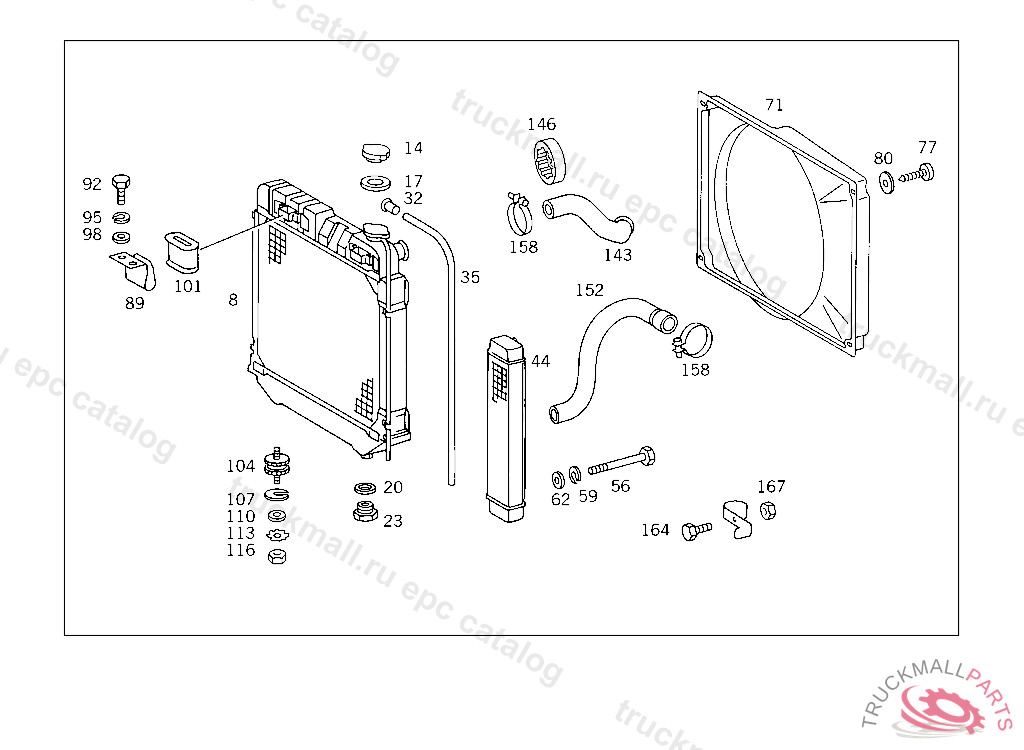

Поз.
Артикул
Описание
14
FILLER CAPTO 601 500 16 03
14
RADIATOR CAP
14
RADIATOR CAP , Replaced By: A0005011715
14
RADIATOR CAP , Replaced By: A0005011715
14
RADIATOR CAP , Replaced By: A4615010015
14
RADIATOR CAP , Replaced By: A0005014115
14
FILLER CAP , Replaced By: A0005000106
17
GASKET O.D., 37 MM
20
SEAL RING FUEL LINE TO FEED PUMP
23
SCREW PLUG FUEL TANK
32
DRAIN PIPE
35
HOSE OVERFLOW
35
HOSE MAIN LUBRICATING LINE,PUMP,DISTRIBUTOR 10X2 MM, ORDER BY THE METER
71
FAN SHROUD RADIATOR, FROM IDENT NO. 240107-499999 ALSO INSTALLED ON 237252,237255,237256,239954,240088556500P 000001763828
77
SHEET METAL SCREW HEATER UNIT BOTTOM BRACKET TO BODY 4,8X13 MM
80
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
80
WASHER , Replaced By: N009021005205
104
RUBBER BUFFER RADIATOR MOUNTING,BOTTOM, UP TO IDENT NO. 763828 EXCEPT FOR 762813
107
WASHER RADIATOR MOUNTING,BOTTOM, UP TO IDENT NO. 763828 EXCEPT FOR 762813
110
WASHER EXHAUST MUFFLER TO STRAP
113
SERRATED WASHER BRACKET TO FIRE WALL
116
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
143
HOSE TOP,763829
152
HOSE BOTTOM, FROM IDENT NO. 240107-499999 ALSO INSTALLED ON 237252,237255,237256,239954,240088556500P 000001763828
152
HOSE , Replaced By: A6015012482
158
CLAMP , Replaced By: A0069970690
158
CLAMP , Replaced By: A0069974390
158
CLAMP , Replaced By: A0069970590
158
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
158
LOOM TIE
158
LOOM TIE. CLAMP HOSE FASTENING
