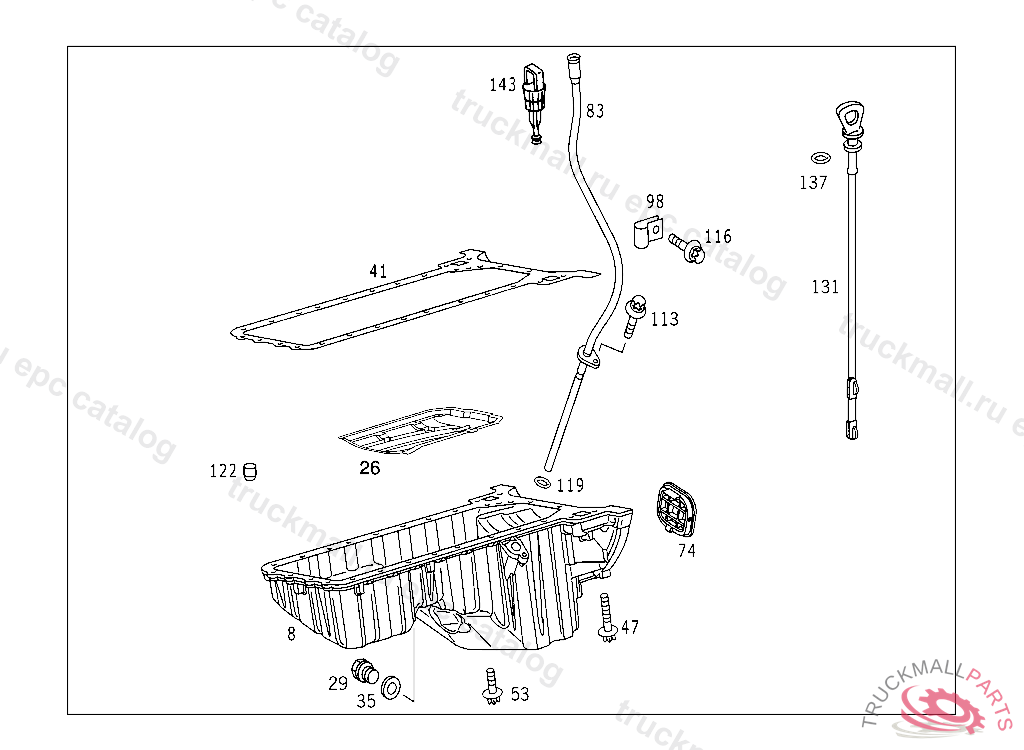

Поз.
Артикул
Описание
8
OIL PAN
8
OIL PAN , Replaced By: A6460141702
8
OIL PAN , UP TO ENGINE 30 552218 ORDER ADDITIONALLY GUIDE TUBE:A 611 010 04 66, Replaced By: A6460141302
8
OIL PAN , Replaced By: A6460140902, +001A6110100466
26
OIL BAFFLE
29
SCREW PLUG, FILLING OIL DRAIN
35
SEAL RINGTO 000 553 03 05,000 553 18 05,
41
METAL SEAL WITH BEAD OIL PAN TO CYLINDER CRANKCASE
41
GASKET OIL PAN TO CYLINDER CRANKCASE, Replaced By: A6460140322
41
GASKET , Replaced By: A6460140022
41
GASKET OIL PAN TO CYLINDER CRANKCASE, Replaced By: A6460140222
41
GASKET OIL PAN TO CYLINDER CRANKCASE, ADDITIONALLY SEAL WITH 0.5 G SEALING COMPOUND 002 989 45 20
47
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
53
HEXALOBULAR BOLT. SCREW
53
HEXALOBULAR BOLT OIL PAN,REAR M6X110
53
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
53
SCREWM 6X70
53
HEXALOBULAR BOLT BRACKET TO TIMING CASE COVER M6X80
74
EXPANSION PLUG MOUNTING HOLE IN OIL PAN
83
GUIDE TUBE OIL DIPSTICK,30 10581430 13416330 150668
83
GUIDE TUBE OIL DIPSTICK,30 13416430 150667
83
GUIDE TUBE , Replaced By: A6110100466
98
CLAMP GUIDE TUBE TO OIL FILLER NECK
113
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
116
BOLT. SCREW
116
SCREW , Replaced By: A1669900722
119
SEAL RING , Replaced By: A0289979048
119
SEAL RING GUIDE TUBE TO OIL PAN
122
PLUG , Replaced By: A0019975035
122
PLUG AT TIMING CASE COVER,FOR GUIDE TUBE
131
OIL DIPSTICK ,30 358963
137
SEAL RING
143
COVER
143
COVER ,30 090822, Replaced By: A6460100035
