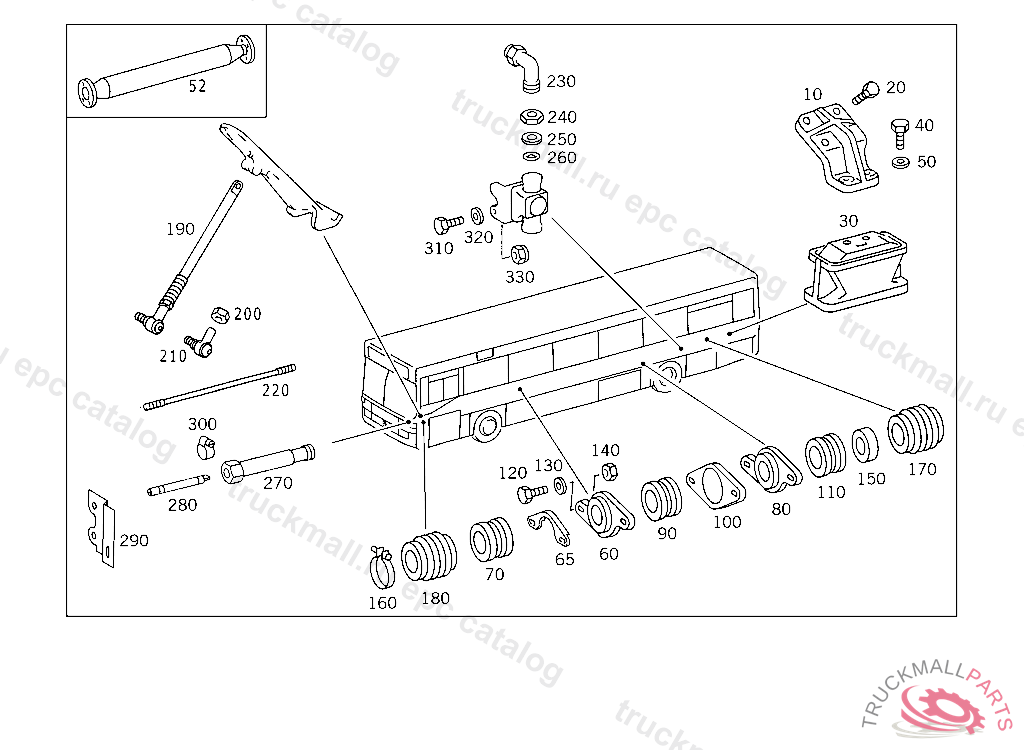

Поз.
Артикул
Описание
10
SUPPORTING ARM BELL HOUSING,4 753306
20
SCREW SUPPORTING ARM TO BELL HOUSING
20
SCREW , Replaced By: N308676018001
30
RUBBER MOUNTING , Replaced By: A3572400118
30
RUBBER MOUNTING ENGINE REAR SUSPENSION
30
RUBBER MOUNTING , Replaced By: A3572400318
30
RUBBER MOUNTING REAR
30
RUBBER MOUNTING ENGINE MOUNTING,CLUTCH END,RIGHT
30
RUBBER MOUNTING REAR
30
RUBBER MOUNTING REAR
30
RUBBER MOUNTING REAR
40
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
40
SCREW , Replaced By: N308676016005
40
SCREW , Replaced By: N000961016097
50
WASHER CONSOLE TO FRAME
52
SHIFTING ROD ABOVE REAR AXLE
60
BRACKET SHIFTING ROD BEARING
65
BRACKET SHIFTING TUBE
70
BUSHING SHIFTING ROD TO BRACKET
70
BUSHING , Replaced By: A3572680050
80
GUIDE PLATE SHIFTING ROD BEARING NO. 3+4
90
BUSHING
100
BRACKET SHIFTING TUBE
110
BUSHING SHIFTING TUBE,082859
120
SCREW , Replaced By: N304017008034
120
SCREW , Replaced By: N304017008027
120
SCREW BRACKET TO CROSS CONNECTION STRUT
120
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
130
WASHER EXHAUST MUFFLER TO STRAP
130
WASHER , Replaced By: N000125008443
140
NUT BRACKET TO SIDE MEMBER
150
RUBBER RING SHIFTING ROD BEARING: NO. 4
160
CLAMP AT SHIFTING TUBE
170
BOOT SHIFTING ROD BEARING NO. 3+4
180
BOOT SHIFTING TUBE
190
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER I
200
NUT , Replaced By: N304032008006
210
JOINT
220
PULL ROD BETWEEN LEFT AND RIGHT CONTROL LEVERS
230
ELBOW FITTING PRESSURE REGULATOR,CONNECTION: "21",051560
240
NUT CHECK VALVE TO AIR RESERVOIR
250
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
260
O-RING CHECK VALVE TO AIR RESERVOIR
270
COUPLER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3025420147
280
COUPLER
290
BRACKET COUPLER
300
CLAMP BRAKE HOSE BRACKET
310
SCREW PUMP TO BRACKET
310
SCREW , Replaced By: N304017006016
320
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
330
NUT , Replaced By: N913004006001
330
NUT PUMP TO BRACKET
999
GASKET
999
CLAMP FEED LINE TO BRACKET
999
BOOT PULL ROD
999
COOLING WATER PIPE COOLING WATER RETURN LINE
999
COOLING WATER PIPE FROM HOSE CONNECTION TO OIL COOLER MOLDED HOSE
999
BRACKET COOLING WATER LINE TO SUCTION PIPE,069464
999
BRACKET
999
BRACKET
999
BRACKET
999
BRACKET , Replaced By: A3604922819
999
HOSE FEED LINE TO TRANSMISSION
999
LINE FROM OIL COOLER TO RETURN HOSE CONNECTION, USED WITH ZF TRANSMISSION
999
LINE
999
PAD FEED LINE TO BRACKET
999
GASKET FEED LINE TO TRANSMISSION
999
PIPE SOCKET RETURN LINE TO TRANSMISSION
999
PIPE SOCKET FEED LINE TO TRANSMISSION
999
PULL ROD FROM LEVER I TO LEVER II WITH KICKDOWN SWITCH
