Поз.
Артикул
Описание

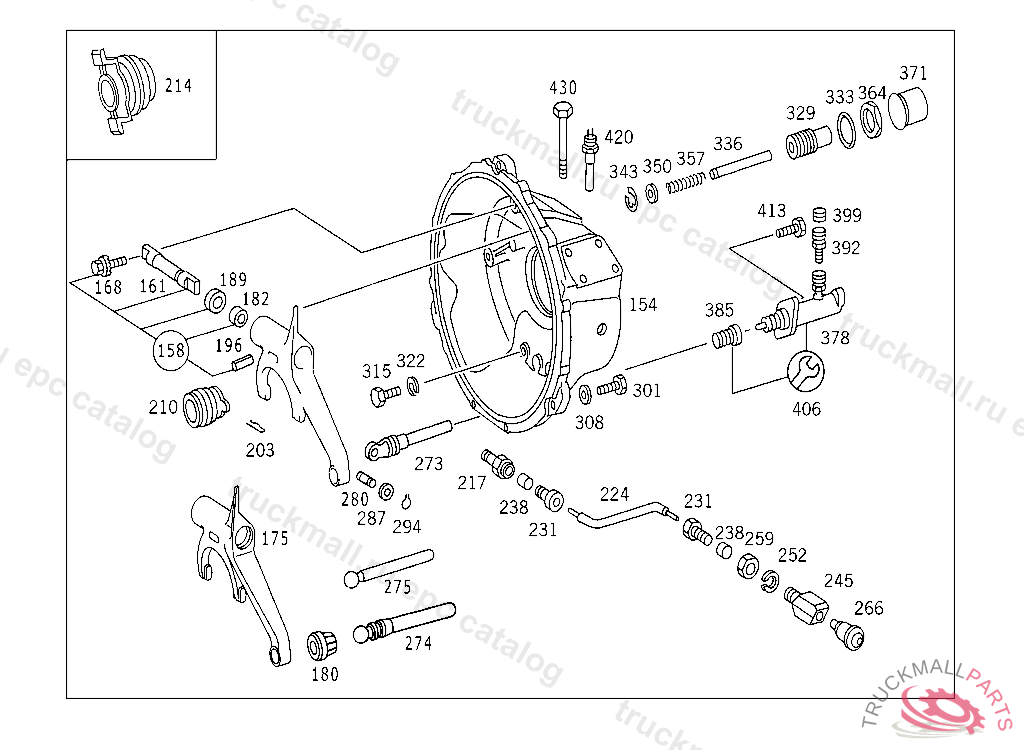

154
BELL HOUSING
158
SHAFT (PARTS KIT),RELEASE SHAFT
161
SHAFT (CLUTCH RELEASE SHAFT)
168
SCREW RELEASE LEVER TO BELL HOUSING
175
RELEASE LEVER ,5 504836
180
BEARING TOP
182
NEEDLE BEARING RELEASE LEVER
189
SEAL RING RELEASE LEVER
196
CLAMPING SLEEVE RELEASE LEVER
203
SPRING RELEASE LEVER TO RELEASE BEARING
210
RELEASE BEARING
210
RELEASE BEARING CLUTCH
214
RELEASE BEARING
217
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
224
HOSE RELEASE COLLAR LUBRICATION 220 MM
231
UNION SCREW RELEASE COLLAR LUBRICATION
238
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
245
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
252
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
259
NUT JOINT TO BRACKET
259
NUT , Replaced By: N308675014001
266
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
273
ROD END CLUTCH ACTUATION,5 504835
274
PIN RELEASE LEVER,5 599536
275
PIN RELEASE LEVER
280
PIN ROD END TO RELEASE LEVER,5 504835
287
SEAL RING CLUTCH ACTUATION
294
LOCK RINGTO 000 553 37 01,000 553 39 01,
301
SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING M 10X45
308
WASHER RADIATOR TO RUBBER MOUNTING
308
WASHER , Replaced By: N000125010532
315
SCREW , Replaced By: N308676018010
315
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
322
LOCK WASHER BELL HOUSING TO TRANSMISSION
329
SCREW CLUTCH LINING WEAR INDICATOR
329
SCREW , 036,037,038 5 095725 045,048,137,138 5 1446635 151290, Replaced By: A6202520171, +001A0019880835
333
SEAL RING WEAR INDICATOR
336
PIN CLUTCH LINING WEAR INDICATOR
343
SNAP RING CLUTCH LINING WEAR INDICATOR
350
WASHER BRACKET TO CROSS MEMBER
357
SPRING CLUTCH LINING WEAR INDICATOR
364
NUT CLUTCH LINING WEAR INDICATOR
371
CAP CLUTCH LINING WEAR INDICATOR
378
SLAVE CYLINDER CLUTCH ACTUATION
385
BOOT
385
BOOT , Replaced By: A0002956083
392
VALVE CLUTCH SLAVE CYLINDER
399
PROTECTIVE CAP ,5 962906
399
PROTECTIVE CAP , Replaced By: A0004217187
406
REPAIR KIT CLUTCH SLAVE CYLINDER
413
SCREW END PIECE TO EXHAUST PIPE M 10X25
420
SENDER UNIT LIMITATION OF ENGINE SPEED
430
SCREW COVERING TO BEARING BRACKET
999
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
999
SPRING RELEASE FLANGE TO RELEASE LEVER
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523919, +002A0002523975
999
RIVET , Replaced By: A0002523775
999
RIVET , Replaced By: A0002524675
999
REPAIR KIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 288567, Replaced By: A0002904067
999
CAP , 036,037,038 5 095725 045,048,137,138 5 1446635 151290, Replaced By: A0019880835, +001A6202520171
999
CLUTCH LINING , Replaced By: A0012523310
999
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
999
CLUTCH PRESSURE PLATE
999
CLUTCH DISC , Replaced By: A0072501303
999
CLUTCH DISC ASBESTOS-FREE LINING
999
BELL HOUSING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 328362, Replaced By: A6202511601
999
RELEASE LEVER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 295677, Replaced By: A6202540508
999
RELEASE LEVER ,5 504835, Replaced By: A6202540708, +001A0002540335, +001A6202950274
