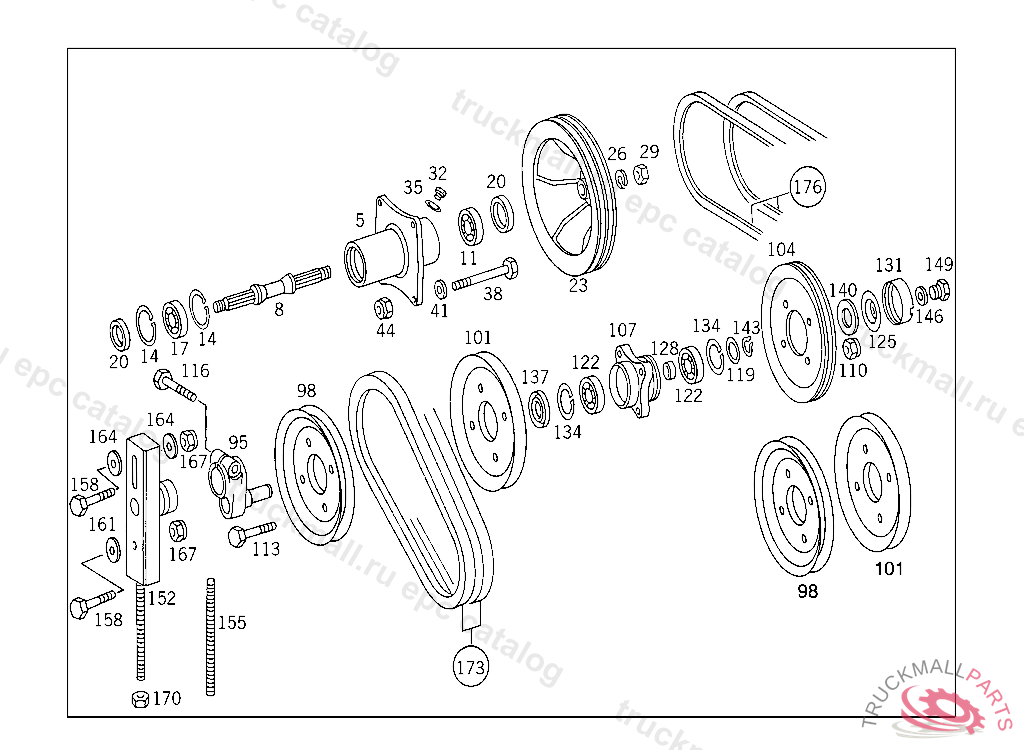

Поз.
Артикул
Описание
5
BEARING BODY FAN DRIVE
5
BEARING BODY FAN DRIVE
8
SHAFT
8
FAN SHAFT
11
CYLINDR. ROLLER BEARING FAN DRIVE
11
CYLINDR. ROLLER BEARING ON RADIATOR SIDE
14
LOCK RING52X2 MM
17
GROOVED BALL BEARING
20
SEAL RING CASE COVER
23
PULLEY FAN DRIVE, FROM IDENT NO. 004703 ALSO INSTALLED ON 004316,004586,004634,004640,004650,004662,004673
26
LOCK WASHERROCKINGER TYP 59 G140,59 G150
29
NUT HUB TO FAN SHAFT
29
NUT WEAR INDICATOR
32
SCREW PLUG AIR DEHYDRATOR
32
SCREW PLUG 4/2-WAY VALVE
35
SEAL RING LINE CONNECTION
38
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
38
SCREW , Replaced By: N304017008053
41
WASHER , Replaced By: N000125008443
41
WASHER EXHAUST MUFFLER TO STRAP
44
NUT , Replaced By: N913004008001
95
LEVER BELT TIGHTENER,042507
104
PULLEY TIGHTENER PULLEY
107
HUB
107
HUB
110
NUT , Replaced By: N913004008001
113
SCREW VALVE TO BRACKET
116
SCREW , Replaced By: N308676012031
116
SCREW , Replaced By: N308676012011
116
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
119
SPACER WASHER BELT TIGHTENER 0.50 MM
119
SPACER WASHER BELT TIGHTENER 0.20 MM
122
BALL BEARING HUB,1/97
122
GROOVED BALL BEARING
125
EXPANSION PLUG PULLEY,1/97
125
EXPANSION PLUG
128
SPACER TUBE
131
NUT TIGHTENER PULLEY
134
LOCK RING52X2 MM
137
SEAL RING PULLEY,1/97
137
SEAL RING
140
SEAL RING BATTERY MASTER SWITCH
143
LOCK RING
146
SEAL RING LINE CONNECTION
149
SCREW PLUG 4/2-WAY VALVE
149
SCREW PLUG AIR DEHYDRATOR
152
SUPPORT CLAMPING LEVER,075186
155
STUD ,075186
158
SCREW RADIATOR M 10X45
161
WASHER RADIATOR TO RUBBER MOUNTING
161
WASHER , Replaced By: N000125010532
164
WASHER , Replaced By: N009021010209
164
WASHER BRACKET TO COVERING
167
NUT , Replaced By: N910113010000
167
NUT STRAP TO BRACKET
170
NUT STRAP TO SUPPORT
173
V-BELT TOOTHED,SET2 PIECES 12.5X1693 MM
176
V-BELT SET2 PIECES 12.5X1125
999
RECEPTACLE SILICONE GREASE
