Поз.
Артикул
Описание

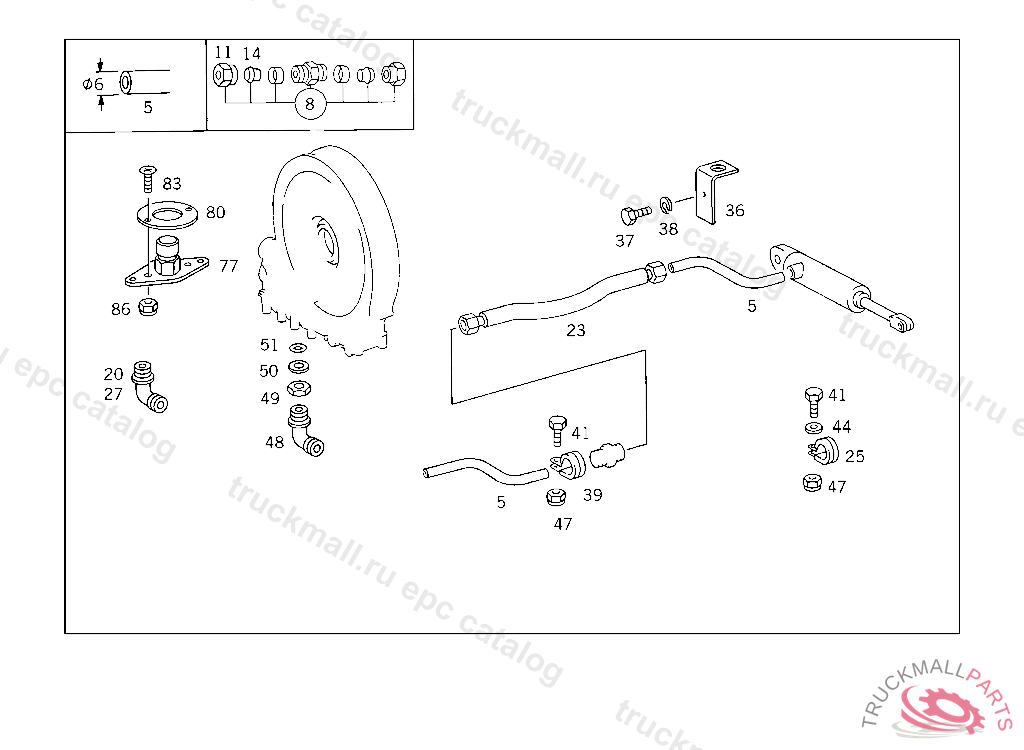

5
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
8
TS DOUBLE FITTING SOLENOID VALVE
11
UNION NUT
14
GLAND , Replaced By: A0019901667
20
FITTING FROM PUMP TO CYLINDER
20
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
23
BRAKE HOSE AT CYLINDER, TO BE ADAPTED DURING ASSEMBLY
25
CLAMP SENSOR CABLE TO FRONT AXLE
27
FITTING FROM PUMP TO CYLINDER
27
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
39
CLAMP , Replaced By: N916016010211
39
CLAMP , Replaced By: N000000001045
39
CLAMP CABLE HARNESS MOUNTING
41
SCREW CAB FLOOR COVERING M 6X25
44
WASHER COMPRESSED AIR LINE TO BRACKET
44
WASHER , Replaced By: N009021006208
47
NUT , Replaced By: N913004006001
47
NUT PUMP TO BRACKET
77
SWITCH (FOOT-OPERATED SWITCH),5 220373
80
BRACKET SWITCH TO FLOOR PLATE,5 220373
83
SCREW MOUNTING PARTS M6X25
86
NUT
