Поз.
Артикул
Описание
5

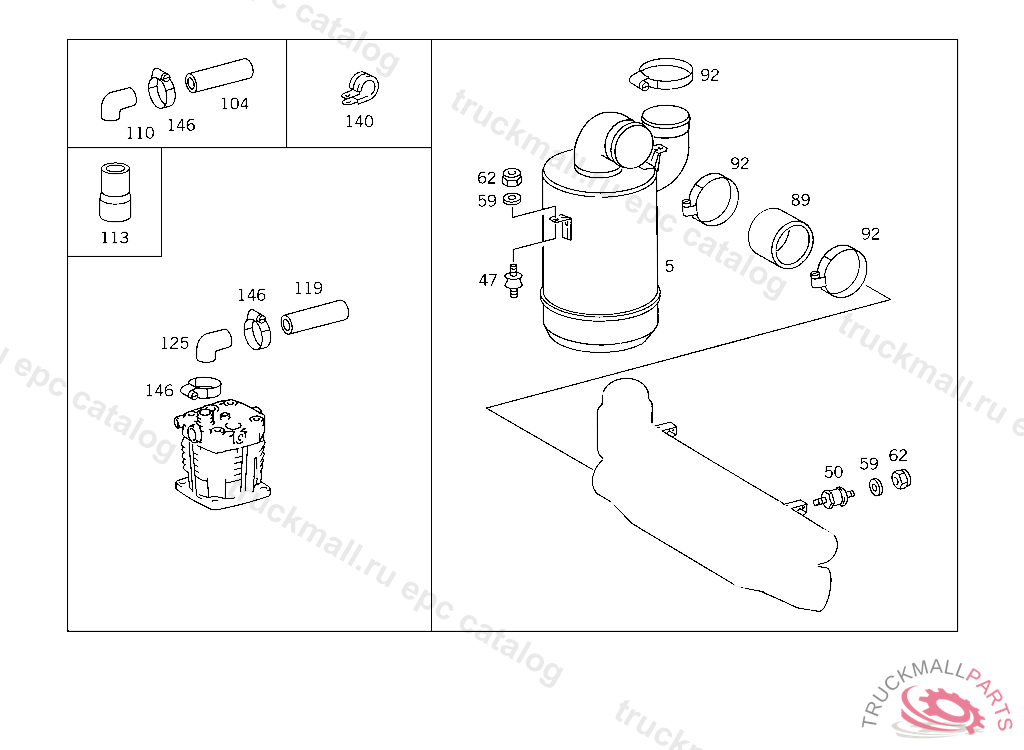

AIR CLEANER
47
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
50
RUBBER BUFFER COVERING TO FRAME
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
89
HOSE INTAKE PIPE TO AIR CLEANER
92
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
92
CLAMP , Replaced By: N000000000678
92
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
92
CLAMP , Replaced By: A0059972990
92
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
92
CLAMP HOSE 70-90X13 MM
104
HOSE FROM AIR CLEANER TO INTAKE PIPE,086793
113
HOSE FROM AIR CLEANER TO AIR COMPRESSOR,086182
119
HOSE CONNECTING PIECE,AUXILIARY RADIATOR, ORDER BY THE METER
125
HOSE INTAKE MUFFLER TO AIR COMPRESSOR,086973
146
CLAMP EXPANSION TANK & COOLING WATER LINE, FROM IDENT-NO. 827712, ALSO INSTALLED IN ENGINE 935766
999
AIR INTAKE PIPE FROM AIR INTAKE PIPE TO AIR COMPRESSOR,086973
999
AIR INTAKE CASE ,086793
