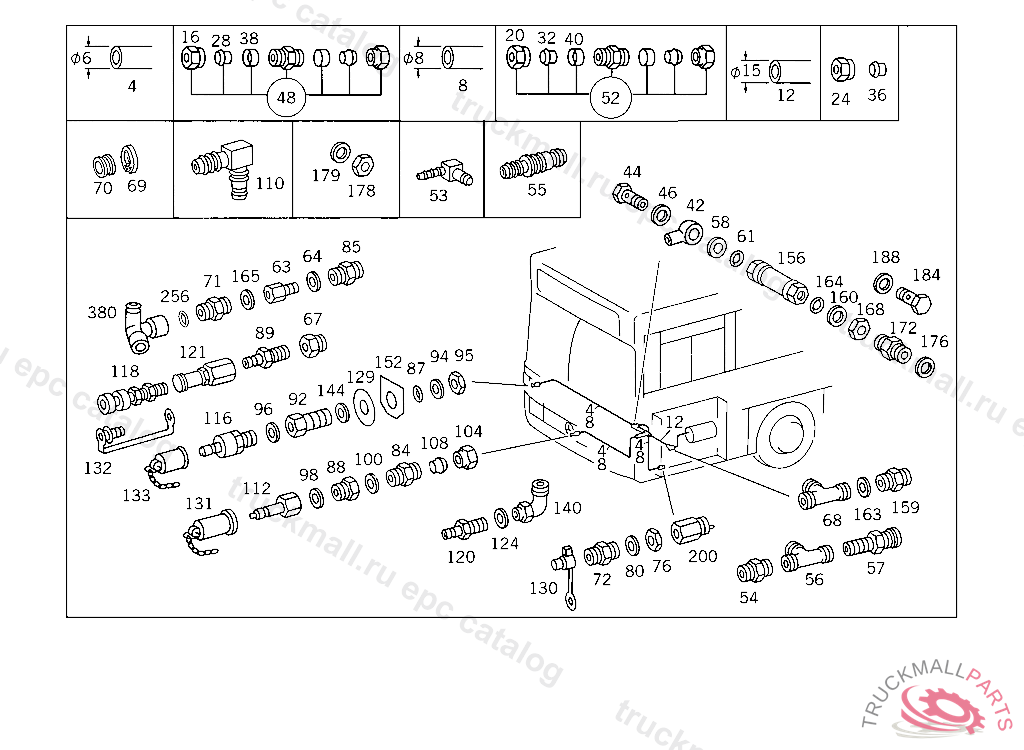

Поз.
Артикул
Описание
4
PLASTIC PIPE RISING PIPE 4X6 MM
4
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
PLASTIC PIPE AERATION, ORDER BY THE METER
12
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
16
UNION NUT
20
UNION NUT LINE CONNECTION
24
UNION NUT BUTT SCREW CONNECTION
28
GLAND , Replaced By: A0019901667
32
GLAND LINE CONNECTION
36
GLAND LINE CONNECTION
38
SLEEVE LEAK LINE
40
SLEEVE LINE CONNECTION
42
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
42
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
44
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
46
SEAL RINGTO 006 997 00 72
48
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
52
FITTING (PARTS KIT),LINE RUPTURE
52
FITTING , Replaced By: A0029905971
53
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
53
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
53
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
53
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
53
ELBOW FITTING
54
FITTING AT AIR RESERVOIR
55
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
55
CONNECTORTO M22 / 4MM / VOSS 230
55
CONNECTOR , Replaced By: A0029905378
56
T-FITTING POWER STEERING
57
FITTING RELAY VALVE,CONNECTION: "10",950459
58
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
61
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
63
FITTING DOOR I ENTRANCE
64
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
67
SCREW. UNION SCREW LINE CONNECTION
68
T-FITTING AIR DEHYDRATOR,CONNECTION: "21"
68
T-FITTING , Replaced By: N074317000100
69
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
69
LOCK LINE CONNECTION
69
LOCK , Replaced By: A0009945448
70
SEAL RING , Replaced By: A0009940747
70
LOCK RING LINE CONNECTION
70
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
71
FITTING AT BRACKET
71
CONNECTOR HOSE WIDTH, 6 MM, TO M22
72
FITTING , Replaced By: A0009977172
72
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
76
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
80
WASHER
80
WASHER , Replaced By: N000125013008
84
BULKHEAD FITTING BRAKE LINE COUPLING TO BRACKET
84
FITTING AT BRACKET
84
FITTING
84
FITTING (PARTS KIT),LINE RUPTURE
84
FITTING HYDRAULIC LINE TO BRACKET,K 130132
84
FITTING REFILLING CONNECTION
85
FITTING FITTING TO SUBSTRUCTURE
85
FITTING AT BRACKET
85
FITTING REFILLING CONNECTION,FRONT
87
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
88
SCREW. UNION SCREW LINE CONNECTION
88
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
88
SCREW. UNION SCREW , Replaced By: A0009973734
88
FITTING SHUTTLE VALVE,CONNECTIONS: "2,11,12"
89
CONNECTOR
92
FITTING RELAY VALVE,CONNECTION: "10",950459
92
FITTING AIR RESERVOIR
94
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
94
WASHER , Replaced By: N000125015019
95
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
96
SEAL RING
96
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
SEAL RING CONTROL VALVE,CONNECTION: "A,P"
100
SEAL RING LINE CONNECTION
104
UNION NUT LINE CONNECTION, Replaced By: N000000006239
104
UNION NUT LINE CONNECTION
108
GLAND , Replaced By: A0019901967
108
SEAL CONE LINE CONNECTION
110
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
112
TEST CONNECTION BULKHEAD FITTING
116
TEST CONNECTION COMPRESSED AIR SYSTEM
116
TEST CONNECTION IN FRONT END MOUNTED FLAP,RIGHT
116
TEST CONNECTION REFILLING CONNECTION,FRONT,072563 ALSO INSTALLED ON 071422
118
COUPLING REFILLING CONNECTION
120
CONNECTOR
120
CONNECTOR DOOR I ENTRANCE
121
TEST CONNECTION
124
SEAL RINGTO 000 553 03 05,000 553 18 05,
124
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
124
SEAL RING CONTROL VALVE,CONNECTION: "A,P"
129
GUIDE SIGN
129
UNIT IDENTIFICATION PLATE
130
PLUG
130
PLUG , Replaced By: A0009979486
131
PROTECTIVE CAP TEST CONNECTION
132
PROTECTIVE CAP REFILLING CONNECTION
132
PROTECTIVE CAP REFILLING CONNECTION
133
PROTECTIVE CAP TEST CONNECTION
140
ELBOW FITTING PRESSURE REGULATOR,CONNECTION: "21",051560
144
WASHER , Replaced By: N000125015019
144
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
152
BRACKET REFILLING CONNECTION,FRONT
152
BRACKET TEST CONNECTION
156
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
159
FITTING REFILLING CONNECTION,FRONT
160
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
160
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
163
SEAL RING CONTROL VALVE,CONNECTION: "A,P"
164
O-RING CHECK VALVE TO AIR RESERVOIR
164
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
165
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
168
NUT CHECK VALVE TO AIR RESERVOIR
172
TANK RECESS. T-FITTING LINE CONNECTION
172
FITTING LINE CONNECTION
172
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
172
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
172
FITTING 3/2-WAY SOLENOID VALVE,CONNECTION: "20",5 766895, 5 806950
172
FITTING
172
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
172
FITTING SHUTTLE VALVE,CONNECTIONS: "2,11,12"
176
SEAL RINGTO 006 997 00 72
176
SEAL RING LINE CONNECTION
178
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
179
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
179
WASHER , Replaced By: N000125015019
184
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
188
SEAL RINGTO 006 997 00 72
200
SWITCH (PRESSURE SWITCH) 4.5 BAR
200
PRESSURE SWITCH MAKE PULSE 0.5BAR
256
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
256
O-RING CHECK VALVE TO AIR RESERVOIR
380
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
TEST CONNECTION
999
CONNECTOR REFILLING CONNECTION,FRONT
999
COUPLING REFILLING CONNECTION,CENTER
999
FITTING FITTING TO BRACKET
999
BRACKET BRACKET TO BRACKET, NOT USED
999
BRACKET AT BRACKET,072562 EXCEPT FOR 071422
