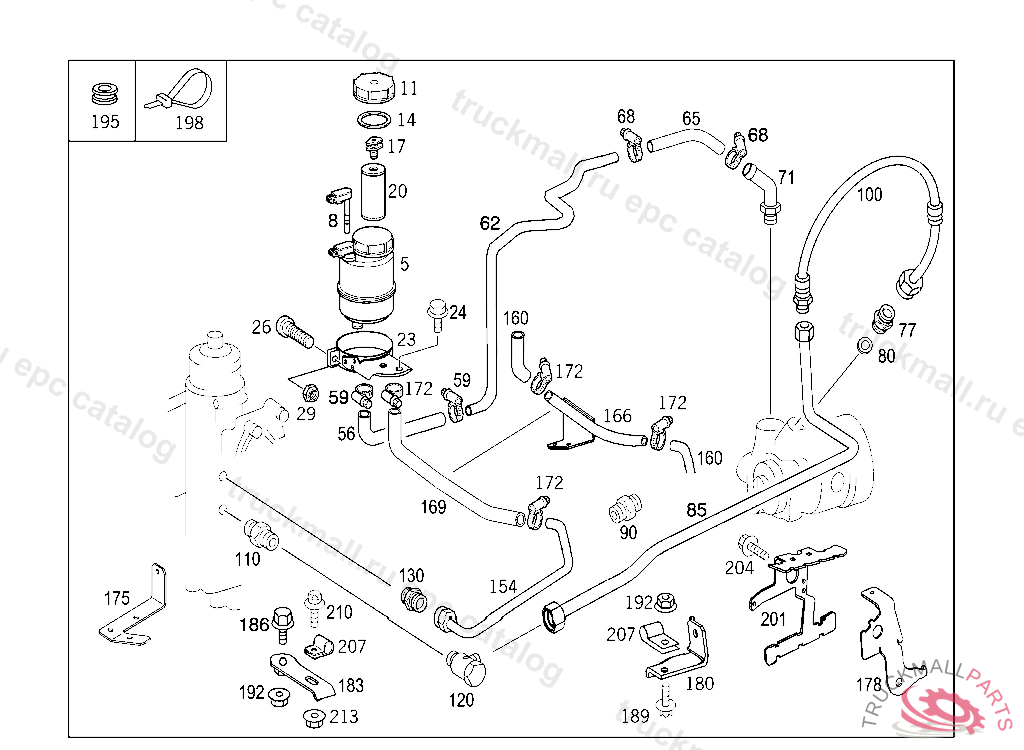

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
11
FILLER CAP , Replaced By: A0004661268
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
23
BRACKET OIL TANK
24
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
26
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
29
NUT HEATING PIPE TO BRACKET
56
HOSE FROM OIL TANK TO SUCTION LINE
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
65
HOSE SUCTION LINE CONNECTION, ORDER BY THE METER
68
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
68
CLAMP HOSE FASTENING
71
ELBOW FITTING
77
FITTING CONTROL DEVICE CONNECTION: P2
80
SEAL RINGTO 006 997 00 72
85
85
85
90
CONNECTION FITTING , Replaced By: A0049971772
100
HOSE (DELIVERY LINE),FROM PUMP TO STEERING 420 MM,225249
100
HOSE LINE. OIL LINE FROM PUMP TO DELIVERY LINE,5 944106K 033177
110
FITTING CONTROL DEVICE CONNECTION: P2
120
120
SCREW CONNECTION DELIVERY LINE TO PUMP
130
FITTING BETWEEN THE LINES
154
154
160
HOSE RETURN LINE CONNECTION 500MM, LENGTH AVAILABLE: 2000 MM
166
169
HOSE
172
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
180
183
186
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
189
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
192
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
195
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
198
CABLE TIE IONIC EXCHANGER 380X7.8MM
201
BRACKET AT STEERING GEAR LEFT
201
204
SCREW , Replaced By: N910143008000
207
PIPE CLAMP LINE MOUNTING 15-20MM, Replaced By: A0019958002
207
CLAMP LINE MOUNTING
207
PIPE CLAMP LINE MOUNTING 15-20MM
207
CLAMP LINE MOUNTING
210
HEXAGON HEAD BOLT COVERING TO CAB
210
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
213
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
