Mercedes N000000005892 - Хомут 130 / 150 X 13

3331 B - 3340 B 374.682

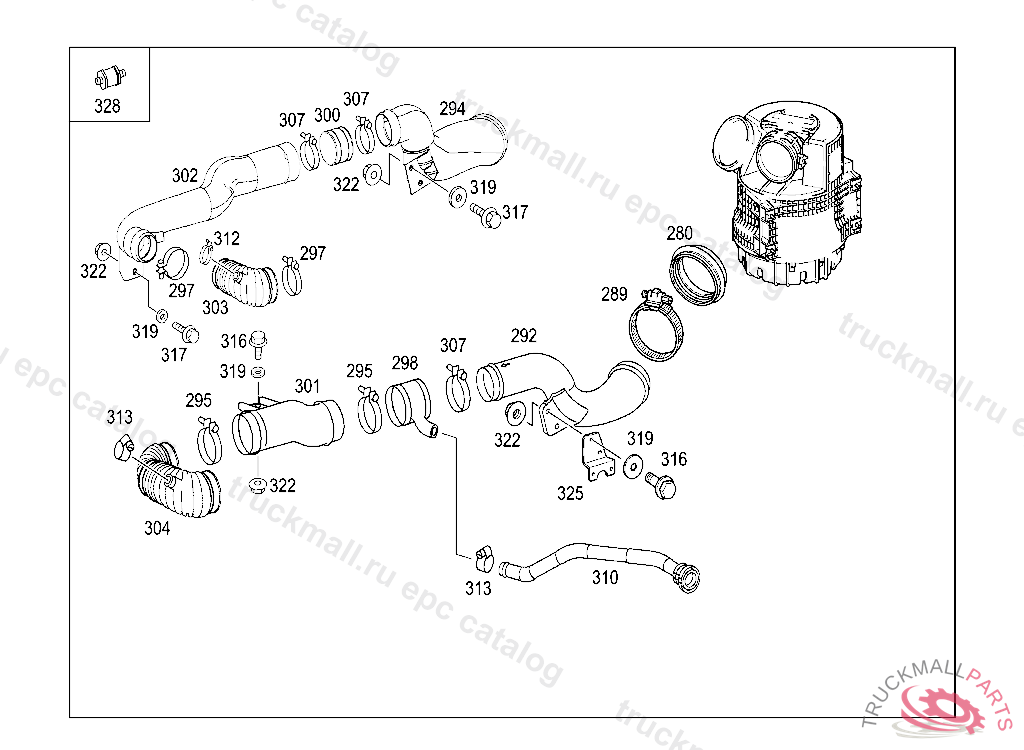

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 2

Поз.
Артикул
Описание
280
A9415280382
HOSE. ACCORDION TUBE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
289
N000000005896
CLAMP HOSE TO AIR CLEANER 180-200X12MM
292
A3755280507
292
A3755280607
295
N000000000677
CLAMP HOSE BETWEEN PIPE ELBOWS 120-140X13MM
295
N000000005891
CLAMP CONNECTING HOSE
298
A9405281782
302
A3755280107
304
A9405281982
307
N000000005892
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
307
N000000000678
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
307
N000000005891
CLAMP CONNECTING HOSE
310
A3755280707
313
N000000000668
CLAMP25-40X13 MM
316
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
319
N009021010209
WASHER BRACKET TO COVERING
322
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
325
A9415282440
BRACKET PIPE ELBOW
