Поз.
Артикул
Описание

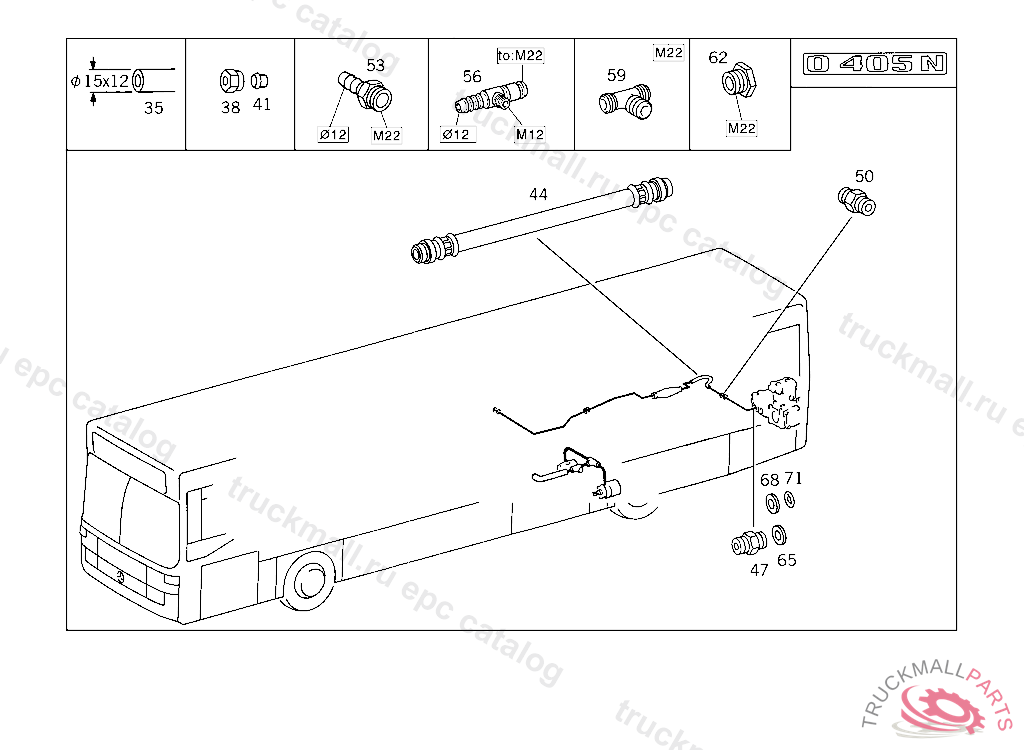

35
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
38
UNION NUT LINE CONNECTION
38
UNION NUT BUTT SCREW CONNECTION
41
GLAND LINE CONNECTION
44
BRAKE HOSE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
47
FITTING AT AIR COMPRESSOR
50
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
53
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
56
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 12 MM
59
T-FITTING LINE CONNECTION TO AIR COMPRESSOR
62
SCREW. UNION SCREW LINE CONNECTION
65
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
68
THRUST RING SUCTION LINE TO OIL PUMP
71
SEAL RING LINE CONNECTION
