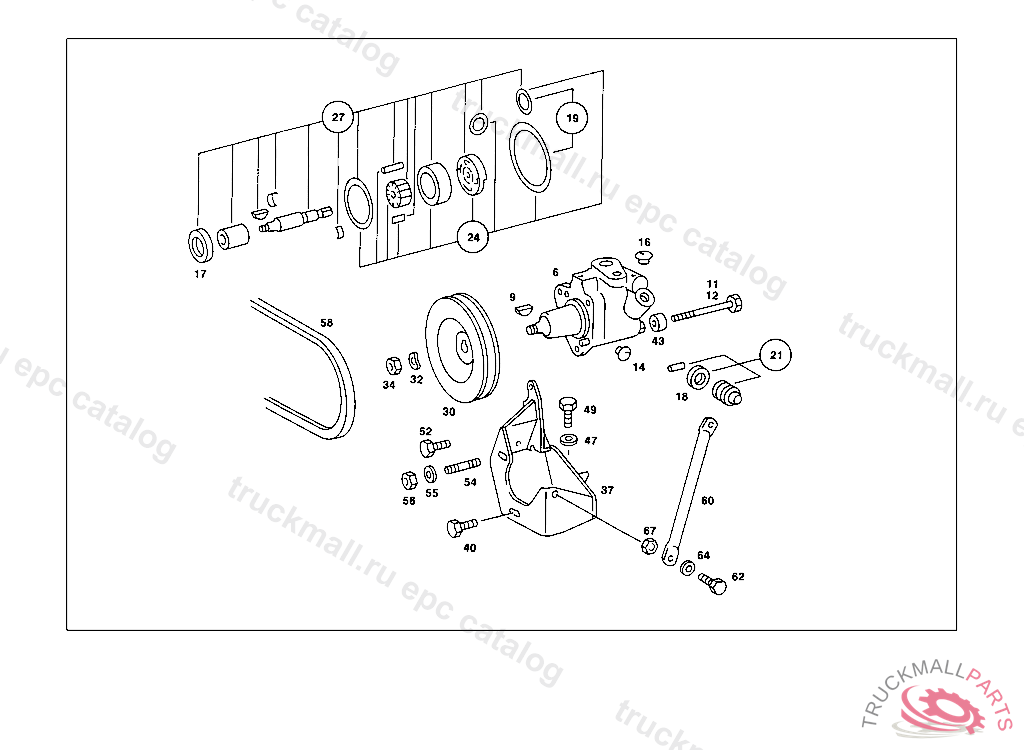

Поз.
Артикул
Описание
6
HYDRAULIC PUMPVICKERS, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
9
KEY
11
SCREW
12
SCREW
14
SEAL CONE
16
SEAL CONE RETURN
17
SEAL RING
17
SEAL RING , Replaced By: A0189976047
17
SEAL RING , Replaced By: A0069970247
18
SEAL RING PRESSURE VALVE TO 127 460 12 80
19
REPAIR KIT
21
REPAIR KIT PRESSURE VALVE, 115.923 10/50,20/60 199507 115.923 12/52,22/62 038332 115.926 10/50,20/60 015177 115.926 12/52,22/62 000641 115.951 10/50,20/60 035338 115.951 12/52,22/62 020861 615.912 10/50,20/60 370686 615.912 12/52,22/62 040241 615.913 10/50,20/60 281607 615.913 12/52,22/62 007897 616.916 10/50,20/60 074052 616.916 12/52,22/62 021071 617.910 10/50,20/60 013643 617.910 12/52,22/62 009007
24
REPAIR KIT
27
REPAIR KIT
30
PULLEY
32
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
34
NUT , Replaced By: N308673014001
34
NUT BRACKET TO SIDE MEMBER,K 035196
37
BRACKET
40
SCREW STRUT TO CROSS MEMBER M 10X25
40
SCREW , Replaced By: N304017010040
43
SPACER RING 12,25 MM 12.25 MM, AS REQUIRED
43
SPACER RING 11,25 MM, AS REQUIRED
43
SPACER RING 12,00 MM 12.00 MM, AS REQUIRED
43
SPACER RING 11,75 MM, AS REQUIRED
43
SPACER RING *** 11.00 MM
43
SPACER RING 11,50 MM, AS REQUIRED
47
WASHER 3/2-WAY VALVE TO BRACKET
49
SCREW , /7 : 616.916 10/50,20/60 053449 /7 : 616.916 12/52,22/62 014229 /10: 615.912 10/50,20/60 355368 /10: 615.912 12/52,22/62 038528 /10: 915.913 10/50,20/60 239223 /10: 615.913 12/52,22/62 006642
52
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
52
SCREW , Replaced By: N304017008039
54
STUD BOLT CYLINDER HEAD TO CYLINDER LINER
55
WASHER EXHAUST MUFFLER TO STRAP
55
WASHER , Replaced By: N000125008443
56
NUT
58
V-BELT HYDRAULIC PUMP 12.5X750
58
V-BELT , Replaced By: A0069970992
60
STIFFENING , 615.912 10/50,20/60 323619 615.912 12/52,22/62 035480 615.913 10/50,20/60 185524 915.913 12/52,22/62 005126 616.916 10/50,20/60 000120 616.916 12/52,22/62 000044
62
SCREW , Replaced By: N304017008021
62
SCREW PIPE CLAMP
64
WASHER EXHAUST MUFFLER TO STRAP
64
WASHER , Replaced By: N000125008443
67
NUT
999
THREADED INSERT (AT OIL PAN)
999
V-BELT , Replaced By: A0049979592
999
REPAIR KIT , NO LONGER AVAILABLE
