Главная
›
Mercedes
›
TRUCK
›
1419 C,1420
›
616.046
›

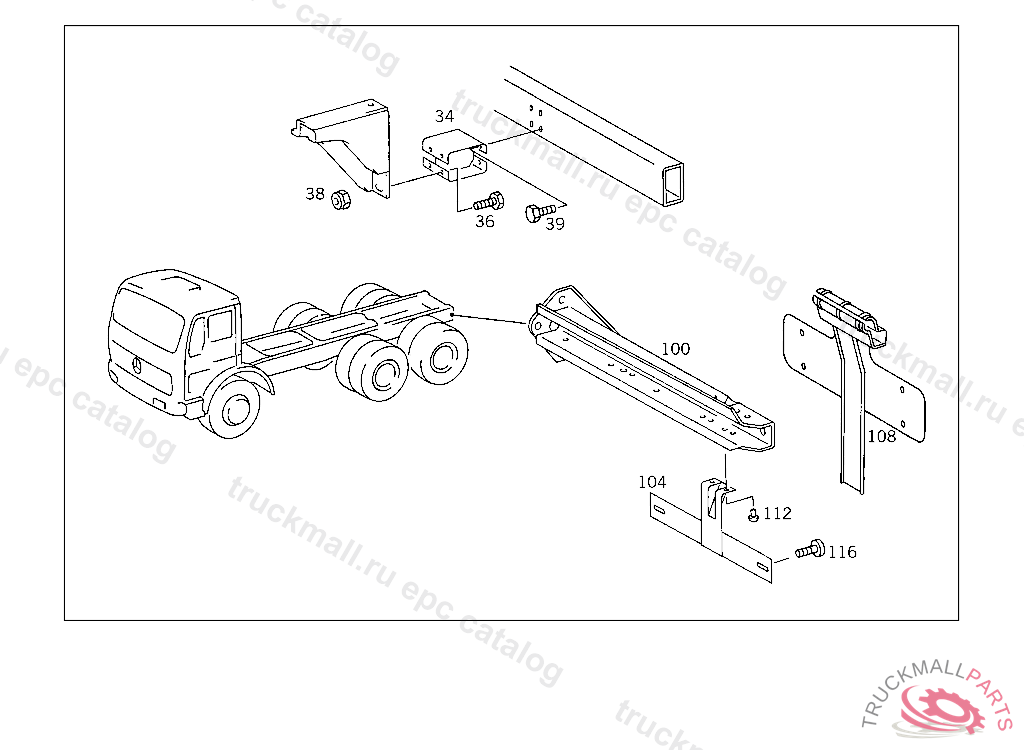

52 CHASSIS SHEET METAL
›
001 UNDERRUN PROTECTION, E C VERSION IL.1
Mercedes A3525405273 - ДЕРЖАТЕЛЬ
1419 C,1420 616.046
52 CHASSIS SHEET METAL - 001 UNDERRUN PROTECTION, E C VERSION IL.1
Поз.
Артикул
Описание
34
A6255202832
STAY
34
A6175200132
STAY
36
N304017010002
SCREW BRACKET TO SIDE MEMBER
36
N000933010128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
36
N000933010129
SCREW , Replaced By: N304017010002
38
N910113010000
NUT STRAP TO BRACKET
38
N913004010008
NUT , Replaced By: N910113010000
39
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
100
A3815400173
BRACKET TAIL LAMP
104
A3815200941
BRACKET LICENSE PLATE
108
A6195200041
BRACKET TAIL LAMP
112
N910006008000
RIVET ,5 453766
116
N000000001145
SCREW BRACKET TO COVERING
116
N007985006157
SCREW , Replaced By: N000000001145
999
A0009903792
EXPANSION RIVET UNDERRUN PROTECTION CROSS MEMBER
999
A3525405173
BRACKET TAIL LAMP,5 453766
999
A3525405273
BRACKET TAIL LAMP,5 453766
999
A3525440538
BRACKET REFLECTOR
999
A6175200241
BRACKET RIGHT TAIL LAMP
999
A6175200341
BRACKET LEFT TAIL LAMP
999
A6205220024
COVERING AT TAIL LAMP BRACKET
