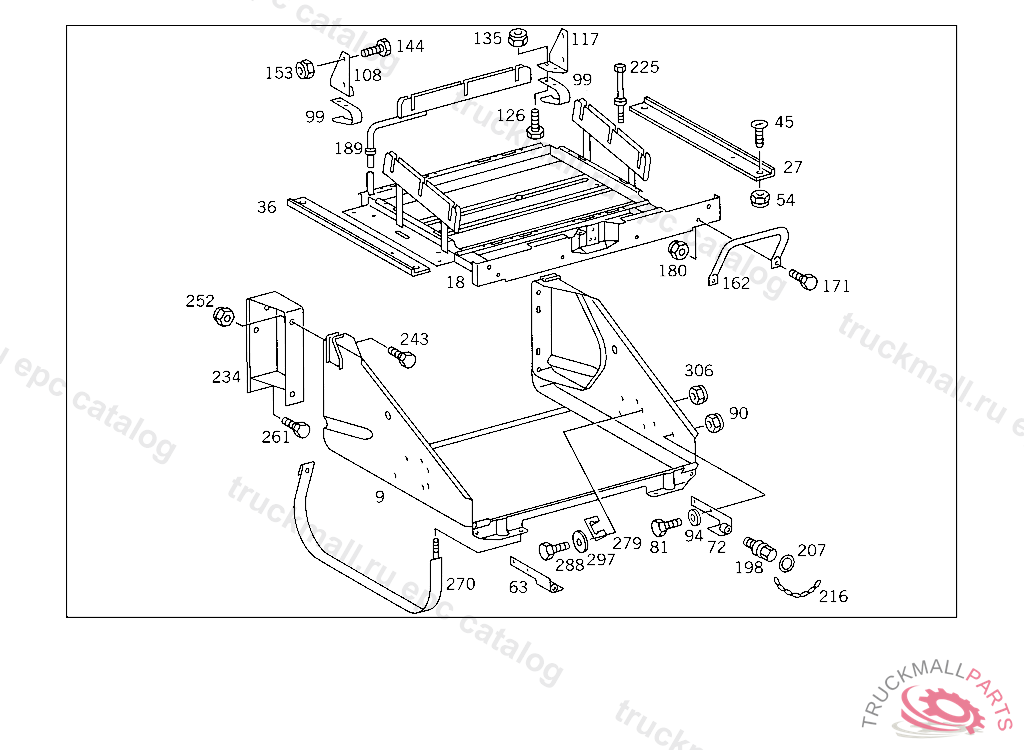

Поз.
Артикул
Описание
9
BATTERY SUPPORT
18
BATTERY BASE FRAME BATTERY BASE FRAME
27
RAIL REAR
36
RAIL FRONT
45
SCREW REINFORCEMENT TO ROCKER PANEL
54
NUT , Replaced By: N910113010000
54
NUT STRAP TO BRACKET
63
STOP FRONT
72
STOP REAR
81
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
81
SCREW REAR EXHAUST PIPE TO MUFFLER
90
NUT , Replaced By: N910113010000
90
NUT STRAP TO BRACKET
94
WASHER BRACKET TO SIDE MEMBER
99
SPRING AT BATTERY FRAME
108
BRACKET SPRING
117
BRACKET SPRING
126
SCREW CLAMP TO BRACKET AND TO PIPE
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
135
NUT , Replaced By: N913004008001
144
SCREW SUPPORT TO CROSS MEMBER M 10X28
153
NUT STRAP TO BRACKET
153
NUT , Replaced By: N910113010000
162
HANDLE AT BATTERY FRAME
171
SCREW CLAMP TO BRACKET AND TO PIPE
180
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
180
NUT , Replaced By: N913004008001
189
RAIL GUIDE RAIL
198
SCREW BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
207
CHAIN BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
216
RING BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
225
SCREW BATTERY BASE FRAME DETENT
234
SUPPORT APPARATUS SUPPORT
243
SCREW , Replaced By: N308676014020
243
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
243
SCREW APPARATUS SUPPORT M 14X1.5X165
252
NUT , Replaced By: N910113014001
252
NUT BRACKET TO SIDE MEMBER
261
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
270
STRAP , Replaced By: A6204300040
270
STRAP SERVICE BRAKE AIR RESERVOIR
279
ANGLE
288
SCREW , Replaced By: N304017006016
288
SCREW PUMP TO BRACKET
288
SCREW COVER PLATE TO BRACKET
297
WASHER , Replaced By: N009021006208
297
WASHER COMPRESSED AIR LINE TO BRACKET
306
NUT , Replaced By: N913004006001
306
NUT PUMP TO BRACKET
999
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
999
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
