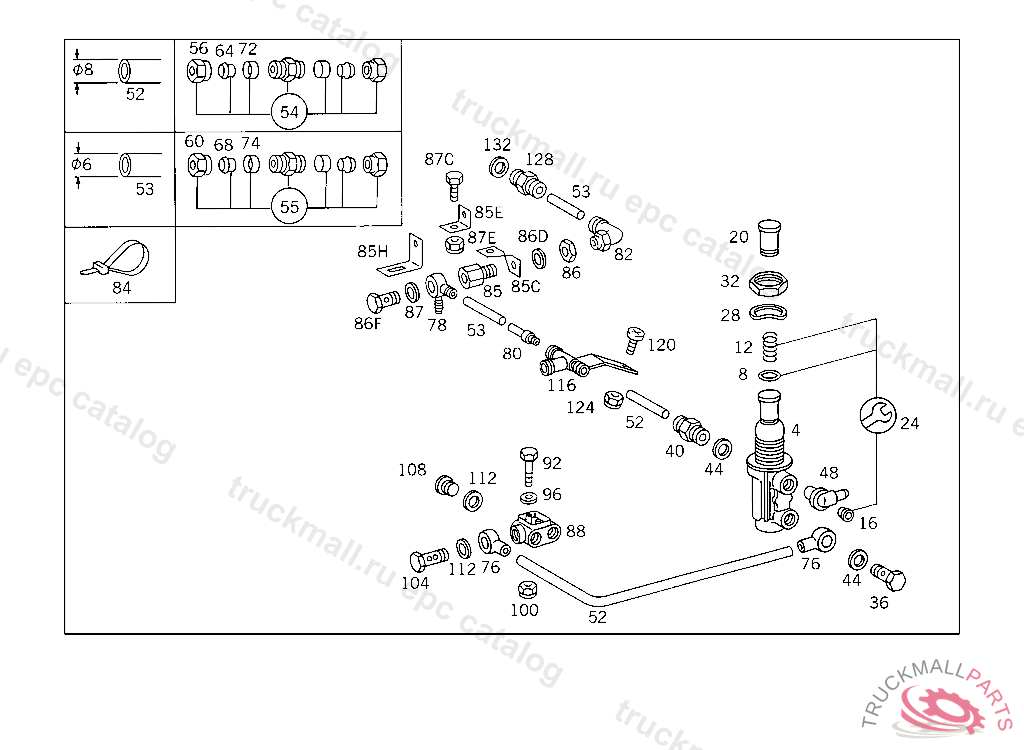

Поз.
Артикул
Описание
4
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
4
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
8
SEAL RINGTO 000 434 21 01
12
SPRINGTO 000 434 21 01
16
STRAINERTO 000 434 21 01
20
HANDLETO 000 434 23 01
24
REPAIR KIT 3/2-WAY VALVE BOSCH
24
REPAIR KIT 3/2-WAY VALVE WABCO
28
SPRING WASHER AT CAB FLOOR
32
NUT SUCTION LINE TO OIL PUMP
36
HOLLOW SCREW HEATING CONNECTION
40
FITTING LINE CONNECTION, Replaced By: N000000006446
44
SEAL RING LINE CONNECTION
48
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
48
BREATHER , Replaced By: A3933280065
52
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
53
PLASTIC PIPE RISING PIPE 4X6 MM
53
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
54
FITTING (PARTS KIT),LINE RUPTURE
54
FITTING , Replaced By: A0029905971
55
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
56
UNION NUT LINE CONNECTION
60
UNION NUT
64
GLAND LINE CONNECTION
68
SEAL CONE
68
GLAND , Replaced By: A0019901667
72
SLEEVE LINE CONNECTION
74
SLEEVE LEAK LINE
76
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
78
BANJO UNION COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER
82
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
84
LOOM TIE LINE MOUNTING
84
LOOM TIE LINE MOUNTING 280 MM
85
FITTING PRESSURE REGULATOR,CONNECTION: "40"
86
NUT SUPPORT TO SIDE MEMBER
87
SEAL RING LINE CONNECTION
88
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
92
SCREW APPARATUS PLATE M 6X45
92
SCREW , Replaced By: N304017006027
96
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
100
NUT PUMP TO BRACKET
100
NUT , Replaced By: N913004006001
104
HOLLOW SCREW LINE CONNECTION
108
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
108
SCREW PLUG , Replaced By: N000908012009
112
SEAL RING LINE CONNECTION
116
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
120
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
124
NUT PUMP TO BRACKET
124
NUT , Replaced By: N913004006001
999
BRACKET , Replaced By: A6454310740
999
BRACKET FUEL LINE TO BELL HOUSING
999
WASHER
999
SCREW , Replaced By: N304017008016
999
FITTING , Replaced By: A0019909871
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
