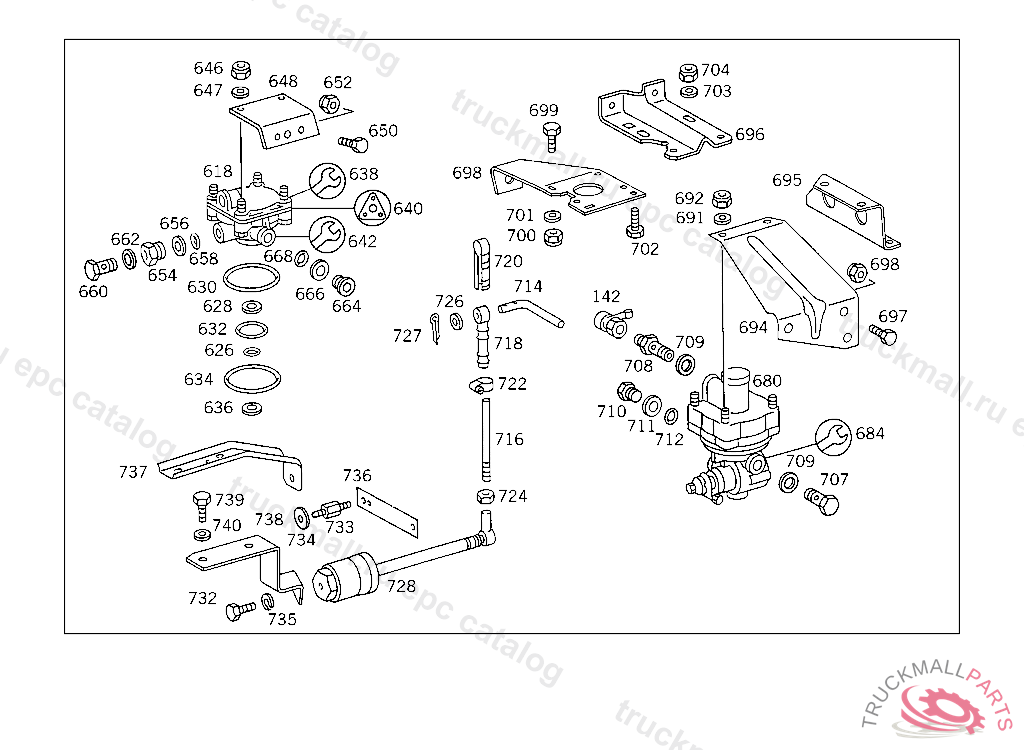

Поз.
Артикул
Описание
142
TEST CONNECTION
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
142
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
618
VALVE (RELAY VALVE) GRAU
618
VALVE (RELAY VALVE) KNORR
618
VALVE (RELAY VALVE) BOSCH
618
VALVE (RELAY VALVE) WABCO
626
SEAL RING22.3X2.4 MM,GRAU
628
VALVE SEATGRAU
630
SEAL RINGTO 000 429 28 95,GRAU
632
SEAL RING28X2 MM,GRAU
634
SEAL RING86X2 MM,GRAU
636
GASKET34X2X6 MM,GRAU
638
REPAIR KITTO 003 429 53 44,KNORR
638
REPAIR KITWABCO
640
VALVEBOSCH
640
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
640
REPAIR KIT , Replaced By: A0004201071
642
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
642
REPAIR KIT , Replaced By: A0004301109
646
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
646
NUT , Replaced By: N913004008001
648
BRACKET RELAY VALVE
650
SCREW END PIECE TO EXHAUST PIPE M 10X25
652
NUT STRAP TO BRACKET
652
NUT , Replaced By: N910113010000
654
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
656
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
658
O-RING CHECK VALVE TO AIR RESERVOIR
660
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
662
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
664
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
666
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
668
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
680
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
680
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH
680
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
684
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
684
REPAIR KIT , Replaced By: A0004300207
684
REPAIR KIT VALVE BOSCH
684
REPAIR KIT BRAKE POWER REGULATOR WABCO
684
REPAIR KIT BRAKE POWER REGULATOR
692
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
692
NUT , Replaced By: N913004008001
694
BRACKET BRAKE POWER REGULATOR, NOT USED
697
SCREW BRACKET TO SIDE MEMBER
704
NUT COMBINATION CYLINDER TO BEARING BRACKET
704
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
707
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
708
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
709
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
714
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
714
LEVER , Replaced By: A6744310039
716
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
718
CONNECTOR PULL ROD TO LEVER
720
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
722
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
722
CLAMP , Replaced By: N000000000665
724
NUT
726
WASHER EXHAUST MUFFLER TO STRAP
726
WASHER , Replaced By: N000125008443
727
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
728
METAL SPRING BELLOWS ,4 9579425 498312
728
METAL SPRING BELLOWS ,5 557359
732
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
735
LOCK WASHER FITTING TO BRACKET
737
BRACKET METAL SPRING BELLOWS
737
BRACKET METAL SPRING BELLOWS,5 356526
739
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
739
SCREW , Replaced By: N308676012012
740
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
ADAPTER FITTING , Replaced By: A0004296934
999
CONNECTOR REPAIR SIZE
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
REPAIR KIT COVERING BOSCH
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
VALVE , Replaced By: A0024314006
999
VALVE (CHECK VALVE) WABCO
999
SEAL RING , Replaced By: A0049972248
999
GUMMED LABEL PARKING BRAKE ACTUATION
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
STUD BOLT BRACKET TO CYLINDER BLOCK, REAR,5 171760
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
