Поз.
Артикул
Описание

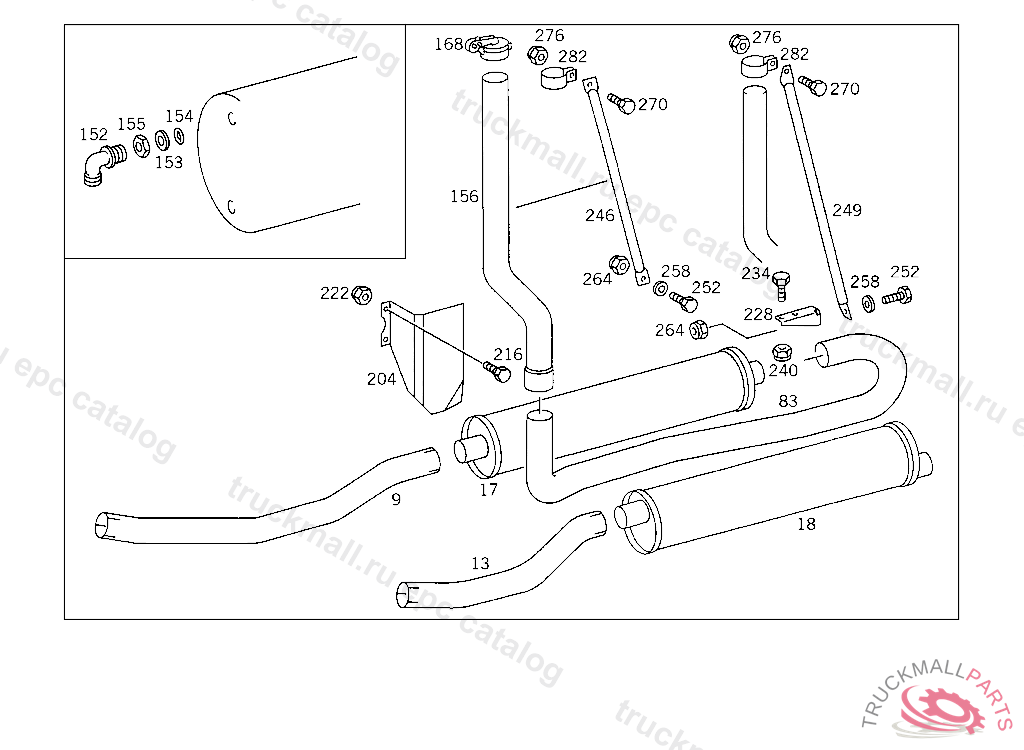

9
EXHAUST PIPE FRONT,REAR PART
13
EXHAUST PIPE FRONT,REAR PART
17
EXHAUST MUFFLER
18
EXHAUST MUFFLER
83
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
83
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
83
CONNECTOR FROM EXHAUST MUFFLER TO CAB REAR PANEL
152
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
153
THRUST RING CHECK VALVE TO AIR RESERVOIR
153
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
154
O-RING CHECK VALVE TO AIR RESERVOIR
155
NUT CHECK VALVE TO AIR RESERVOIR
156
REAR EXHAUST PIPE
156
REAR EXHAUST PIPE BEHIND CAB,UPWARD
156
REAR EXHAUST PIPE BEHIND CAB,UPWARD
156
END PIECE BEHIND CAB,UPWARD
156
REAR EXHAUST PIPE
168
FLAP (RAIN DEFLECTOR)
168
FLAP (RAIN DEFLECTOR)
168
FLAP (RAIN DEFLECTOR)
204
PROTECTIVE PLATE (HEAT SHIELD)
204
PROTECTIVE PLATE (HEAT SHIELD)
216
SCREW BRACKET TO SIDE MEMBER
216
SCREW BRACKET TO SIDE MEMBER
216
SCREW BRACKET TO SIDE MEMBER
216
SCREW BRACKET TO SIDE MEMBER
216
SCREW , Replaced By: N304017010002
222
NUT STRAP TO BRACKET
222
NUT STRAP TO BRACKET
222
NUT STRAP TO BRACKET
222
NUT , Replaced By: N910113010000
228
BRACKET TAIL PIPE
234
SCREW BRACKET TO CROSS CONNECTION STRUT
234
SCREW , Replaced By: N304017008034
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT , Replaced By: N913004008001
246
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
249
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
252
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
252
SCREW BRACKET TO SIDE MEMBER
258
WASHER BRACKET TO SIDE MEMBER
258
WASHER BRACKET TO SIDE MEMBER
264
NUT BRACKET TO SIDE MEMBER
264
NUT BRACKET TO SIDE MEMBER
264
NUT , Replaced By: N910113014001
264
NUT STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
270
SCREW BRACKET TO SIDE MEMBER
270
SCREW BRACKET TO SIDE MEMBER
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
270
SCREW BRACKET TO SIDE MEMBER
270
SCREW , Replaced By: N304017010002
276
NUT STRAP TO BRACKET
276
NUT STRAP TO BRACKET
276
NUT STRAP TO BRACKET
276
NUT , Replaced By: N910113010000
282
CLAMP , Replaced By: A6454921140
282
CLAMP EXHAUST PIPE TO BRACKET
282
CLAMP EXHAUST PIPE TO BRACKET
282
CLAMP EXHAUST PIPE TO BRACKET
999
PROTECTIVE PLATE FUEL TANK
999
END PIECE , Replaced By: A6524926714
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE
999
END PIECE REAR EXHAUST PIPE,5 298310
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET TAIL PIPE
999
BRACKET , Replaced By: A6524921441
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE FROM EXHAUST MUFFLER TO CAB REAR PANEL
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
END PIECE LEFT
999
END PIECE RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
BRACKET EXHAUST PIPE TO FENDER
999
BRACKET TAIL PIPE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
PROTECTIVE PLATE (HEAT SHIELD)
