Поз.
Артикул
Описание

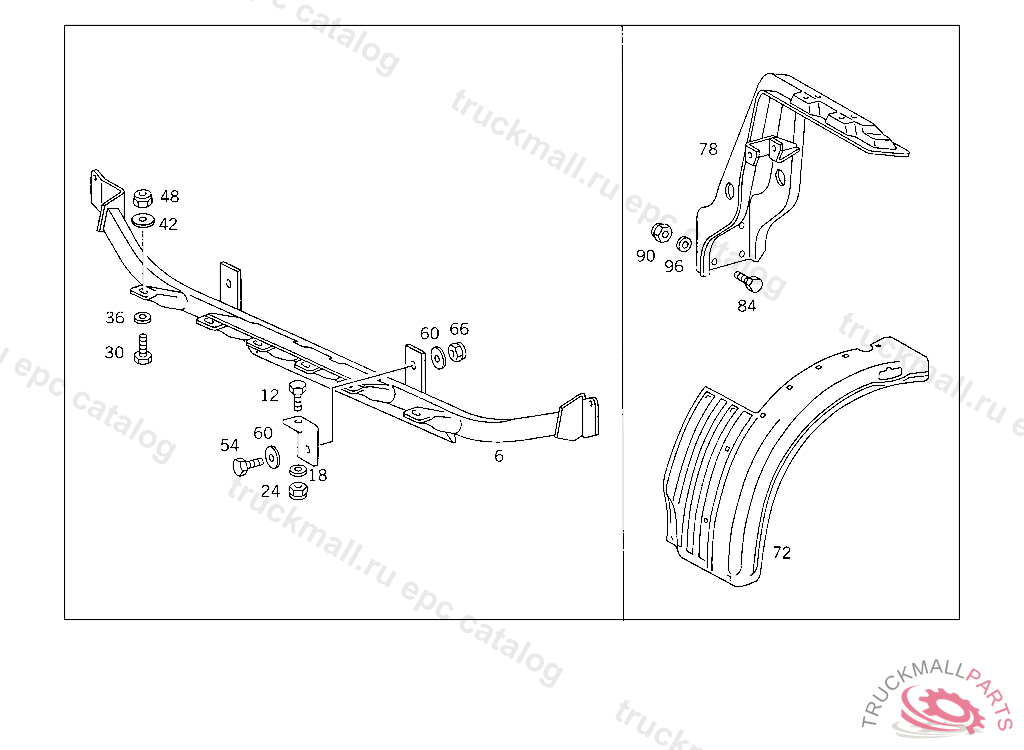

6
COVERING RADIATOR
12
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
12
SCREW , Replaced By: N308676012011
18
WASHER
24
NUT SUPPORT TO SIDE MEMBER
30
SCREW CONSOLE TO SIDE MEMBER
36
WASHER
42
WASHER , Replaced By: N007349013005
42
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
48
NUT SUPPORT TO SIDE MEMBER
54
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
60
WASHER COVER PLATE TO FRAME
66
NUT SUPPORT TO SIDE MEMBER
72
FRONT FENDER REAR LEFT
72
FRONT FENDER REAR RIGHT
78
BRACKET LEFT FENDER
78
BRACKET FENDER AND SHOCK ABSORBER,RIGHT
84
SCREW , Replaced By: N304017008024
84
SCREW , Replaced By: A9429901304
84
SCREW BRACKET TO EXHAUST PIPE BRACKET
84
SCREW APPARATUS SUPPORT TO FRAME
90
NUT STEERING SUPPORT TO FRAME
90
NUT STRAP TO BRACKET
90
NUT , Replaced By: N910113014000
96
WASHER FENDER BRACKET TO SIDE MEMBER
