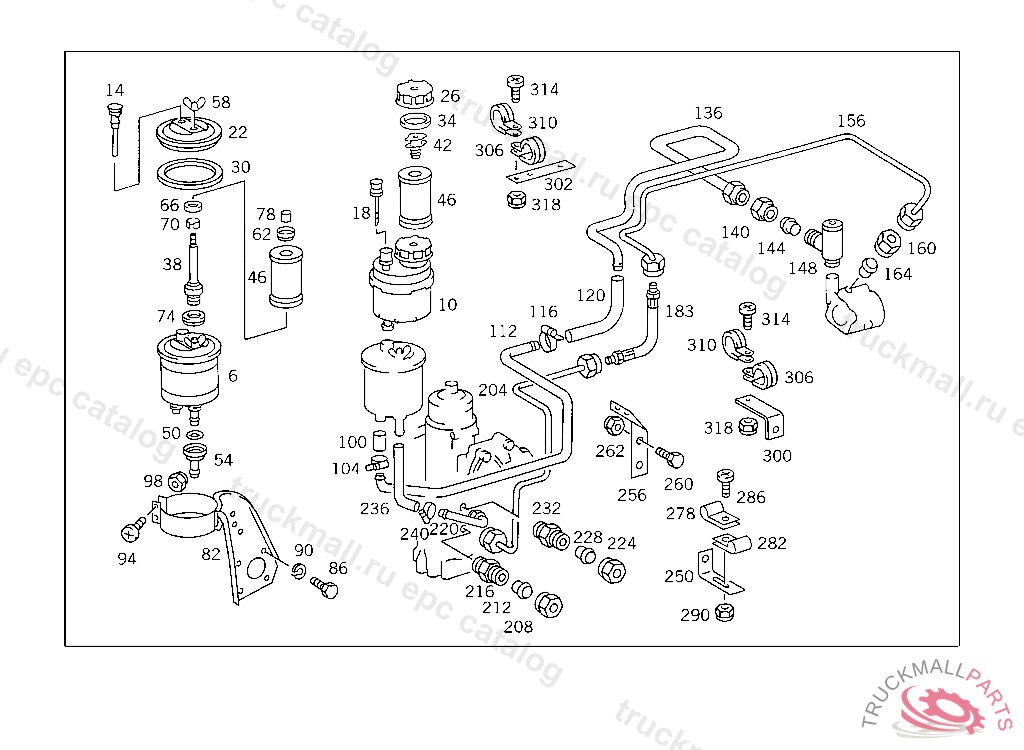

Поз.
Артикул
Описание
6
TANK , Replaced By: A0004664502
10
TANK OIL
14
PIPETO 000 466 38 02
18
OIL DIPSTICK
18
OIL DIPSTICK , Replaced By: A0004660867
22
COVERTO 000 466 38 02
26
FILLER CAP
30
SEAL RINGTO 000 466 38 02
34
SEAL RING
38
FILTER CARRIERTO 000 466 38 02
42
BRACKET
46
FILTER
50
SEAL RINGTO 000 466 38 02
54
CONNECTORTO 000 466 38 02
58
NUTTO 000 466 38 02
62
CENTERING RINGTO 000 466 38 02
66
SPACER WASHERTO 000 466 38 02
66
WASHER , Replaced By: A9402680552
70
SPACER TUBETO 000 466 38 02
74
COVER PLATETO 000 466 38 02
78
RUBBER SLEEVETO 000 466 38 02
82
BRACKET OIL TANK
86
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
86
SCREW , Replaced By: N304017010028
90
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
94
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
94
SCREW , Replaced By: N000000001149
94
SCREW , Replaced By: A0029903712
98
NUT PUMP TO BRACKET
98
NUT , Replaced By: N913004006001
100
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
100
HOSE , Replaced By: A3859971582
100
HOSE , Replaced By: A3859971582
104
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
104
CLAMP , Replaced By: N000000000667
112
LINE , NOT USED
116
CLAMP25-40X13 MM
116
CLAMP25-40X13 MM
116
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
116
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
116
CLAMP , Replaced By: N000000000667
120
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
120
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
120
HOSE , Replaced By: A3859971582
136
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP 22X1,5 MM,5 360279
140
UNION NUT LINE CONNECTION, Replaced By: N000000006243
144
SEAL CONE LINE CONNECTION
144
GLAND , Replaced By: A0019901267
148
ELBOW FITTING SUCTION LINE TO OIL PUMP
156
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 033177
160
UNION NUT LINE CONNECTION, Replaced By: N000000006239
164
SEAL CONE LINE CONNECTION
164
GLAND , Replaced By: A0019901967
183
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
183
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
183
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
204
LINE , NOT USED
208
UNION NUT LINE CONNECTION, Replaced By: N000000006239
212
SEAL CONE LINE CONNECTION
212
GLAND , Replaced By: A0019901967
216
SCREW-IN FITTING DELIVERY LINE TO PUMP
220
LINE FROM STEERING TO OIL TANK
224
UNION NUT LINE CONNECTION
228
GLAND LINE CONNECTION
232
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
236
HOSE , NOT USED
236
HOSE , Replaced By: A3859971682
236
HOSE , Replaced By: A6999974082
240
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
240
CLAMP HOSE TO FITTING AND TO OIL TANK
250
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
256
BRACKET DELIVERY AND SUCTION LINES TO FRAME
260
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
260
SCREW , Replaced By: N308676012026
262
NUT SUPPORT TO SIDE MEMBER
278
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
278
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
282
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
286
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
290
NUT PUMP TO BRACKET
290
NUT , Replaced By: N913004006001
300
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
300
BRACKET , Replaced By: A6205244040
300
BRACKET , Replaced By: A3044760335
302
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
302
BRACKET , Replaced By: A3604293140
306
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
306
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
310
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
310
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
314
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
318
NUT PUMP TO BRACKET
318
NUT , Replaced By: N913004006001
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
NUT DRAG LINK END M 24X1.5
999
FITTING DELIVERY LINE TO PUMP
999
SEAL RING INSIDE
999
PROTECTIVE CAP
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III III NO.9051II I
999
BRACKET DELIVERY AND SUCTION LINES TO AIR COMPRESSOR,5 402173
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 171759
999
BRACKET OIL TANK
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220267 NO.8316INO.7C52INO.7B90INO.9051I II I
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
CAP STEERING SUPPORT
999
COTTER PIN DRAG LINK TO LEVER
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
999
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
