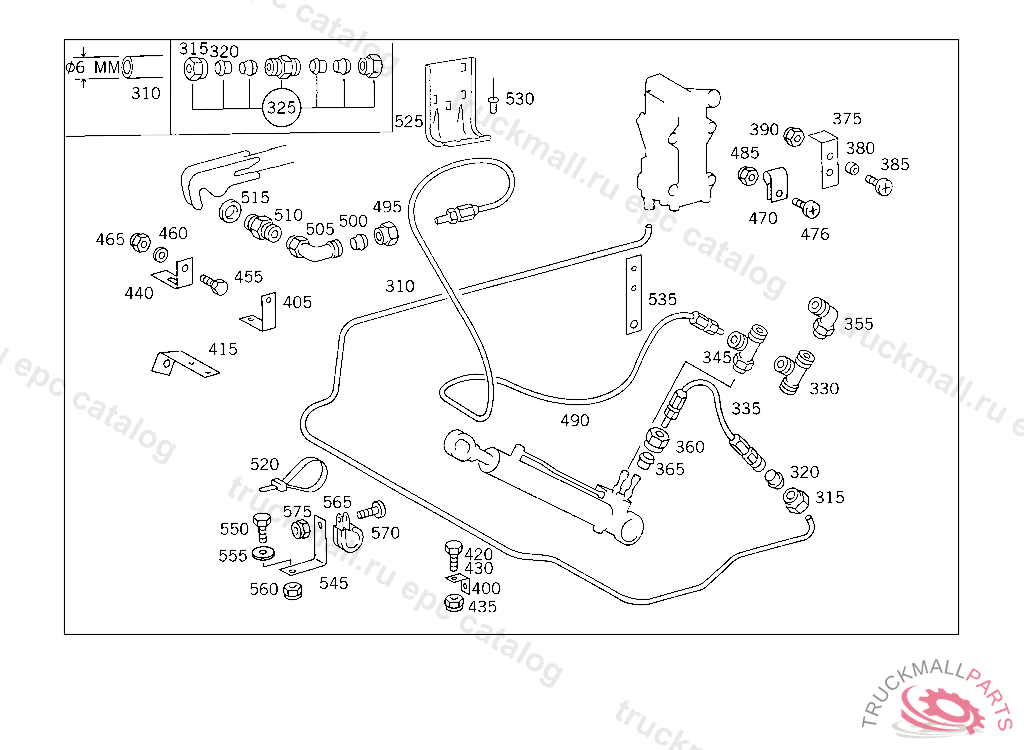

Поз.
Артикул
Описание
310
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
315
UNION NUT
320
GLAND , Replaced By: A0019901667
320
SEAL CONE
335
HOSE FROM HYDRAULIC LINE TO CYLINDER
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
360
UNION NUT
365
GLAND , Replaced By: A0019901667
365
SEAL CONE
375
BRACKET OIL LINE MOUNTING,5 129244
380
SPACER TUBE , Replaced By: A4082910153
380
SPACER TUBE
385
SCREW OIL TANK TO BRACKET
390
NUT PUMP TO BRACKET
400
ANGLE LINE MOUNTING
415
BRACKET AT CAB SIDE MEMBER
430
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
435
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
470
CLAMP LINE MOUNTING
476
SCREW CLAMP TO BRACKET
485
NUT PUMP TO BRACKET
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
495
UNION NUT
500
SEAL CONE
500
GLAND , Replaced By: A0019901667
505
FITTING , Replaced By: A0019909871
505
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
510
FITTING 3/2-WAY VALVE,CONNECTION: "30"
515
SEAL RING PNEUMATIC VALVE
515
SEAL RING , Replaced By: N007603010110
520
LOOM TIE LINE MOUNTING
520
LOOM TIE LINE MOUNTING 280 MM
525
BRACKET HIGH PRESSURE HOSE TO CAB
530
RIVET , NOT USED
999
VALVETO 000 553 23 01,000 553 37 01,
999
FITTINGWEBER,TO 001 553 35 05
999
SCREW , Replaced By: A0009901310
999
SCREW OIL FILLING TO 000 553 89 01
999
GROMMET LINE THRU FRAME
999
NUT , Replaced By: N000979016008
999
NUT LEVER
