Поз.
Артикул
Описание

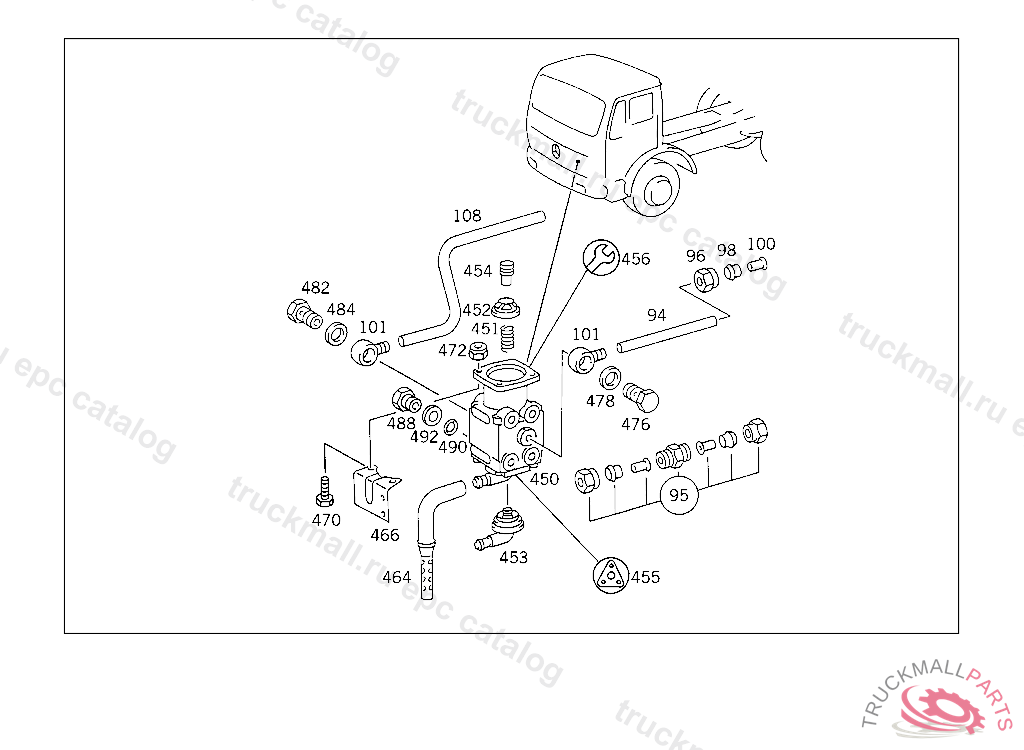

94
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
95
FITTING (PARTS KIT),LINE RUPTURE
95
FITTING , Replaced By: A0029905971
96
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
100
SLEEVE LINE CONNECTION
101
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
108
HOSE LEAK LINE, ORDER BY THE METER
450
BRAKE VALVE (SERVICE BRAKE VALVE) GRAU
450
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
450
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
450
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
451
SPRINGBOSCH
452
FILLER RINGTO 001 431 83 05,WABCO
453
BREATHER PIPETO 001 431 83 05,WABCO
454
PISTONTO 001 431 83 05,WABCO
456
REPAIR KIT , Replaced By: A0004308006
456
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
456
REPAIR KIT SERVICE BRAKE VALVE BOSCH
456
REPAIR KITKNORR
456
REPAIR KIT (SERVICE BRAKE VALVE) WABCO
464
BREATHER PIPE TWO-CIRCUIT BRAKE VALVE BLEEDING
464
BREATHER PIPE AT BRAKE VALVE
466
BRACKET TRUCK-TRACTOR BRAKE VALVE
470
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
470
SCREW , Replaced By: N304017008027
472
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
472
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
472
NUT , Replaced By: N913004008001
482
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
484
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
488
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
490
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
492
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
SEAL RING , Replaced By: N007603012121
999
UNION NUT LINE CONNECTION
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
SCREW CONSOLE TO FRAME
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
999
WASHER STRAP TO SUPPORT
999
SCREW , Replaced By: N308676016020
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
BRACKET BRAKE POWER REGULATOR
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
CLAMP BRAKE HOSE
999
LEVER , Replaced By: A6744310039
999
FITTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
BRAKE HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
ADHESIVE FOIL GUIDE SIGN
999
LEVER , Replaced By: A6204310839
999
LINE , Replaced By: A6194290801
999
CLAMP BRAKE HOSE
999
SEAL RINGTO 000 429 27 95, WABCO
999
SEAL RING , Replaced By: A0009870746
999
SEAL RING , Replaced By: A0049972248
999
SEAL RING , Replaced By: A0289972348
999
SEAL RINGTO 000 429 27 95, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
REPAIR KITTO 001 430 66 81,001 430 67 81,KNORR
999
REPAIR KIT BRAKE POWER REGULATOR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
VALVETO 000 429 27 95, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE (CHECK VALVE) WABCO
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
ELBOW FITTING ,5 433281
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
REPAIR KIT , Replaced By: A0025865242
999
PRESSURE REGULATOR , Replaced By: A0024314306
999
VALVE , Replaced By: A0024312706
999
VALVE , Replaced By: A0034295344
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
REPAIR KIT , Replaced By: A0004301407
999
REPAIR KIT , Replaced By: A0004301107
999
VALVE , Replaced By: A0024314006
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
PRESSURE REGULATOR , Replaced By: A0024313406
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
VALVE , Replaced By: A0034291644
999
PLUG
999
SCREW. UNION SCREW LINE CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SPRINGTO 000 429 27 95, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BUSHING , Replaced By: N915062009000
999
CONNECTOR REPAIR SIZE
999
BANJO UNION , Replaced By: N915052006002
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEALING CORDTO 000 429 27 95, WABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
VALVEWABCO
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT , Replaced By: A0004300207
999
MUFFLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
ADAPTER FITTING , Replaced By: A0004296634
999
GUIDE , Replaced By: N071752014000
