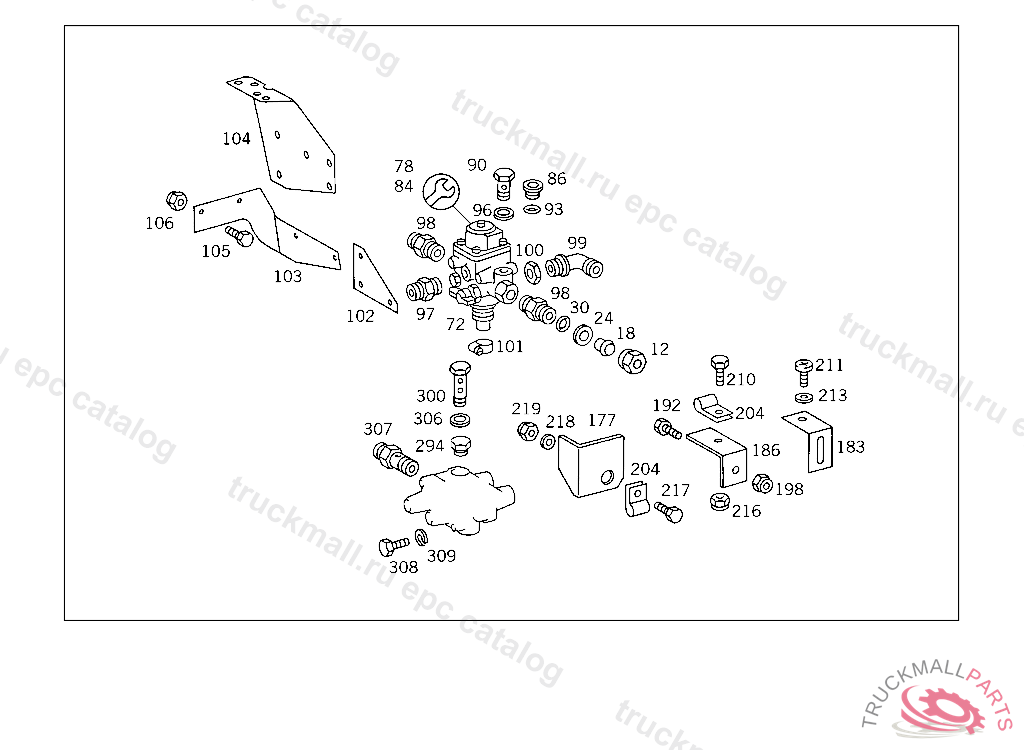

Поз.
Артикул
Описание
12
UNION NUT LINE CONNECTION
12
UNION NUT BUTT SCREW CONNECTION
18
GLAND LINE CONNECTION
24
THRUST RING BUTT SCREW CONNECTION
30
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
30
SEAL RING , Replaced By: N007603012121
72
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
72
PRESSURE REGULATORWABCO, Replaced By: A0034313806
72
PRESSURE REGULATORWABCO
72
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
72
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
72
PRESSURE REGULATORKNORR
72
PRESSURE REGULATORWABCO
72
PRESSURE REGULATORKNORR
78
REPAIR KIT DIAPHRAGM PART BOSCH,209
84
REPAIR KIT PRESSURE REGULATOR BOSCH,241
84
REPAIR KIT PRESSURE REGULATOR KNORR
84
REPAIR KIT PRESSURE REGULATOR KNORR
84
REPAIR KIT SEAL RING BOSCH,209
84
REPAIR KIT PRESSURE REGULATOR WABCO
86
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
86
SCREW PLUG , Replaced By: N000908012009
90
HOLLOW SCREW HEATING CONNECTION
93
O-RING CHECK VALVE TO AIR RESERVOIR
96
SEAL RING LINE CONNECTION
96
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
96
THRUST RING CHECK VALVE TO AIR RESERVOIR
96
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
97
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
97
FITTING AIR RESERVOIR,CONNECTION: "13"
98
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
99
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
99
ELBOW FITTING ,5 433281
100
NUT CHECK VALVE TO AIR RESERVOIR
101
CLAMP , Replaced By: N000000000667
101
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
102
BRACKET PRESSURE REGULATOR TO BRACKET,5 270877
103
BRACKET PRESSURE REGULATOR
103
BRACKET PRESSURE REGULATOR
103
BRACKET , Replaced By: A6454311240
104
BRACKET PRESSURE REGULATOR
104
BRACKET PRESSURE REGULATOR,5 509629
105
SCREW BRACKET TO SIDE MEMBER
105
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
105
SCREW FRONT AXLE REGULATING SOLENOID VALVE
105
SCREW , Replaced By: N000933008134
106
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
106
NUT , Replaced By: N910113010000
106
NUT , Replaced By: N913004008001
106
NUT STRAP TO BRACKET
177
BRACKET COMPRESSED AIR LINE MOUNTING
183
BRACKET FUEL LINE TO BELL HOUSING
186
BRACKET CABLE HARNESS MOUNTING
186
ANGLE LINE MOUNTING
192
SCREW PIPE CLAMP
192
SCREW , Replaced By: N304017008021
198
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
198
NUT , Replaced By: N913004008001
204
CLAMP DELIVERY AND SUCTION LINES TO STEERING
204
CLAMP , Replaced By: A6739950001
210
SCREW LICENSE PLATE TO BRACKET
210
SCREW , Replaced By: N304017006020
210
SCREW COVER PLATE TO BRACKET
211
SCREW CLAMP TO BRACKET
211
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
213
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
213
WASHER COMPRESSED AIR LINE TO BRACKET
216
NUT , Replaced By: N913004006001
216
NUT PUMP TO BRACKET
217
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
217
SCREW BRACKET TO SIDE MEMBER
218
WASHER COMPRESSED AIR LINE TO BRACKET
218
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
219
NUT STRAP TO BRACKET
219
NUT , Replaced By: N910113010000
294
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
300
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
306
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
306
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
307
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
308
SCREW , Replaced By: N304017008016
308
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
309
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
STRAP AIR RESERVOIR III,5 088362
999
STRAP ANTI-FREEZE DEVICE
999
STRAP AIR RESERVOIR TO BRACKET
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
BRACKET AIR CLEANER
999
STRAP AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
999
STRAP FRONT AIR RESERVOIR,RIGHT
999
BRACKET AIR RESERVOIR TO FRAME
999
STRAP AIR RESERVOIR TO BRACKET
999
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
999
RESERVOIR ,5 563826
999
RESERVOIR20L,246 MM,12.5 BAR
999
VALVE , Replaced By: A0024319106
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
RESERVOIR ,5 934167, Replaced By: A0034320601
999
VALVE , Replaced By: A0034315006
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FILTER , Replaced By: A0004291297
999
RESERVOIR ,5 934167, Replaced By: A0034321401
999
RESERVOIR , Replaced By: A0034321201
999
ANTI-FREEZE DEVICEWABCO
999
AIR CLEANER , Replaced By: A0004293695
999
AIR CLEANERBOSCH
999
CONNECTOR 90 DEG. OFFSET
999
FILTER ELEMENT , Replaced By: A0004293795
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
