Поз.
Артикул
Описание

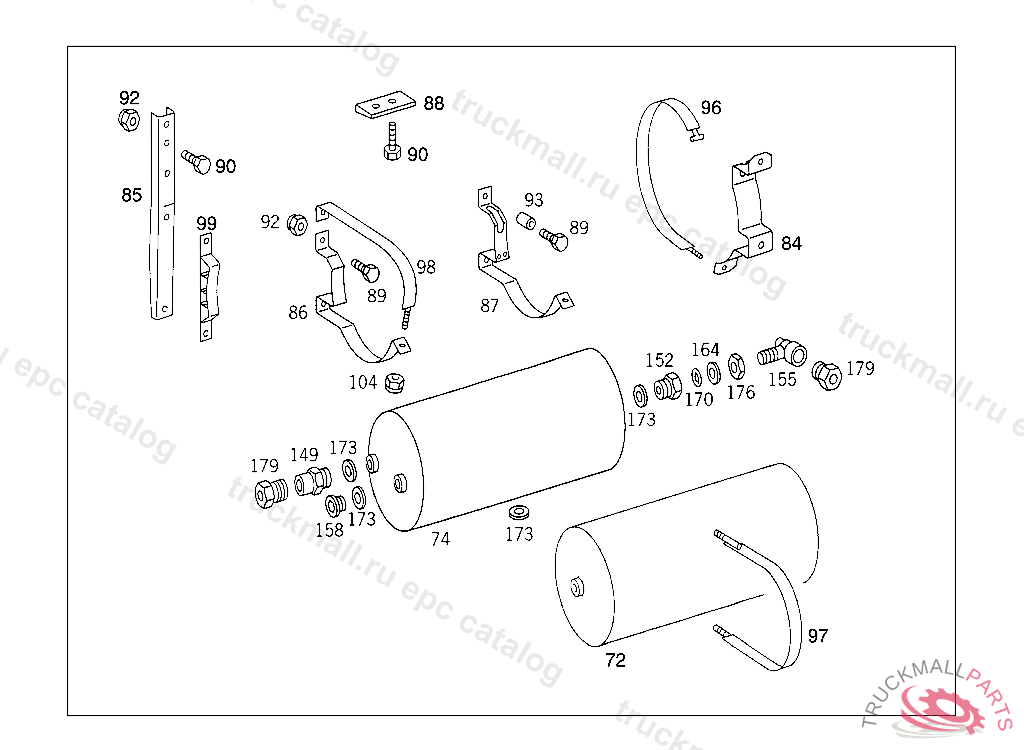

72
RESERVOIR20 L
85
BRACKET STRAP WITH AIR RESERVOIR TO BATTERY SUPPORT,K 093237
87
BRACKET AIR RESERVOIR TO FRAME
88
PAD BRACKET TO RIGHT SIDE MEMBER
90
SCREW BRACKET TO RIGHT SIDE MEMBER
90
SCREW APPARATUS SUPPORT TO FRAME M 14X45
92
NUT , Replaced By: N910113014000
92
NUT STEERING SUPPORT TO FRAME
93
SPACER TUBE BRACKET TO RIGHT SIDE MEMBER
97
STRAP AIR RESERVOIR,K 125986
98
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
99
BASE AIR RESERVOIR
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
149
FITTING LINE CONNECTION
158
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
158
SCREW PLUG , Replaced By: N000908022011
164
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
176
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
179
SCREW. UNION SCREW LINE CONNECTION
999
BRACKET AIR RESERVOIR TO RIGHT SIDE MEMBER
