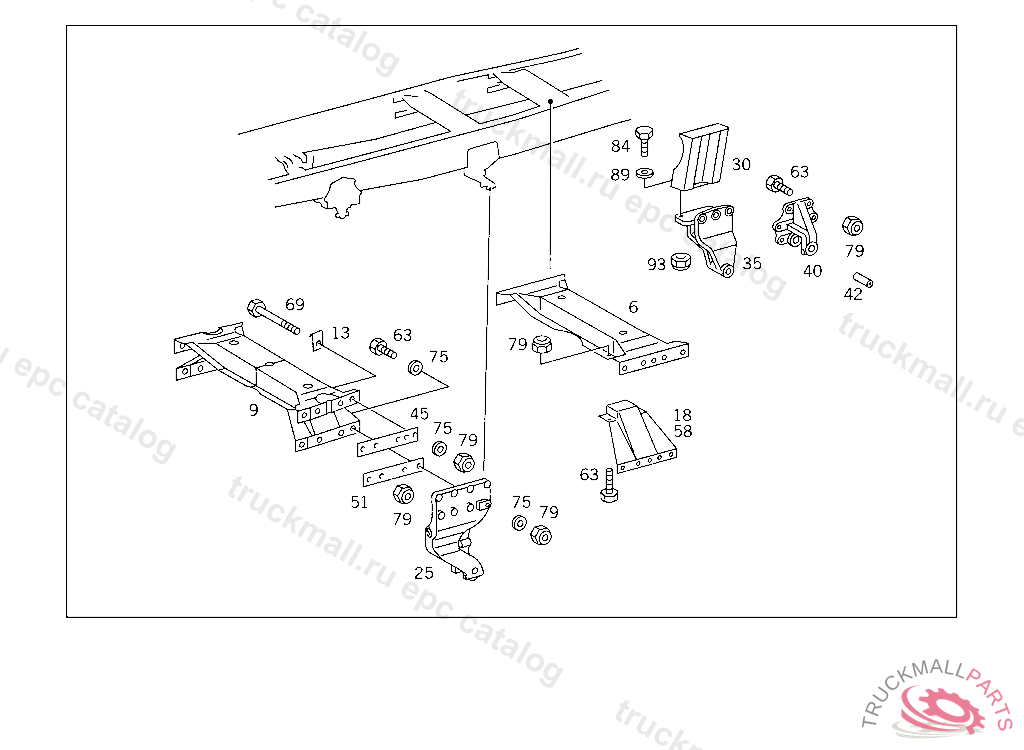

Поз.
Артикул
Описание
6
CROSS MEMBERNO.3A
6
CROSS MEMBERNO.4A
6
CROSS MEMBERNO.4A
9
CROSS MEMBER IN FRAME BEND
9
CROSS MEMBER , Replaced By: A6993100836
13
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
18
STRUT LEFT AND RIGHT
25
FRONT SPRING BRACKET REAR RIGHT
25
FRONT SPRING BRACKET STEERED AXLE,RIGHT FRONT
25
FRONT SPRING BRACKET REAR LEFT
25
FRONT SPRING BRACKET STEERED AXLE,LEFT FRONT
30
BRACKET LEFT FRONT SPRING REAR BRACKET, TO BE ADAPTED DURING ASSEMBLY
30
BRACKET RIGHT FRONT SPRING REAR BRACKET, TO BE ADAPTED DURING ASSEMBLY
35
REAR SUBFRAME STEERED AXLE,REAR, ONLY REPLACEABLE BY PAIRS TO BE ADAPTED DURING ASSEMBLY
35
REAR SUBFRAME , Replaced By: A6223200070
35
REAR SUBFRAME , Replaced By: A6253200470, +001A6253202243
40
SPRING BRACKET , Replaced By: A6993202375
40
SPRING BRACKET , Replaced By: A6993200375
40
SPRING BRACKET
40
SPRING BRACKET REAR LEFT
42
BUSHING
42
BUSHING
45
SHIM SPRING BRACKET TO SIDE MEMBER
51
SHIM SPRING BRACKET TO SIDE MEMBER, NO LONGER AVAILABLE
58
STRUT , Replaced By: A6253200943
58
BRACKET RIGHT
63
SCREW , Replaced By: N308676014012
63
SCREW SUPPORT TO SIDE MEMBER M 14X45
63
SCREW STEERING SUPPORT TO FRAME M 14X55
63
SCREW STEERING SUPPORT TO FRAME M 14X50
69
SCREW BEARING BRACKET TO SIDE MEMBER
69
SCREW , Replaced By: N308765016002
69
SCREW , Replaced By: N308676016005
69
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
69
SCREW BEARING BRACKET TO SHOCK ABSORBER BRACKET M 16X110,5 903513
69
SCREWM 16X18X38X60
69
SCREW ,5 903513, Replaced By: N308765016011
69
SCREWM 16X18X63X85
69
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
75
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
75
WASHER , Replaced By: N000125017016
75
WASHER BRACKET TO FRAME
75
WASHER , Replaced By: N000125015019
79
NUT CONSOLE TO SUPPORT
79
NUT STEERING SUPPORT TO FRAME
79
NUT , Replaced By: N910113014000
79
NUT , Replaced By: N910113016001
84
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
84
SCREW BRACKET TO SIDE MEMBER M 12X28
89
WASHER
93
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
93
NUT , Replaced By: N910113012003
