Mercedes A0008353111 - GRUNDPLATTE

CITARO 18M 4-TUERER 628.232

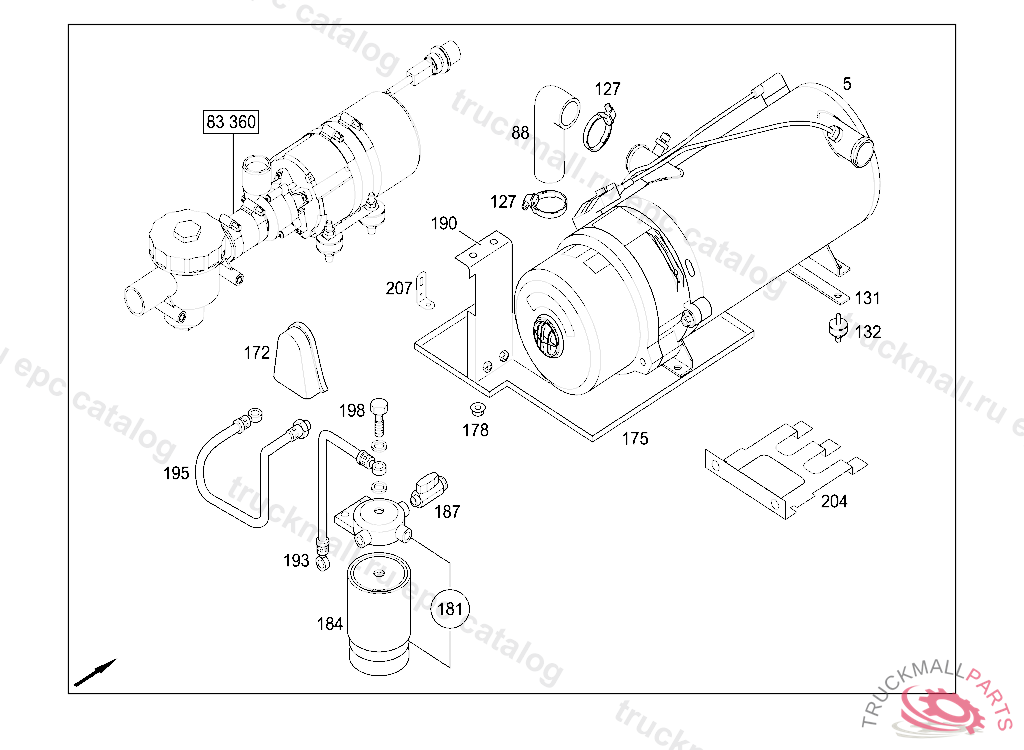

83 HEATING AND VENTILATION - 330 AUXILIARY WARM WATER HEATER IL. 1

Поз.
Артикул
Описание
5
A0008305620
BASIC HEATERWEBASTO, THERMO 300
5
A0008305820
BASIC HEATERWEBASTO, THERMO 350, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
88
A0018320094
HOSE FROM HEATING WATER PIPE TO HEATER
127
N000000002774
CLAMP HOSE TO INTAKE PIPE 35-50X13MM
131
A0008350296
PAD
132
A3225040212
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
132
A0008330194
BUFFER , Replaced By: A3225040212
172
A0008351335
SPLASH GUARD. CAP
175
A0008353111
BASE PLATE
178
N913023008003
NUT HORN TO BRACKET M8
181
A0008320244
FUEL FILTER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
184
A0018353147
FILTER ELEMENT , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
187
A0028305984
VALVE (SHUT-OFF VALVE)
190
A0008359314
BRACKET
193
A0018323023
FUEL HOSE FEED
195
A0018323123
FUEL HOSE RETURN
198
A0009908363
HOLLOW SCREW
204
A0008305814
BRACKET
207
Q8441310663
ANGLE
999
A0109973848
SEAL RING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.02.2011
