Mercedes A0009872627 - Трубка пластиковая 6 X 4

CITARO 18M 4-TUERER 628.232

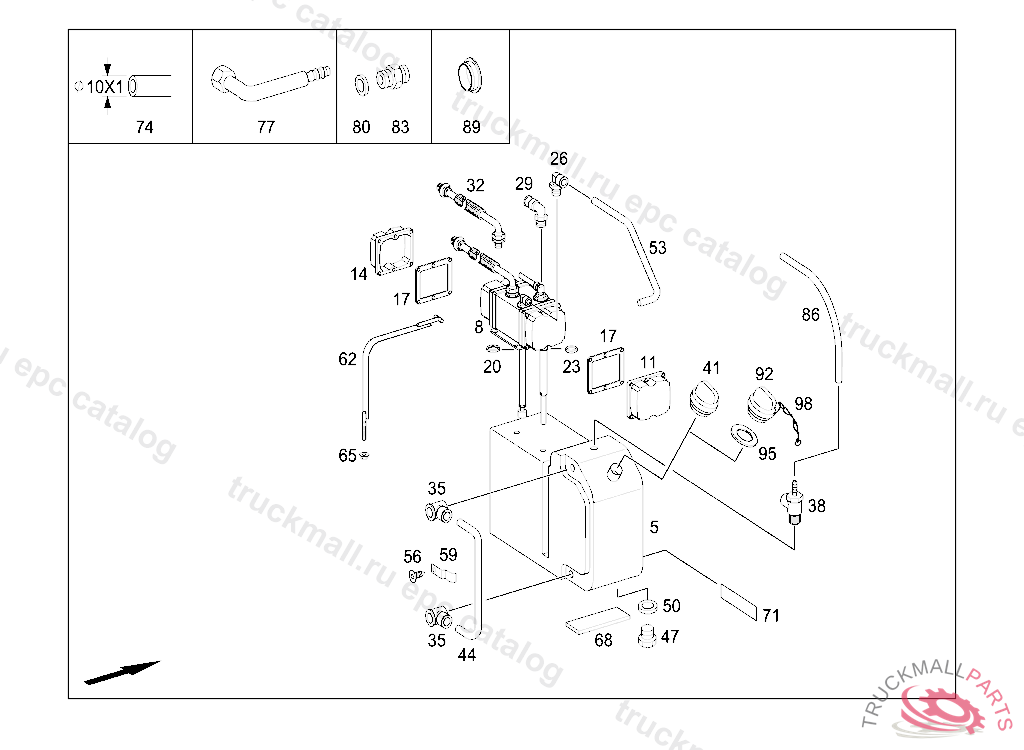

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2

Поз.
Артикул
Описание
5
A6284801401
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
A6285400745
CONTROL UNIT AT OIL TANK
11
A0004810011
COVER BLACK
14
A0004810111
COVER TRANSPARENT
17
A0179970145
FULL FACE GASKET
20
A0179972645
SEAL RING22,2X3,5 MM
23
A0179972545
SEAL RING17X3 MM
26
A0279970182
BANJO UNION
29
A0029976071
ELBOW FITTING DIA., 10MM
32
A0035401505
CABLE HARNESS
35
A6284800025
ELBOW FITTING
38
A6284800125
ELBOW FITTING
41
A0000180702
CAP OIL REFILLING
44
A0109976482
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
47
N007604018109
SCREW PLUG
50
N007603018104
SEAL RING SOLENOID VALVE A 18X24
53
A0109976982
HOSE , Replaced By: A0089979082
56
N000912004016
SCREW. CAP BOLTM4X8
59
A6284811740
BRACKET
62
A6284800021
STRAP OIL TANK
65
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
A6284811082
71
A6124750318
ADHESIVE STRIP. BASE40 X 2 MM
74
A0019970652
HOSETO 346 500 60 03, ORDER BY THE METER
77
A0004760524
ELBOW FITTING RETURN
80
N007603018101
SEAL RING VALVE TO VALVE,K 025179
83
N000000006152
FITTINGM18X1.5
86
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
89
A0009973735
PLUG AT OIL TANK 240X90X5 MM
92
A0000181102
CAP OIL FILLING
95
A0000180180
GASKET , Replaced By: A1020180080
98
A6285050009
BEAD CHAIN PROTECTION AGAINST LOSS L300MM
