Mercedes A6326162441 - STEGBLECH

TOURISMO 16 RHD 632.038

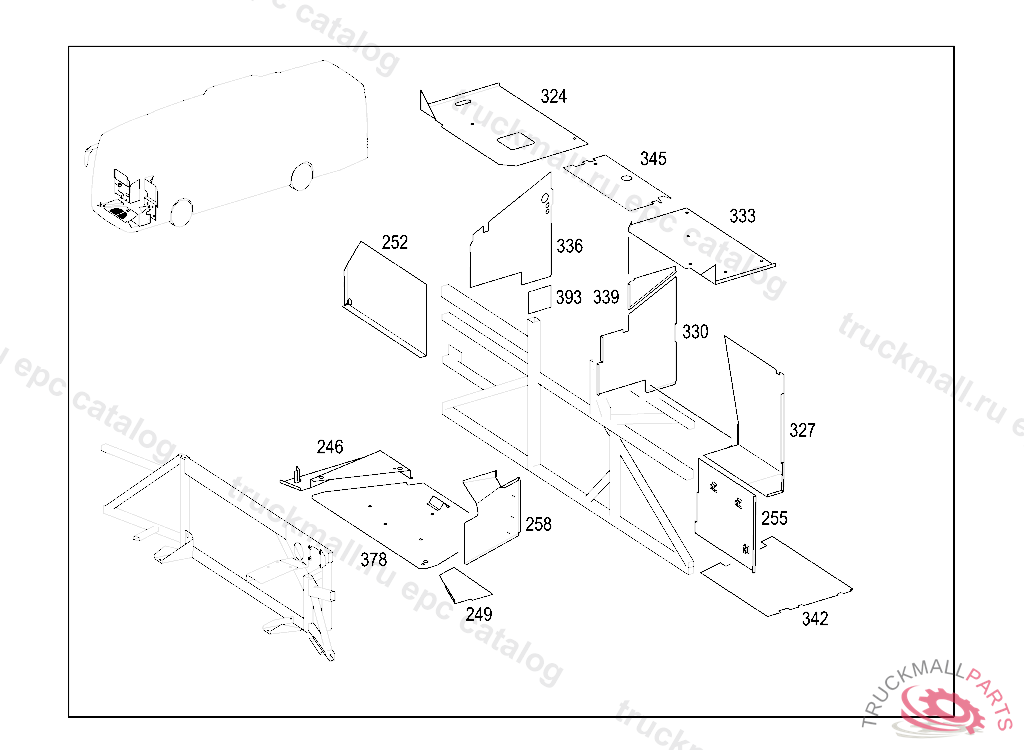

61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 4

Поз.
Артикул
Описание
246
A6326100555
FLOOR UNDERSTEP
249
A6326111251
REINFORCEMENT PLATE TO CROSSMEMBER 1 BOTTOM LEFT, EXHAUST STOCK OF OLD PART NUMBER FIRST
249
A6326161552
FLOOR TO CROSSMEMBER 1 BOTTOM LEFT, Replaced By: A6326111251
252
A6326160341
RETAINING PLATE TO CROSSMEMBER 2 TOP RIGHT 874X456X0,75MM, Replaced By: A6326163141
252
A6326163141
RETAINING PLATE TO CROSSMEMBER 2 TOP RIGHT 874X456X0,75MM
255
A6326100133
WEB
258
A6326100181
PARTITION PANEL
324
A6326162252
FLOOR933X729X0,75MM
327
A6326160141
RETAINING PLATE965X844X0,75MM
330
A6326162841
RETAINING PLATE
333
A6326160252
FLOOR
336
A6326164441
REINFORCEMENT PLATE
336
A6326162441
RETAINING PLATE , Replaced By: A6326164441
339
A6326160441
RETAINING PLATE476X263X0,75MM
342
A6326160352
BOTTOM PLATE832X690X0,75MM
342
A6326165452
FLOOR
345
A6326162352
FLOOR UNDER TANK
378
A6326100955
FLOOR
378
A6326100855
FLOOR
393
A6276662911
PLATE
