Mercedes A6336370912 - BEFESTG.WKL UT / 174

TOURISMO 16 RHD 632.038

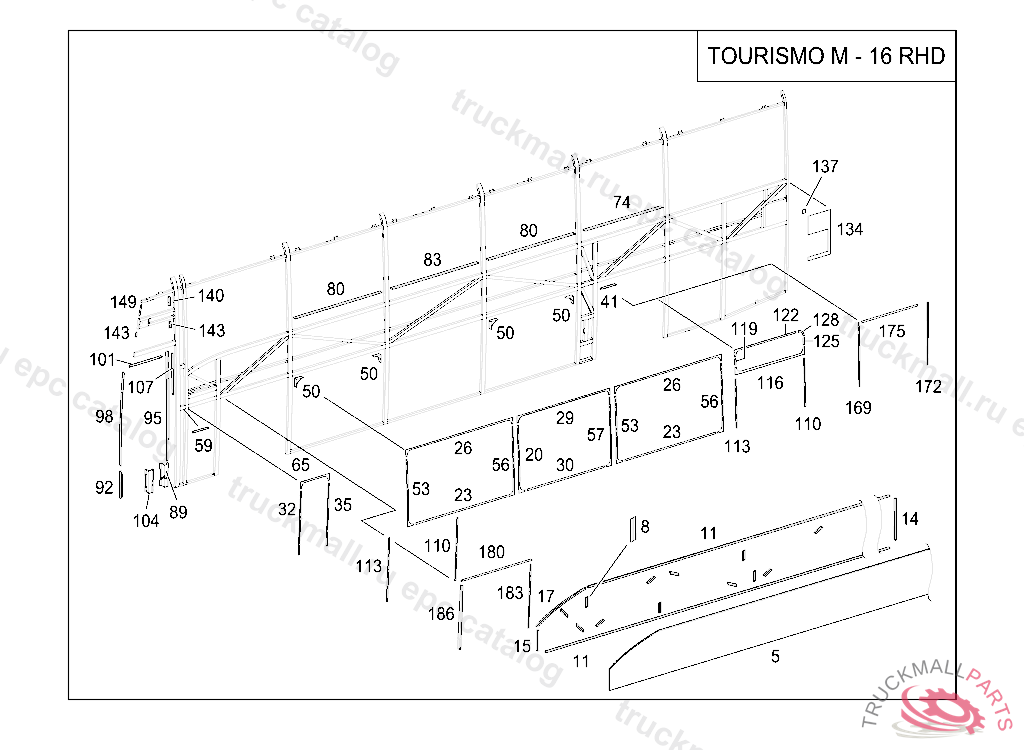

63 SIDE PANELS - 420 LEFT SIDE PANELLING IL. 2

Поз.
Артикул
Описание
5
A6326373309
PANELLING LEFT
5
A6326375309
PANELLING LEFT
8
A6296372414
BRACKET150LG
11
A6326370034
RAIL
14
A6326371095
PAD
15
A6326370895
PAD
17
A6326370995
PAD
20
A6296370412
ANGLE1090LG
23
A6336370912
ANGLE
26
A6296372892
ANGLE
29
A6326375312
ANGLE1534MM
30
A6326375412
ANGLE1534MM
32
A6296370312
ANGLE LATERAL 1090MM, Replaced By: A6296370712
35
A6296370112
ANGLE1090MM
41
A6296020612
ANGLE105LG
50
A6296370015
REINFORCEMENT
53
A6296379872
ANGLE LEFT
56
A6296379972
ANGLE RIGHT
57
A6296370512
ANGLE1090MM
59
A6326020612
ANGLE78MM
65
A6296320012
ANGLE TOP 520MM
74
A6296370772
ANGLE1570MM
80
A6276374312
ANGLE1740MM
83
A6276373272
ANGLE1535MM
89
A6326310225
ANGLE
92
A6326310425
ANGLE
95
A6326370192
ANGLE
98
A6326370092
ANGLE
101
A6326370292
ANGLE
104
A6336310225
ANGLE , UP TO IDENT NO. 103691 ALSO INSTALLED ON 103693 , 103694 , 103695 , 103759 , 103760 , 103805 , 103806 , 103831
107
A6326370307
PANELLING DOOR PILLAR
110
A6296378172
ANGLE963MM
110
A6296376512
ANGLE
113
A6296378272
ANGLE LATERAL
113
A6296376612
ANGLE LATERAL
116
A6296376492
ANGLE
119
A6296378772
ANGLE
122
A6326374312
ANGLE TOP 1274MM
125
A6326375012
ANGLE175MM
128
A6296370015
REINFORCEMENT
134
A6326373609
PANELLING SIDE PANEL,REAR LEFT
137
A0019878040
RUBBER BUFFER FLAP TO LEVER, NO.8316INO.7C52INO.9051I I II I
140
A6326374712
ANGLE
143
A6296020212
ANGLE210LG
149
A6276374792
ANGLE229MM
169
A6326374012
ANGLE
172
A6326370093
ANGLE WITHOUT LEFT REAR AXLE STOWAGE COMPARTMENT
175
A6296378172
ANGLE963MM
180
A6296375192
ANGLE1268MM
183
A6296378172
ANGLE963MM
186
A6296378272
ANGLE LATERAL
