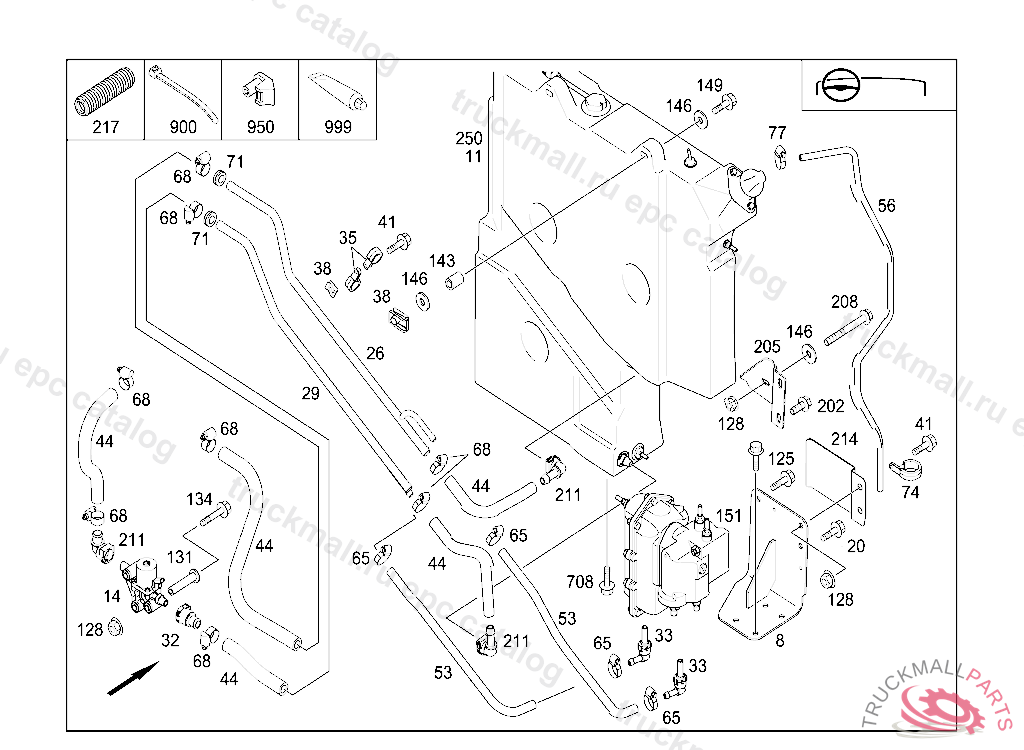

Поз.
Артикул
Описание
8
BRACKET ,WKK 629410 13 102802, Replaced By: A0004700781
8
BRACKET ,WKK 629410 13 102801
11
UREA CONTAINER
11
UREA CONTAINER
14
SOLENOID VALVE. VALVE
20
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
20
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
26
RISING PIPE
26
RISING PIPE HEATING WATER RETURN
29
SUCTION LINE
29
SUCTION LINE HEATING WATER FEED
32
CONNECTOR12-90GRAD
32
COUPLING
33
PLUG CONNECTOR HEATING WATER CONNECTION 90 GRAD, TO 000 140 02 78
35
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
35
CLAMP LINE MOUNTING
38
NUTM8
38
LOCK NUT. SPRING NUT MOUNTING PARTS
41
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
41
SCREW , Replaced By: N914146006102
44
HOSE271-15X24X2000, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
RADIATOR HOSE , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)30.11.2009 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
RADIATOR HOSE9X3.5 MM, ORDER BY THE METER
56
FUEL HOSE. HOSEB5,5-2,5,WEB 629012 13 520122 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
68
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
71
GROMMET
74
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
74
CLAMP , Replaced By: N916016010211
74
CLAMP10/15
77
CLAMP
125
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
125
SCREW BRACKET TO SIDE MEMBER M10X35
125
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
125
SCREWM 10X20
128
NUT , Replaced By: N913023006001
128
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
131
SPACER SLEEVE. SPACER TUBE VALVE TO CRANKCASE
134
SCREWM6X65
143
BUSHING
146
WASHER BRACKET TO CAB REAR PANEL
149
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
151
PUMP MODULE , Replaced By: A0001402578
151
PUMP MODULE , Replaced By: A0001400378
151
PUMP MODULE , Replaced By: A0001400578
151
PUMP MODULE COMPLETE, Replaced By: A0001400478
202
SCREW BRACKET TO CAB REAR PANEL M 8X20
205
BRACKET
208
SCREW , Replaced By: N910143008009
211
CONNECTOR12-90GRAD
214
COVERING
217
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
250
REDUCING AGENT TANK
708
SCREW BRACKET TO CAB REAR PANEL M 8X20
708
SCREW , Replaced By: N910143008000
708
SCREW PIPE ELBOW TO BRACKET M8X12
900
LOOM TIE
900
CABLE TIE , Replaced By: A0049971890
950
RETAINING CLIP
999
FAST-CURE ADHESIVE 242 MEDIUM STRENGTH
