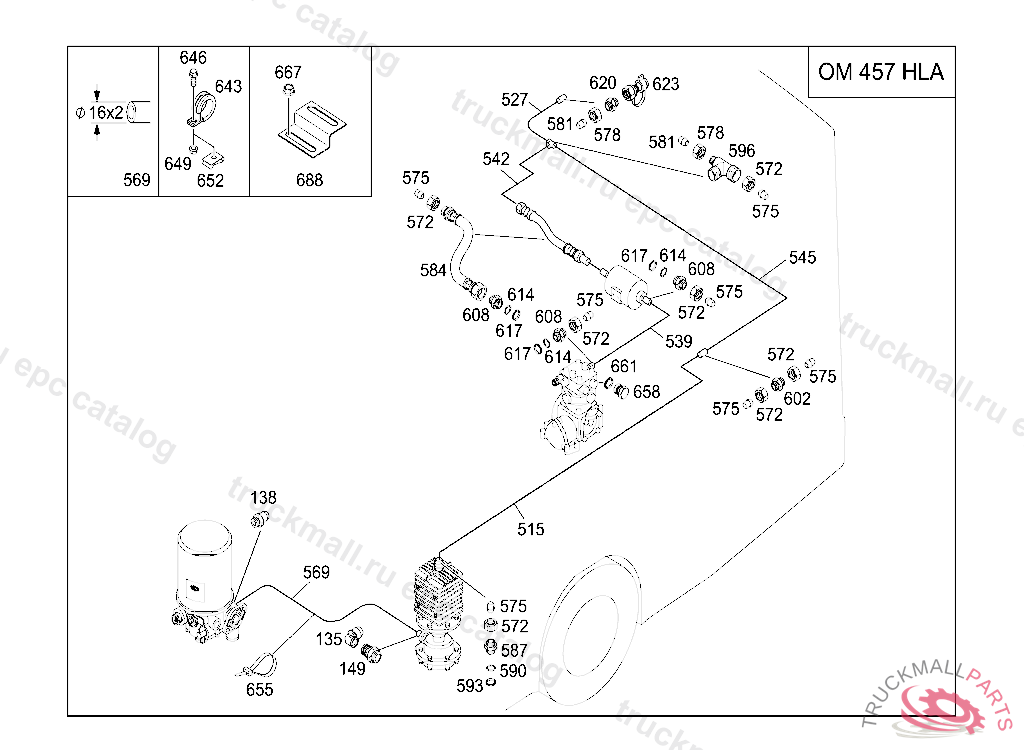

Поз.
Артикул
Описание
135
ELBOW FITTINGP5/16X2/90GR RAUFOSS
138
FITTING16X2/M22X1.5 RAUFOSS
149
FITTING16X2/M22X1.5 RAUFOSS
515
COMPRESSED AIR LINE1740MM
527
LINE10X0.75X520
539
LINE340 LG.
542
LINE930 LG.
545
LINE1900 LG.
569
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
572
NUT COMPRESSED AIR LINES
572
UNION NUT LINE MOUNTING
575
CUTTING RINGBL 18
578
UNION NUT
581
GLAND
584
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
584
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
587
SCREW-IN FITTING CHECK VALVE,V 207570
590
SEAL RING20.3X2.4
593
THRUST RING CHECK VALVE TO AIR RESERVOIR
596
FITTINGL18-18-10
602
FITTING BETWEEN THE LINES
602
CONNECTION FITTING , Replaced By: N003902018002
608
SCREW-IN FITTING , Replaced By: A0029970271
608
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
614
SEAL RING LINE CONNECTION
614
SEAL RING LINE CONNECTION
614
SEAL RING24X3
617
THRUST RING SUCTION LINE TO OIL PUMP
617
THRUST RING
617
THRUST RING CHECK VALVE TO AIR RESERVOIR
620
FITTINGM 16X1.5
623
TEST CONNECTIONM16X1.5
643
MOUNTING CLAMP SILICONERSGU S 18/15
643
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
643
CLAMP10/15
643
MOUNTING CLAMP16/15
643
CLAMPRSGU S 18/15
643
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
643
CLAMP16/15, Replaced By: A0019950842
643
CLAMP LINE MOUNTING 15-18 MM,V 207570
646
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
649
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
652
LOCK NUT. SPRING NUT MOUNTING PARTS
655
CABLE TIE LINE MOUNTING 375X8.4MM
658
PLUGM12X1.5
661
SEAL RING LINE CONNECTION
667
NUT ENGINE MOUNTING M8
688
"Z" SECTION60MM, Replaced By: A6279850349
