Mercedes A0006830006 - MONTAGERAHMEN

TOURISMO 16 RHD 632.038

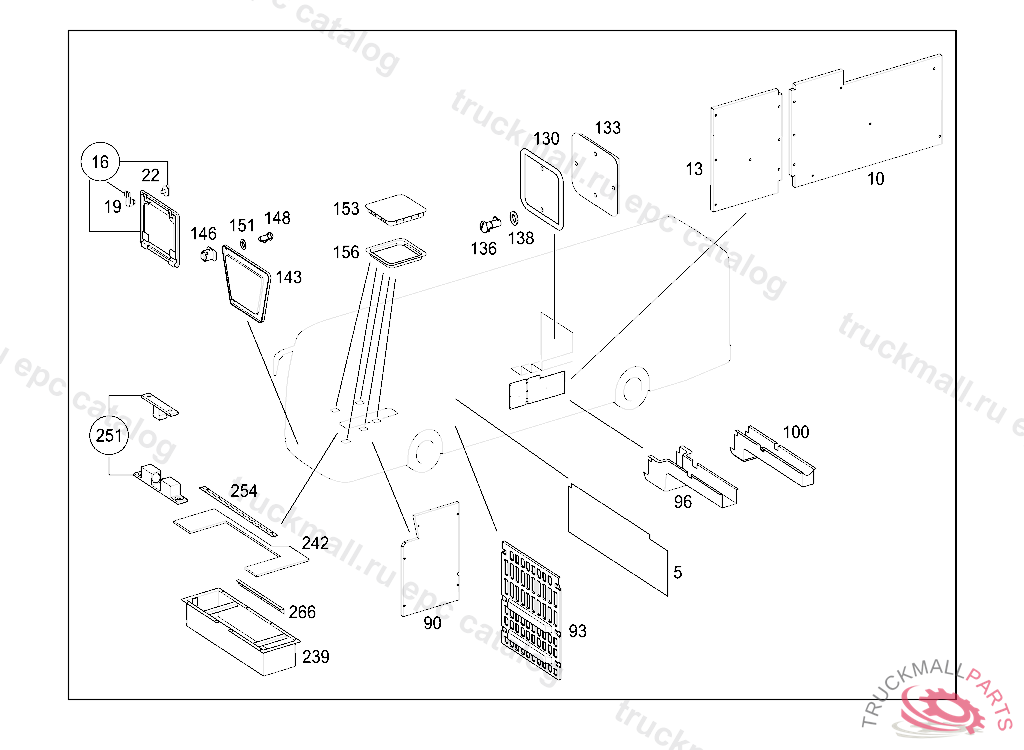

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
16
A6296801607
CLOSING COVER
19
A0009980695
ROTARY CATCH
22
A0009980595
ROTARY CATCH
90
A6326820016
COVERING ELECTRICAL COMPARTMENT
93
A6296860407
COVERING CROSS MEMBER 4
96
A6326841277
PANELLING WATER PIPES
130
A0006840018
COVER ABS
133
A0006800907
COVERING
133
A6326802607
COVER PROTECTIVE PLATE
136
A0006830212
FASTENER SUPERFIX
138
N000125008445
WASHER PUMP TO CONSOLE
143
A6296860010
PANELLING PANE WIPER
146
A0019886142
FASTENER
148
A0009915807
PIVOT PIN
151
A0039908740
WASHER6 MM
151
A0009911195
FASTENING CLIP
153
A0006800323
SERVICING COVER
156
A0006830006
FRAME
239
A6326800458
RECESS , Replaced By: A6326800658
239
A6326800658
RECESS
242
A6326844364
FLOOR FLAP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.03.2009
242
A6326842264
FLOOR FLAP , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 28.02.2009
242
A6326846464
FLOOR FLAP
251
A0009883063
SNAP LOCK
254
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
266
A6326875912
ATTACHMENT ANGLE BRACKET
