Поз.
Артикул
Описание

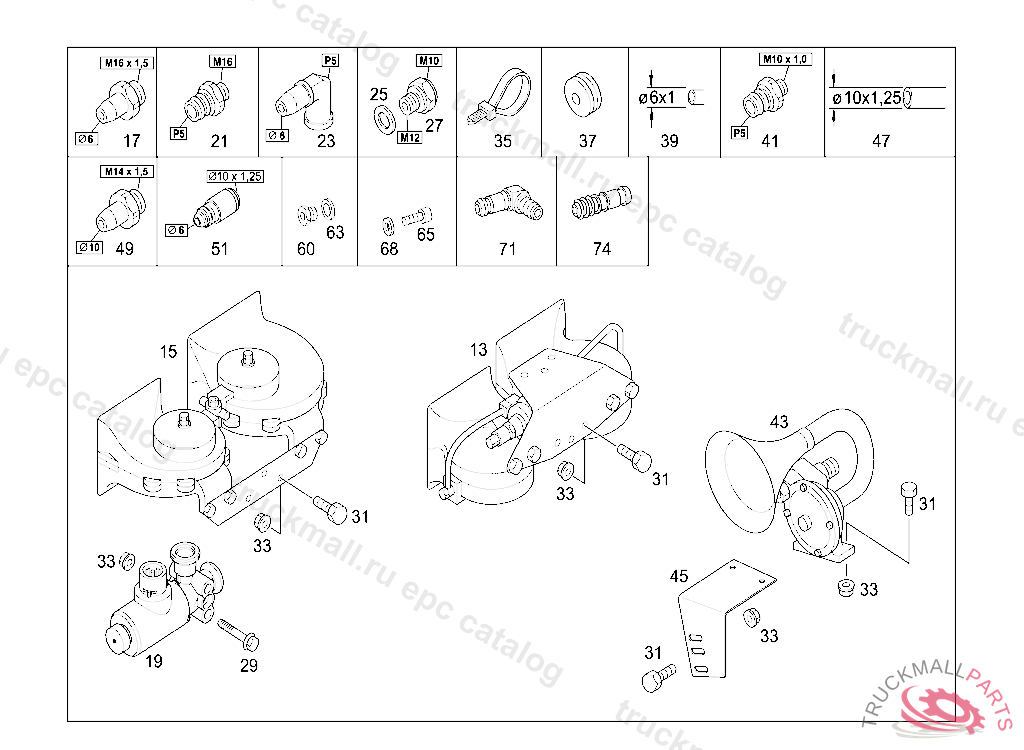

13
AIR HORN
15
AIR HORN
17
FITTING6X1/M16X1.5 RAUFOSS
19
VALVE REAR AXLE DIFFERENTIAL LOCK
19
VALVE REAR AXLE DIFFERENTIAL LOCK EKS,L 500573B 500573
21
FITTINGP5/M16X1.5
23
ELBOW FITTINGP5/6X1/90GR RAUFOSS
25
SEAL RING COMPRESSED AIR LINE TO PARKING BRAKE VALVE
27
CONNECTOR OVERFLOW VALVE
29
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
29
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
31
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
31
SCREW BRACKET AND CLAMP M6X20
31
SCREW BRACKET TO CAB REAR PANEL M 8X20
33
NUT HORN TO BRACKET M8
33
NUT BRACKET TO FIRE WALL
35
CABLE TIE , Replaced By: A0049971890
37
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
37
LOCKING CAP
39
PLASTIC PIPE RISING PIPE 4X6 MM
41
FITTINGP5/M10X1 RAUFOSS
43
AIR HORN
45
BRACKET
47
PLASTIC PIPE10X1.25, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
49
FITTING10X1.25MM/M14X1.5 RAUFOSS
51
THREADED UNION
60
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
60
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
63
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
63
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, VOSS 232
65
SCREWM6X12 TX30
68
SEAL RINGBOSCH
68
SEAL RING 3/2-WAY VALVE
71
ELBOW FITTING , Replaced By: A0049971389
71
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
71
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
74
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
74
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
999
NUT
999
DIAPHRAGM
999
DIAPHRAGM TWEETER
