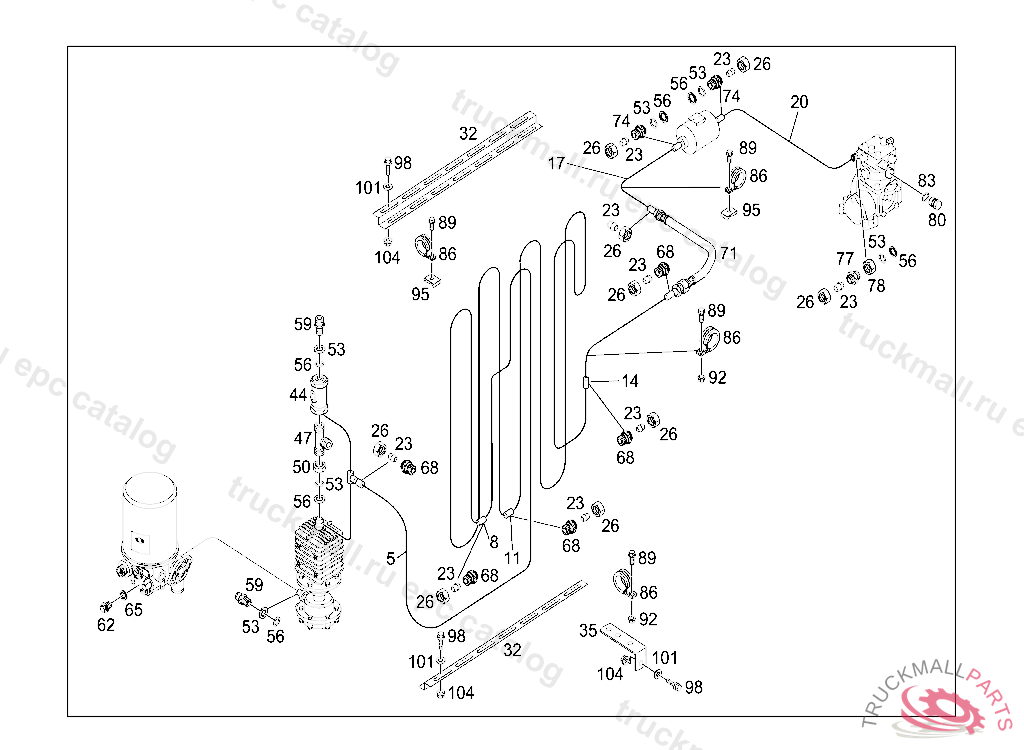

Поз.
Артикул
Описание
5
5
8
8
11
LINE
11
14
14
LINE1250 MM
17
20
20
20
20
23
CUTTING RINGBL 18
26
NUT COMPRESSED AIR LINES
26
UNION NUT LINE MOUNTING
32
BRACKET "Z" SECTION
32
BRACKET "Z" SECTION
35
BRACKET
44
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
47
T-FITTING CYCLONE PRE-FILTER BOWL
50
NUT FITTING TO BRACKET,230274
53
THRUST RING SUCTION LINE TO OIL PUMP
53
THRUST RING CHECK VALVE TO AIR RESERVOIR
56
SEAL RING LINE CONNECTION
56
SEAL RING LINE CONNECTION
59
FITTING (CHECK VALVE) NG12/M22X1.5, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
62
SCREW PLUG AIR DEHYDRATOR
65
SEAL RING 3/2-WAY VALVE,CONNECTION: "Z"
68
CONNECTION FITTING LINE CONNECTIONS
68
FITTING BETWEEN THE LINES
68
CONNECTION FITTING , Replaced By: N003902018002
71
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
71
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
74
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
74
SCREW-IN FITTING , Replaced By: A0029970271
77
FITTING
77
FITTING
78
NUTM26X1.5-14H
80
PLUGM12X1.5
83
SEAL RING LINE CONNECTION
86
MOUNTING CLAMP SILICONERSGU S 18/15
86
CLAMPRSGU S 18/15
89
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
92
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
95
LOCK NUT. SPRING NUT STEP TO ENTRANCE
98
SCREW BRACKET TO SIDE MEMBER M8X20
101
WASHER BRACKET TO CAB REAR PANEL
101
WASHER LINE MOUNTING
104
NUT ENGINE MOUNTING M8
104
NUT HORN TO BRACKET M8
