Mercedes A6386361309 - БОКОВИНА

VITO 108 D 638.164

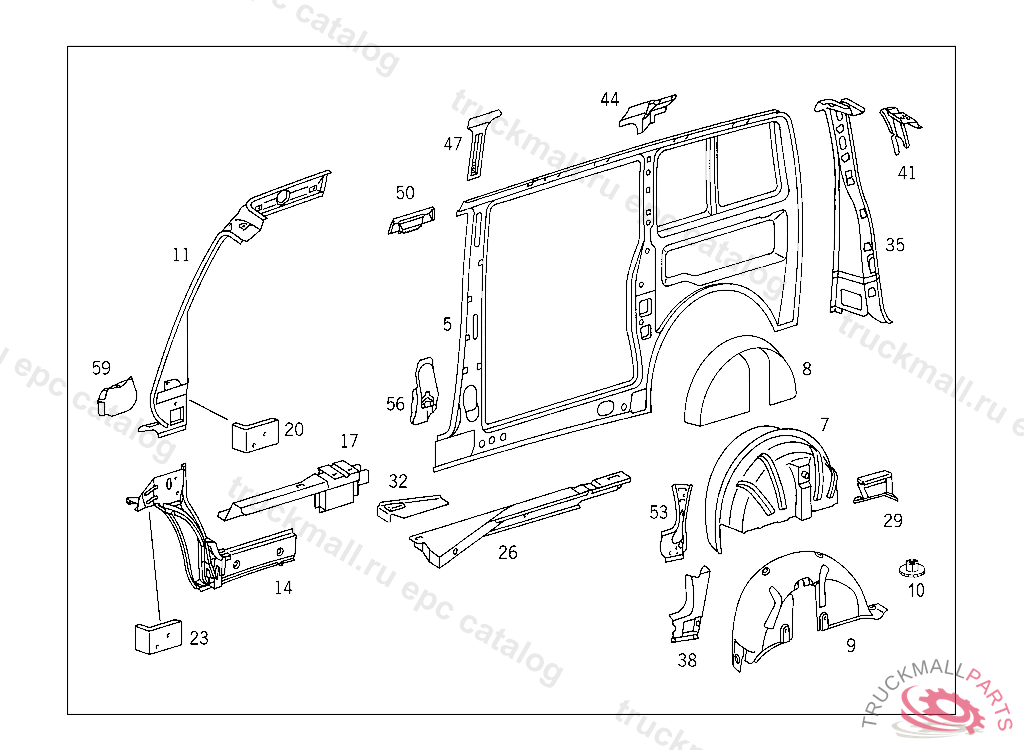

63 SIDE PANELS - 060 SIDE PANEL,RIGHT

Поз.
Артикул
Описание
5
A6386361309
SIDE PANEL INSIDE
7
A6386600850
WHEELHOUSE RIGHT
8
A6389891471
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
11
A6386310712
PILLAR PART A-PILLAR,INSIDE RIGHT
14
A6386300113
PILLAR BOTTOM RIGHT
17
A6386300305
GIRDER PART RIGHT
20
A6386300316
REINFORCEMENT TOP
23
A6386300416
REINFORCEMENT BOTTOM
26
A6386300005
GIRDER PART RIGHT
29
A6386310832
CONNECTION RIGHT
29
A6386310132
CONNECTION , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 071249, Replaced By: A6386310832
32
A6386320216
REINFORCEMENT RIGHT
35
A6386300414
PILLAR D-PILLAR,INSIDE RIGHT
35
A6386300210
PILLAR D-PILLAR,INSIDE RIGHT
38
A6386300489
TAKE-UP DEVICE C-PILLAR,INSIDE LEFT
41
A6387400006
REINFORCEMENT HINGE
44
A6386370012
ANGLE C-PILLAR TOP,RIGHT
47
A6386313716
REINFORCEMENT B-PILLAR,TOP RIGHT
50
A6386320524
BRACKET
53
A6386312716
REINFORCEMENT C-PILLAR
56
A6386301016
REINFORCEMENT BELT REEL
59
A6386320109
END PIECE RIGHT
