Поз.
Артикул
Описание

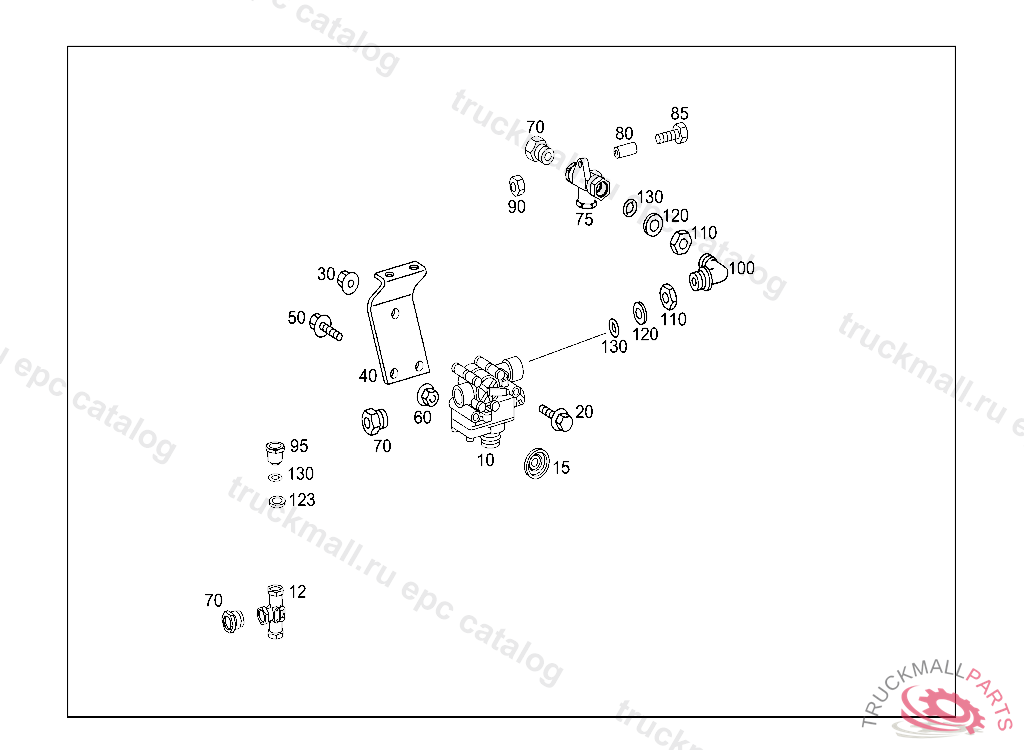

10
VALVE PRESSURE CONTROL VALVE ABS
10
VALVE , Replaced By: A0044298844
10
10
VALVE FRONT AND REAR AXLE BRAKE PRESSURE KNORR 45.01
12
VALVE (SHUT-OFF VALVE)
15
DIAPHRAGMBOSCH, TO 004 429 87 44
20
SCREW , Replaced By: N910143008010
20
HEXAGON HEAD BOLT SOLENOID VALVE TO BRACKET M8X140
30
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
30
NUT HORN TO BRACKET M8
40
BRACKET (RELAY VALVE),ABS FRONT AXLE LEFT AND RIGHT
40
50
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
60
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
SCREW. UNION SCREW LINE CONNECTION
70
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
75
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
95
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
100
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
110
NUT AT OVERFLOW VALVE M22X1.5
120
THRUST RING CHECK VALVE TO AIR RESERVOIR
123
THRUST RING CHECK VALVE TO AIR RESERVOIR
130
O-RING CHECK VALVE TO AIR RESERVOIR
