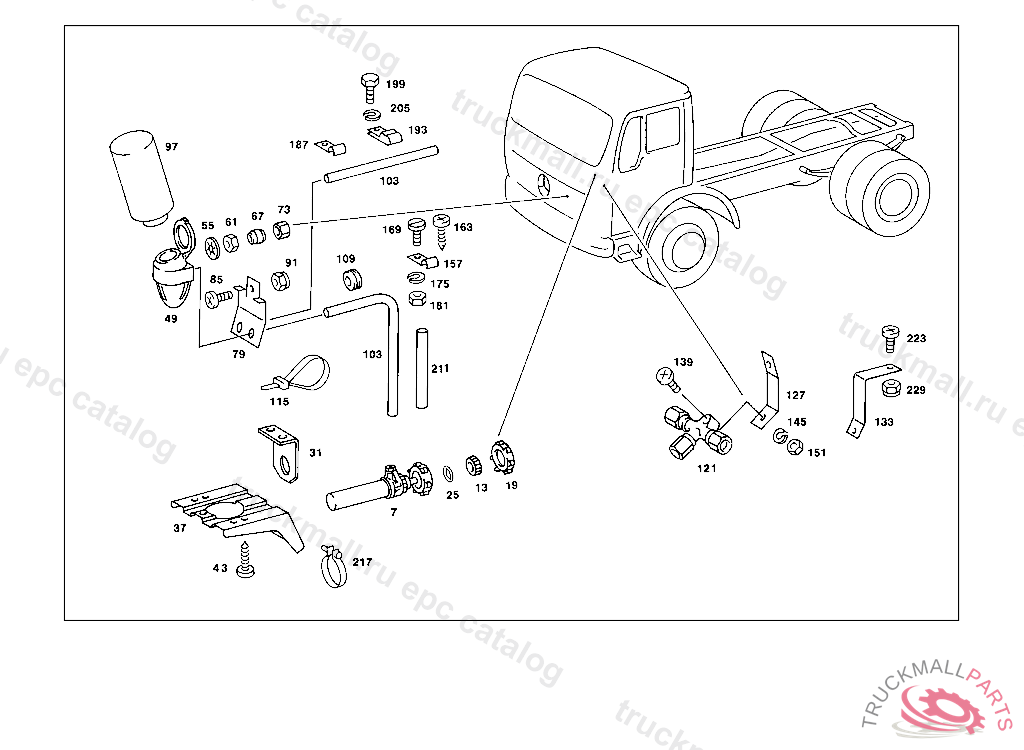

Поз.
Артикул
Описание
7
PUMP PRIMING FUEL
7
PUMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 162440, Replaced By: A0005502383
13
NUT , Replaced By: A0005550372
13
NUT
19
HANDLE , Replaced By: A0005550440
19
HANDLE
25
WASHER STARTER PILOT PUMP
31
BRACKET STARTER PILOT PUMP TO WINDOW SILL
37
BRACKET , Replaced By: A3813020240
37
BRACKET
37
BRACKET
43
SHEET METAL SCREW BRACKET TO WINDOW LEVEL GIRDER
49
PRIMER CAPSULE , Replaced By: A0005501404
49
PRIMER CAPSULE PRIMING FUEL
55
SERRATED WASHER
61
NUT
67
SEAL CONE , Replaced By: A0009949454
73
NUT , Replaced By: A0009949454
79
BRACKET PRIMER CAPSULE
85
SCREW CLAMP MOUNTING M 6X16
85
SCREW , Replaced By: N000000001146
91
NUT , Replaced By: N913004006001
91
NUT PUMP TO BRACKET
97
FILLING CYLINDER PRIMING FUEL
103
HOSE FUEL LINE, ORDER BY THE METER
109
GROMMET
109
GROMMET
115
LOOM TIE TO MOUNT PLASTIC PIPING
115
LOOM TIE LINE MOUNTING 280 MM
121
T-FITTING AT BRACKET
127
BRACKET , Replaced By: A3604293140
127
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
133
BRACKET T-FITTING
139
SCREW T-FITTING TO BRACKET
145
LOCK WASHER T-FITTING TO BRACKET
151
NUT T-FITTING TO BRACKET M 4
157
CLAMP TO MOUNT PLASTIC PIPING
163
SHEET METAL SCREW TO MOUNT PLASTIC PIPING
169
SCREW HOOK TO BRACKET
169
SCREW , Replaced By: N007985005175
175
LOCK WASHER BRACKET TO STEERING COLUMN END
181
NUT IN CASE OF SUBSEQUENT INSTALLATION
181
NUT , Replaced By: N304032005005
187
CLAMP HOSE TO CAB
193
CLAMP HOSE TO CAB
199
SCREW COVER PLATE TO BRACKET
205
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
211
INSULATING HOSE HAND PUMP
217
LOOM TIE HAND PUMP
223
SCREW , Replaced By: N000000001146
223
SCREW CLAMP MOUNTING M 6X16
229
NUT PUMP TO BRACKET
229
NUT , Replaced By: N913004006001
999
CLIP CABLE HARNESS TO ROOF RAIL
999
NUT REPAIR KIT
999
GROMMET INSTRUMENT PANEL
999
CAP STARTER PILOT, 808268
999
STEERING COLUMN BRACKET ,5 371470
999
BRACKET PRIMER CAPSULE,5 340379
999
BRACKET PUMP TO STEERING COLUMN BRACKET,5 340379
999
SCREW , Replaced By: N304017006018
999
SCREW BRACKET MOUNTING
999
SCREW COVER PLATE TO BRACKET
999
SHEET METAL SCREW , Replaced By: N914031005208
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
STRAP165 MM, UP TO CHASSIS 772045 EXCEPT FOR:500000-599999 ORDER BY THE METER
999
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
