Поз.
Артикул
Описание

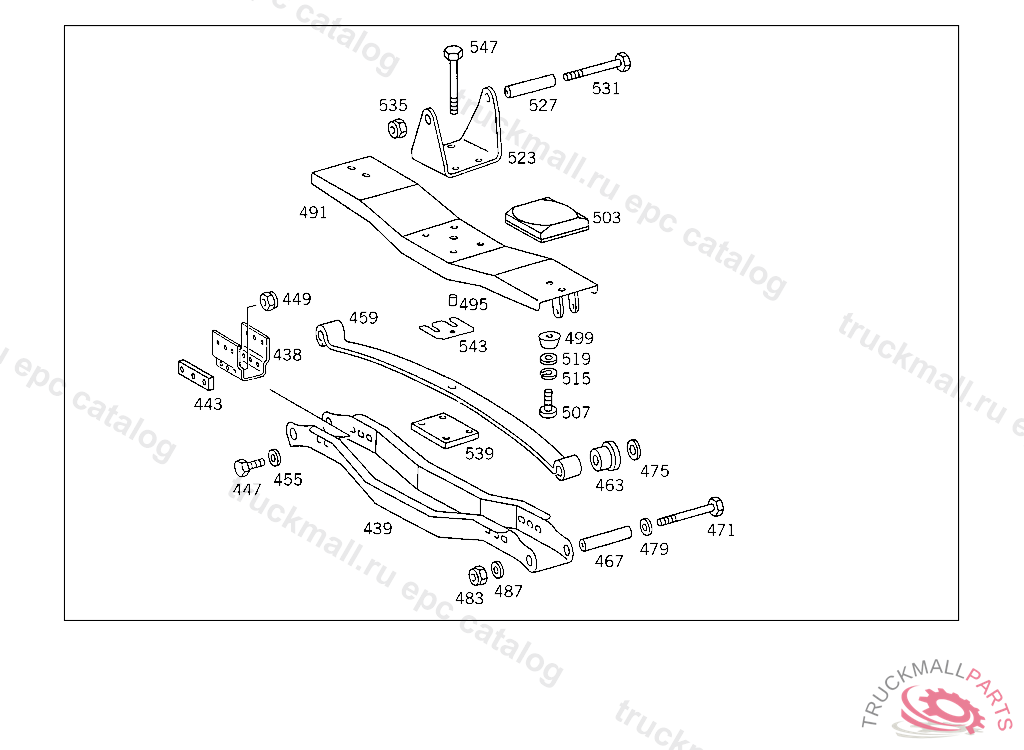

438
CLAMP CAB SUSPENSION
438
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 104455, Replaced By: A6528910130
439
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
439
STRUT , Replaced By: A6558910224, +002A6558910118
443
SHIM STRUT TO CONSOLE
447
SCREW CONSOLE TO SIDE MEMBER
447
SCREW CONSOLE TO SIDE MEMBER
447
SCREW STRUT TO CONSOLE
447
SCREW STRUT TO CONSOLE
447
SCREW STRUT TO CONSOLE
447
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
447
SCREW , Replaced By: N308676012012
447
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
447
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
449
NUT SUPPORT TO SIDE MEMBER
455
WASHER
459
SPRING (LEAF SPRING),CAB SUSPENSION
459
SPRING (LEAF SPRING),CAB SUSPENSION
463
BUSHING LEAF SPRING
467
TUBE , Replaced By: A3638910218
467
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
467
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
471
SCREW LEAF SPRING TO STRUT
471
SCREW LEAF SPRING TO STRUT
475
WASHER COVER PLATE TO FRAME
475
WASHER LEAF SPRING TO STRUT
479
WASHER LEAF SPRING TO STRUT, DISCONTINUED,PART IS NO LONGER REQUIRED
479
NUT SUPPORT TO SIDE MEMBER
483
NUT SUPPORT TO SIDE MEMBER
487
WASHER , Replaced By: N000125010532
487
WASHER RADIATOR TO RUBBER MOUNTING
491
RAIL CAB SUSPENSION,REAR
491
RAIL , Replaced By: A3878901222
491
RAIL CAB SUSPENSION,REAR
491
RAIL CAB SUSPENSION,REAR
491
RAIL , Replaced By: A6558900822
491
RAIL CAB SUSPENSION,REAR
491
RAIL , Replaced By: A6558900322
491
RAIL CAB SUSPENSION,REAR
491
RAIL , Replaced By: A6558900622
491
RAIL , Replaced By: A3978900122
491
RAIL , Replaced By: A6558900122
491
RAIL , Replaced By: A6558900422
491
RAIL CAB SUSPENSION,REAR
491
RAIL CAB SUSPENSION,REAR
495
CYLINDRICAL PIN
499
BUFFER RAIL STOP
503
MOUNTING , Replaced By: A3878910072
503
MOUNTING , Replaced By: A3878910072
503
MOUNTING , Replaced By: A3878910072
503
MOUNTING CAB SUSPENSION,REAR
503
MOUNTING CAB SUSPENSION,REAR
507
SCREW , Replaced By: N304017008021
507
SCREW BUFFER AND MOUNTING TO RAIL M 8X20
507
SCREW BUFFER AND MOUNTING TO RAIL M 8X18
507
SCREW PIPE CLAMP
515
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
519
WASHER , Replaced By: N000125008443
519
WASHER EXHAUST MUFFLER TO STRAP
523
MOUNTING CAB LOCKING MECHANISM
523
MOUNTING CAB LOCKING MECHANISM
527
SPACER TUBE BEARING BRACKET
527
SPACER TUBE BEARING BRACKET
531
SCREW SPACER TUBE TO MOUNTING
531
SCREW , Replaced By: N000960016251
531
SCREW SPACER TUBE TO MOUNTING
531
SCREW SPACER TUBE TO MOUNTING
535
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
535
NUT COMBINATION CYLINDER TO BEARING BRACKET
535
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
539
PLATE MOUNTING AND RAIL TO LEAF SPRING
543
BASE MOUNTING AND RAIL TO LEAF SPRING
547
SCREW MOUNTING AND RAIL TO LEAF SPRING
547
SCREW STRAP TO BRACKET
547
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
999
NUT BRACKET TO CROSS MEMBER
999
SCREW , Replaced By: N910105010023
999
SCREW CLAMP TO CONSOLE
999
HEXAGON HEAD BOLT. SCREW BEARING MOUNTING M 12 X 1,5 X 80
999
WASHER CONSOLE TO FRAME
999
STOP LATERAL GUIDE OF CAB
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
MOUNTING LEFT VIBRATION ABSORBER
999
BRACKET LATERAL GUIDE OF CAB
999
MOUNTING CAB, RIGHT
999
SCREW , Replaced By: N304017008034
999
SCREW RETARDER HOUSING TO TRANSMISSION CASE M 18X1.5X120
999
CLAMPING SLEEVE CAB LOCKING MECHANISM
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
