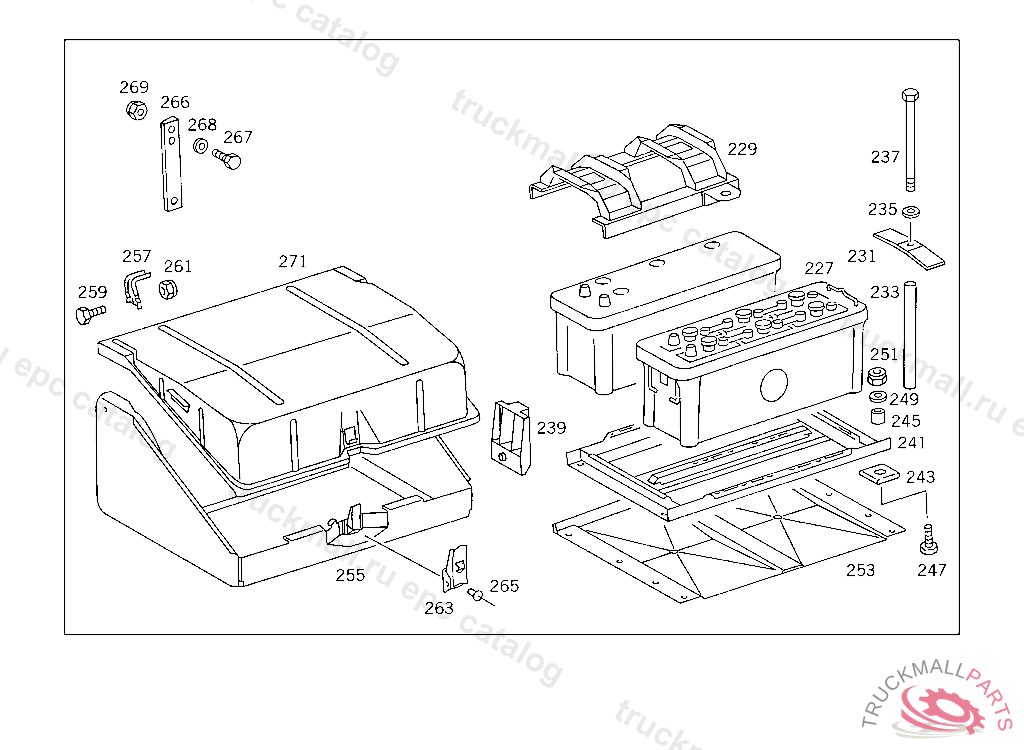

Поз.
Артикул
Описание
227
BATTERY12 V/115 AH
227
BATTERY , Replaced By: A0035418801
227
BATTERY12V/120 AH
229
MOUNTING FRAME BATTERY
231
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
233
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
235
WASHER BRACKET TO LEFT SIDE MEMBER
235
WASHER , Replaced By: N009021008213
237
SCREW BATTERY MOUNTING M 8X260X40
239
STOP BATTERY MOUNTING
241
RAIL. BATTERY BASE FRAME
243
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
245
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
247
SCREW BRACKET TO FRAME SIDE MEMBER
249
WASHER STRUT TO CROSS MEMBER
249
WASHER , Replaced By: N007349010007
251
NUT , Replaced By: N910113010000
251
NUT STRAP TO BRACKET
253
BATTERY CASE
255
BATTERY SUPPORT , TO BE ADAPTED DURING ASSEMBLY
257
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
257
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
259
SCREW LICENSE PLATE TO BRACKET
259
SCREW , Replaced By: N304017006020
261
NUT , Replaced By: N913004006001
261
NUT PUMP TO BRACKET
263
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
263
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
265
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
266
SHIM FUEL TANK TO FRAME
267
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
267
SCREW AT CROSS MEMBER
267
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
269
NUT BRACKET TO SIDE MEMBER
269
NUT , Replaced By: N910113014001
271
COVER BATTERY/APPARATUS SUPPORT
999
DIAGRAM PAPER SET100 PIECES
999
PLUG HOUSING 4-POLE, MODULE "V"
999
NUT , Replaced By: A0005421872
999
SWITCH , Replaced By: A0005455913
999
SOCKETTO 003 542 46 16,99 16
999
BOOT , Replaced By: A0005455945, +001A0035452226
999
CABLE CONNECTOR1.5-6.6 MM2
999
PLUG 37-POLE PLUG SOCKET
999
SWITCH , Replaced By: A0025456907
999
SWITCH , Replaced By: A0025457007
999
SWITCH , Replaced By: A0025457607
999
INSTRUMENT CLUSTER , Replaced By: A0035409647
999
ROUND PIN BUSHING
999
PLUG SOCKET. PIN BUSHING HOUSING , Replaced By: A0035452226, +001A0005455945
999
LENS , Replaced By: A0065451990
999
CONTROL UNIT , Replaced By: A0065456732
999
PLUG HOUSING 3-POLE
999
LENS , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0065454090
999
LENS LIMITATION OF ENGINE SPEED
999
PLUG
999
PLUG 15-POLE TRAILER PLUG SOCKET
999
RUBBER BUFFER , Replaced By: A1119871340
999
BRACKET , Replaced By: A6454310740
999
CABLE HARNESS , Replaced By: A6175401507
999
BATTERY SUPPORT , Replaced By: A6205401916
999
BATTERY SUPPORT , Replaced By: A6165400316
999
CABLE HARNESS , Replaced By: A6455400705
999
CABLE HARNESS , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 331964, Replaced By: A6455400805
999
MARKING STRIP FUSE BOX
999
BRACKET , Replaced By: A6205463543
999
BRACKET ELECTRIC CABLE TO FRAME SIDE MEMBER,5 259747
999
GROMMET LINE MOUNTING 50/45 MM
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER,5 406237
999
ELECTRIC CABLE , Replaced By: A6455401436
999
ELECTRIC CABLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 331964, Replaced By: A6455401536
999
BRACKET BATTERY CABLE TO CROSS MEMBER
999
BRACKET BATTERY CABLE TO CROSS MEMBER
999
BRACKET FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING
999
SHEET METAL SCREW , Replaced By: A0009909236
