Поз.
Артикул
Описание

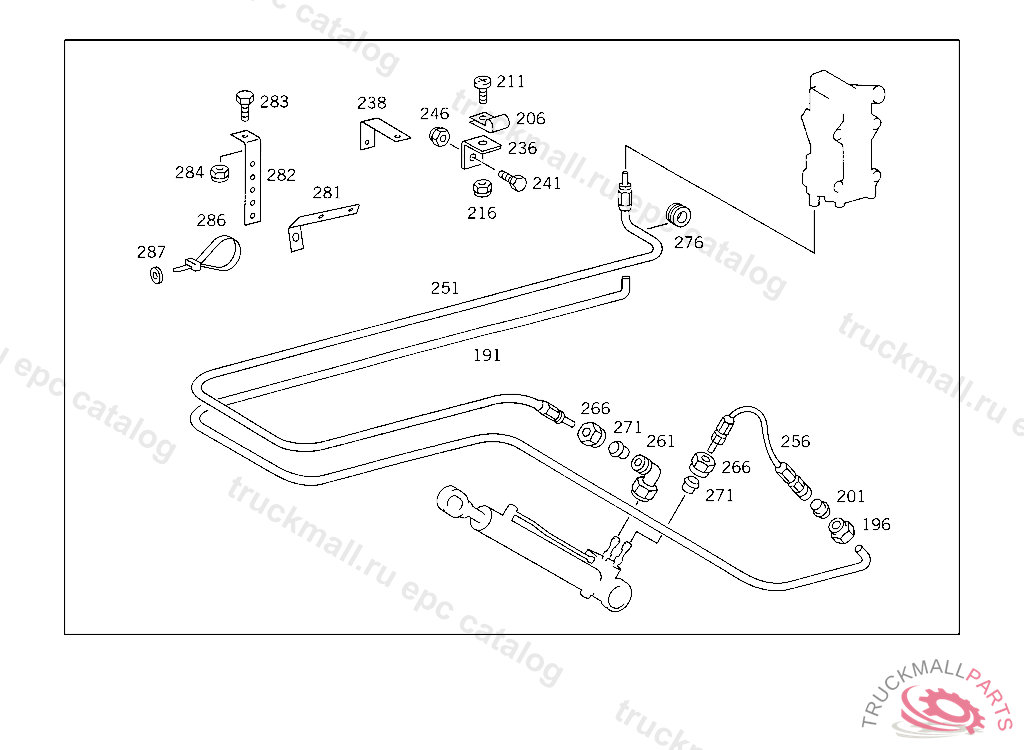

251
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
251
HOSE , Replaced By: A6555530582
261
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
266
UNION NUT
271
SEAL CONE
271
GLAND , Replaced By: A0019901667
276
GROMMET FOR PASSAGE OF LINE
276
GROMMET LINE THRU FRAME
276
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
276
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
281
BRACKET AT CAB SIDE MEMBER
282
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
283
SCREW BRACKET TO SIDE MEMBER
283
SCREW , Replaced By: N304017010002
284
NUT STRAP TO BRACKET
284
NUT , Replaced By: N910113010000
286
LOOM TIE LINE MOUNTING
286
LOOM TIE LINE MOUNTING 280 MM
287
WASHER EXHAUST MUFFLER TO STRAP
287
WASHER , Replaced By: N000125008443
999
FITTINGWEBER,TO 001 553 35 05
